BOSCH

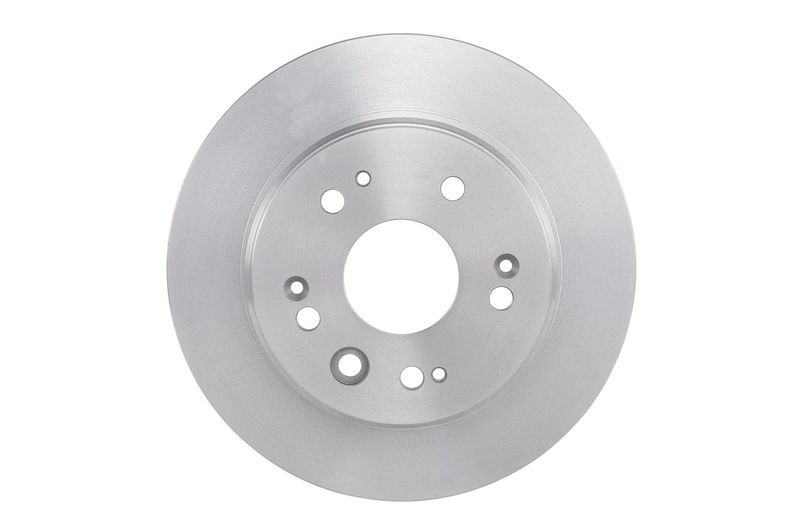

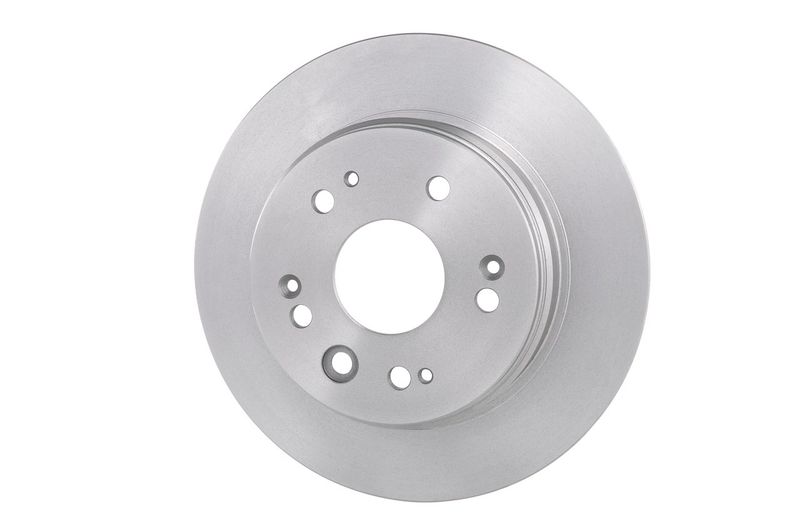

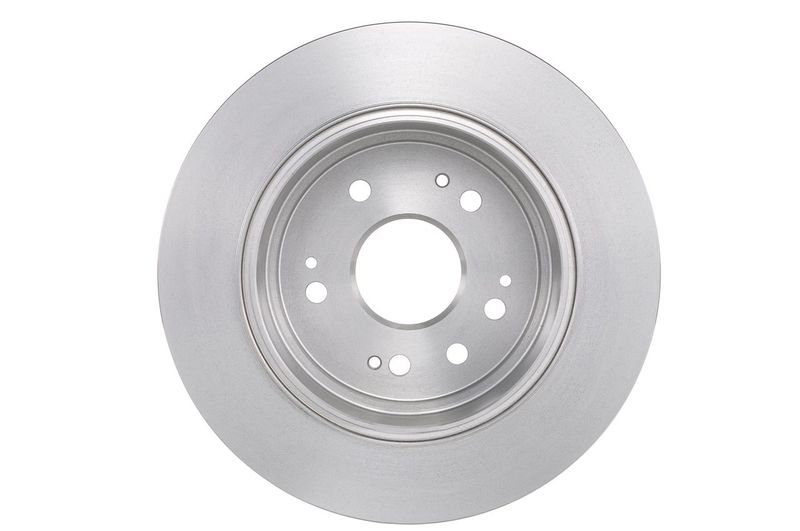

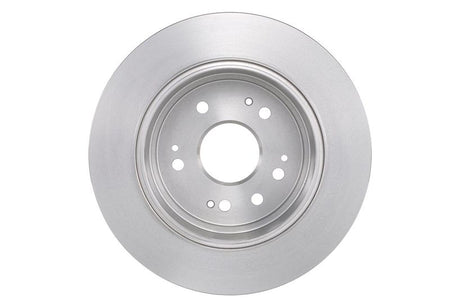

Bosch 0986479505 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479505

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£67.22 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HONDA

AVANCIER (TA)

Description	Cylinder Capacity	Horse Power	Year
2.3 4x4 (TA2)	2254 CCM	150 HP	09/1999 - 09/2003
3.0 4x4 (TA4)	2997 CCM	215 HP	09/1999 - 09/2003

CR-V Mk II (RD_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (RD5)	1998 CCM	150 HP	09/2001 - 03/2007

STREAM (RN)

Description	Cylinder Capacity	Horse Power	Year
1.8 Vtec (RN6)	1798 CCM	140 HP	From 10/2005
1.8 Vtec AWD (RN7)	1798 CCM	140 HP	10/2006 - 05/2014

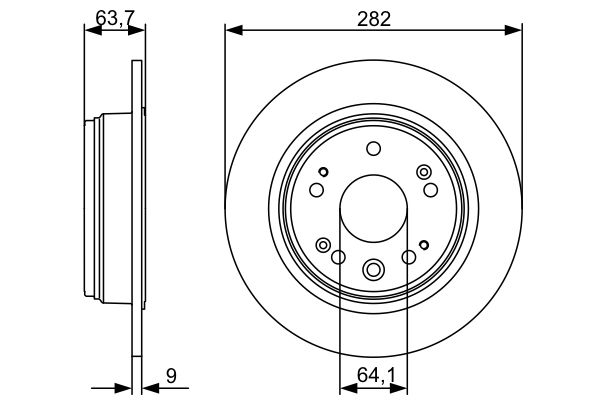

The Bosch 0986479505 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 282 mm outer diameter, 9 mm brake disc thickness, 7.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 282

Brake Disc Thickness [mm] : 9

Minimum thickness [mm] : 7.5

Height [mm] : 59

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : solid

Centering Diameter [mm] : 64.1

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.7
