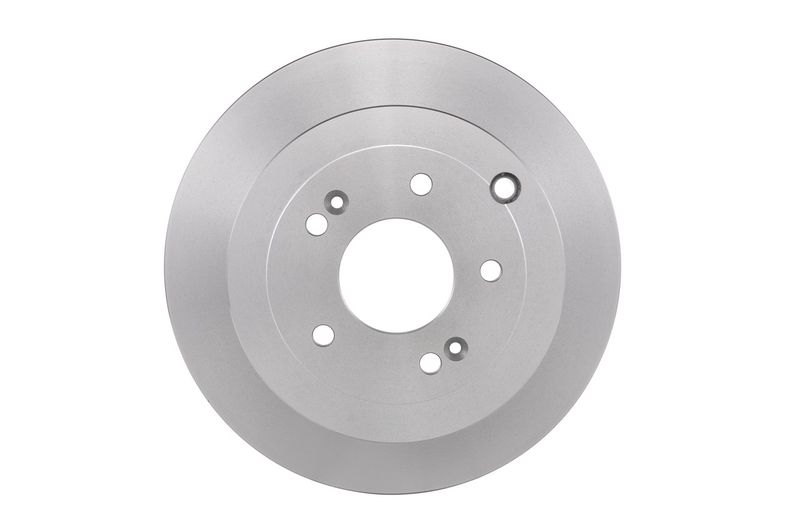

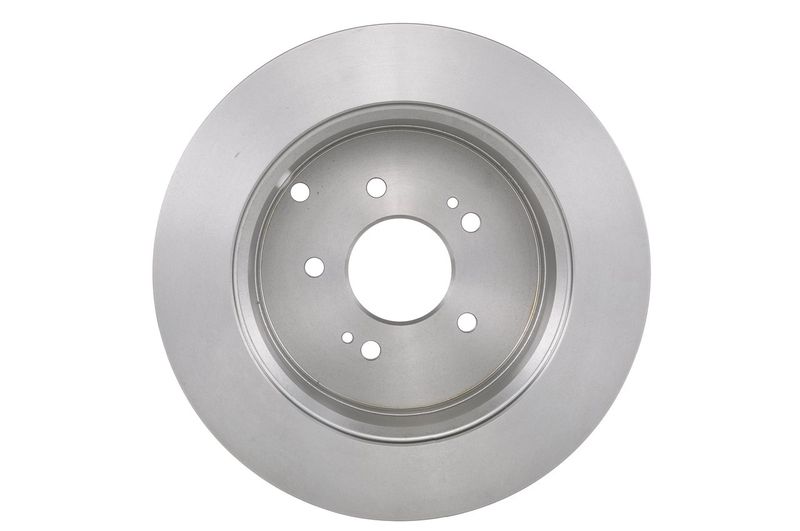

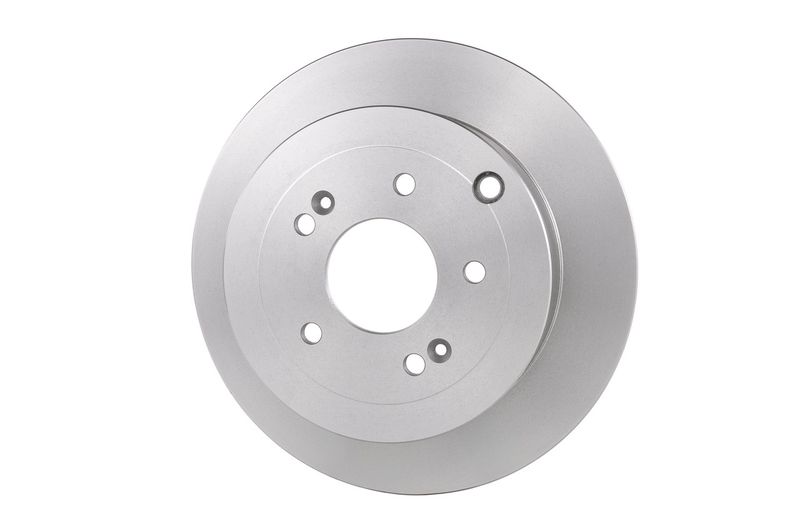

Bosch 0986479509 Brake Disc
Your selected vehicle
Regular price
£90.74
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

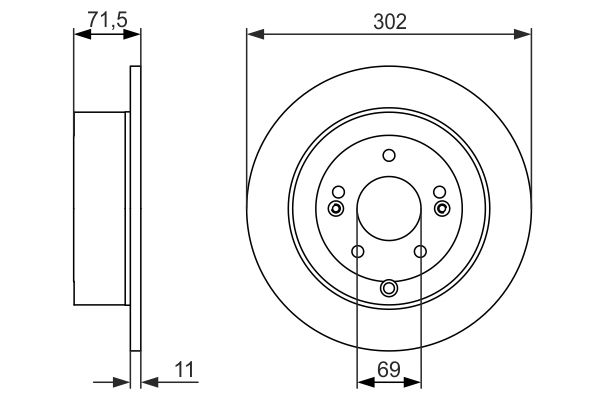

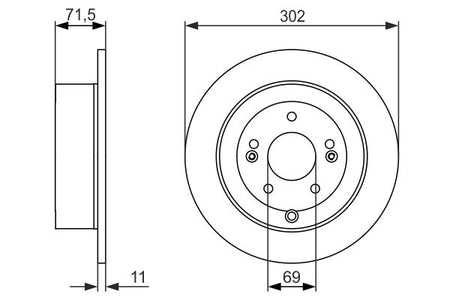

The Bosch 0986479509 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 11 mm brake disc thickness, 9.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
302
Brake Disc Thickness [mm] :
11
Minimum thickness [mm] :
9.4
Height [mm] :
71.5
Bolt Hole Circle Ø [mm] :
114.3
Brake Disc Type :
solid
Centering Diameter [mm] :
69
Number of Holes :
5
Surface :
Oiled
Supplementary Article/Supplementary Info 2 :
with bolts/screws
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
12.4
- Vendor BOSCH
- SKU 0986479509
- HYUNDAI : 58411 2B000
- BLUE PRINT : ADG043128
- BORG & BECK : BBD4672
- BOSCH : 0 986 479 C15
- BREMBO : 08.A600.10
- BREMBO : 08.A600.11
- DELPHI : BG4136
- FEBI BILSTEIN : 29351
- FTE : 9072574
- FTE : 9082264
- HELLA : 8DD 355 119-051
- MEYLE : 37-15 523 0013
- MINTEX : MDC2012
- National : NBD1543
- SKF : VKBD 91064 S2
- TEXTAR : 92166103
- TRW : DF6690
- VALEO : 672961
- BOSCH : BD1365
- BOSCH : E1 90 R - 02C0241/0210
