Bosch 0986479535 Brake Disc
Your selected vehicle
Regular price
£76.92
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

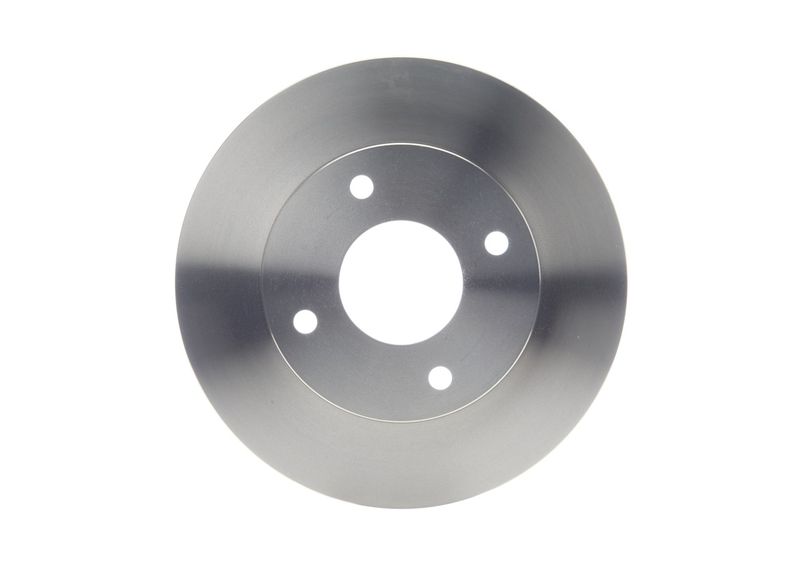

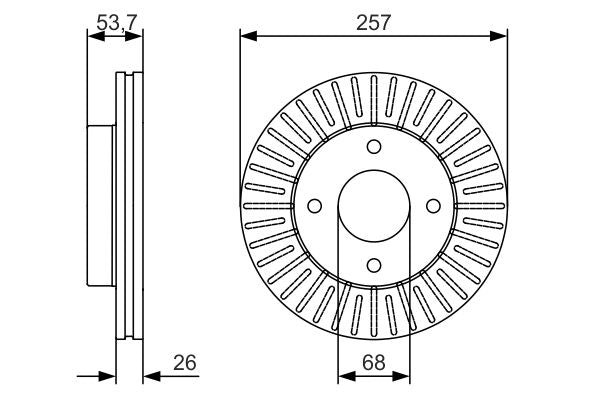

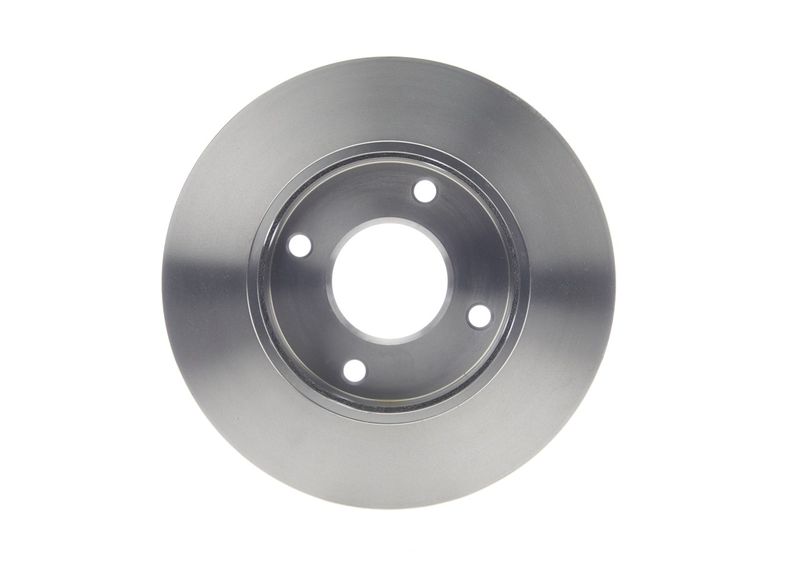

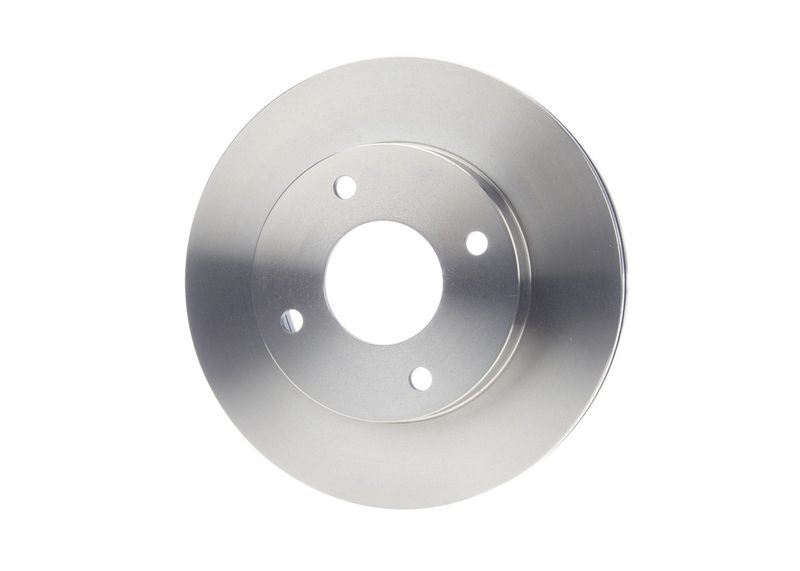

The Bosch 0986479535 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 256.5 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
256.5
Brake Disc Thickness [mm] :
26
Minimum thickness [mm] :
24
Height [mm] :
53.7
Bolt Hole Circle Ø [mm] :
114.3
Brake Disc Type :
Vented
Centering Diameter [mm] :
68
Number of Holes :
4
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
12.6
- Vendor BOSCH
- SKU 0986479535
- NISSAN : D02063LG0B 40206JX00A 402063LG0A 402063LG0B
- APEC : DSK2886
- APEC : SDK6684
- BLUE PRINT : ADN143150
- BORG & BECK : BBD5214
- BREMBO : 09.B548.10
- DELPHI : BG4651C
- Fahren : FBD6684
- FEBI BILSTEIN : 108425
- FTE : 9072521
- FTE : 9082221
- HELLA : 8DD 355 118-571
- MEYLE : 36-15 521 0059
- MINTEX : MDC2495
- NAPA : NBD5257
- National : NBD1845
- SKF : VKBD 80300 V2
- TEXTAR : 92253103
- TRW : DF6417
- VALEO : 197482
- VALEO : 673448
- BOSCH : BD1664
