BOSCH

Bosch 0986479542 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479542

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£83.05 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA

6 Saloon (GH)

Description	Cylinder Capacity	Horse Power	Year
1.8 MZR	1798 CCM	120 HP	08/2007 - 07/2013
2.0 MZR (GHEFP, GH10F)	1999 CCM	147 HP	08/2007 - 12/2012
2.5 MZR (GH5FS, GH5FP)	2488 CCM	170 HP	08/2007 - 07/2013
2.0 MZR-CD (GH14)	1998 CCM	140 HP	08/2007 - 10/2010
2.2 MZR-CD (GH10)	2184 CCM	125 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	163 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	185 HP	01/2009 - 12/2012
2.0 MZR (GHEFP)	1999 CCM	155 HP	01/2010 - 12/2012
2.2 D (GH10)	2184 CCM	129 HP	01/2010 - 12/2012
2.2 D (GH10)	2183 CCM	180 HP	01/2010 - 07/2013

6 Hatchback (GH)

Description	Cylinder Capacity	Horse Power	Year
2.2 MZR-CD (GH10)	2184 CCM	180 HP	01/2010 - 12/2012
2.2 D (GH10)	2184 CCM	129 HP	01/2010 - 12/2012
2.0 MZR (GHEFS)	1999 CCM	155 HP	01/2010 - 12/2012
1.8 MZR	1798 CCM	120 HP	08/2007 - 07/2013
2.0 MZR (GHEFS)	1999 CCM	147 HP	08/2007 - 07/2013
2.5 MZR (GH5FS)	2488 CCM	170 HP	08/2007 - 03/2013
2.0 MZR-CD (GH14)	1998 CCM	140 HP	08/2007 - 10/2009
2.2 MZR-CD (GH10)	2184 CCM	185 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	163 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	125 HP	01/2009 - 12/2012

6 Estate (GH)

Description	Cylinder Capacity	Horse Power	Year
2.0 MZR (GHEFW)	1999 CCM	155 HP	01/2010 - 07/2013
2.2 D (GH10)	2184 CCM	129 HP	01/2010 - 07/2013
2.2 MZR-CD (GH10)	2183 CCM	180 HP	01/2010 - 07/2013
1.8 MZR	1798 CCM	120 HP	02/2008 - 07/2013
2.0 MZR (GHEFW, GH10F)	1999 CCM	147 HP	12/2007 - 07/2013
2.0 MZR-CD (GH14)	1998 CCM	140 HP	12/2007 - 12/2010
2.5 MZR (GH5FW)	2488 CCM	170 HP	02/2008 - 07/2013
2.2 MZR-CD (GH10)	2184 CCM	125 HP	01/2009 - 12/2010
2.2 MZR-CD (GH10)	2184 CCM	163 HP	08/2008 - 07/2013
2.2 MZR-CD (GH10)	2184 CCM	185 HP	08/2008 - 12/2011

The Bosch 0986479542 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 299 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

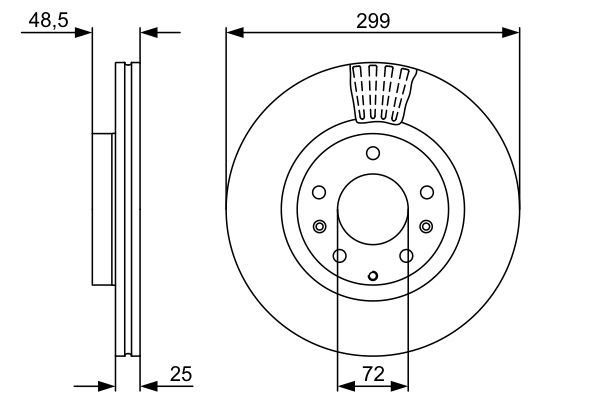

Function : Brake Disc

Outer Diameter [mm] : 299

Brake Disc Thickness [mm] : 25

Minimum thickness [mm] : 23

Height [mm] : 48.4

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 72

Number of Holes : 5

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90
