BOSCH

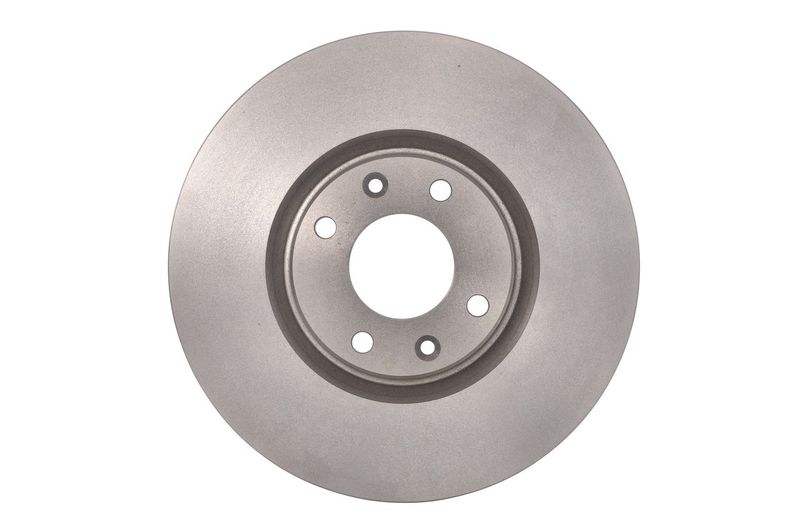

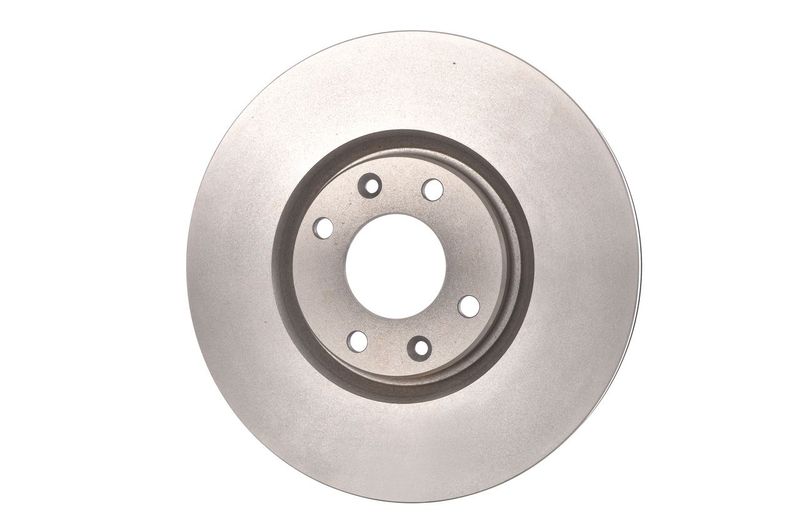

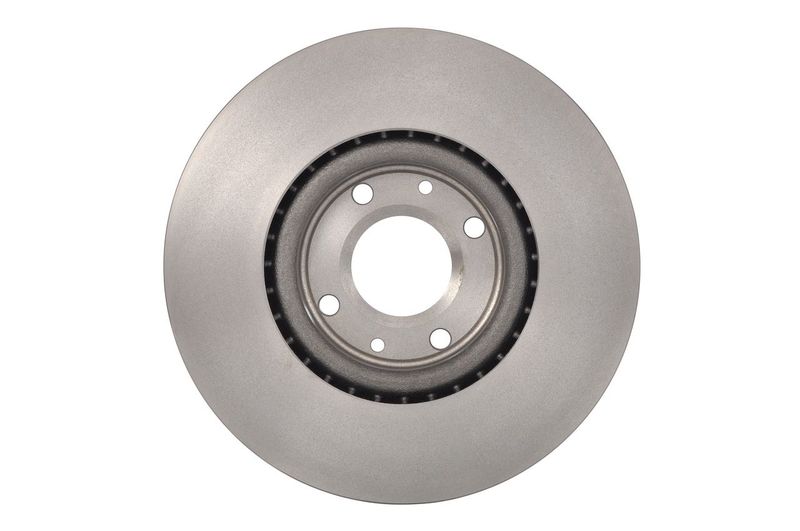

Bosch 0986479548 Brake Disc

SKU: 0986479548
Your selected vehicle
Out of stock
Out of Stock
£93.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C4 I (LC_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 136 HP 11/2004 - 07/2011
2.0 HDi 1997 CCM 140 HP 07/2008 - 07/2011
C4 Coupe (LA_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 136 HP 11/2004 - 12/2010
2.0 HDi 1997 CCM 140 HP 07/2008 - 07/2011
C4 I Hatchback Van (LR_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 136 HP 02/2005 - 12/2010
DS4 (NX_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 04/2011 - 07/2015
2.0 HDi 165 1997 CCM 163 HP 04/2011 - 07/2015
1.6 THP 165 1598 CCM 165 HP 01/2012 - 07/2015
1.6 THP 160 1598 CCM 163 HP 04/2012 - 07/2015
2.0 HDi / BlueHDi 135 1997 CCM 136 HP 09/2011 - 07/2015
2.0 BlueHDi 180 1997 CCM 180 HP 07/2014 - 07/2015
2.0 BlueHDi 150 1997 CCM 150 HP 07/2014 - 07/2015
DS5
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 11/2011 - 07/2015
1.6 THP 200 1598 CCM 200 HP 11/2011 - 07/2015
1.6 HDi 110 1560 CCM 112 HP 11/2011 - 07/2015
2.0 HDi 165 1997 CCM 163 HP 11/2011 - 07/2015
2.0 BlueHDi 180 1997 CCM 180 HP 08/2013 - 07/2015
1.6 THP 165 1598 CCM 165 HP 01/2012 - 07/2015
1.6 HDi 115 1560 CCM 114 HP 06/2012 - 07/2015
2.0 HDi 135 1997 CCM 136 HP 11/2011 - 07/2015
1.6 BlueHDi 120 1560 CCM 120 HP 07/2014 - 07/2015
2.0 BlueHDi 150 1997 CCM 150 HP 07/2014 - 07/2015
PEUGEOT
208 I (CA_, CC_)
Description Cylinder Capacity Horse Power Year
1.6 THP 1598 CCM 156 HP 03/2012 - 12/2019
1.4 HDi 1398 CCM 68 HP 03/2012 - 12/2019
1.6 HDi 1560 CCM 114 HP 03/2012 - 12/2019
1.4 VTi 1397 CCM 95 HP 03/2012 - 12/2019
1.6 VTi 1598 CCM 120 HP 03/2012 - 12/2019
1.6 GTi 1598 CCM 200 HP 08/2012 - 12/2019
308 I (4A_, 4C_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 136 HP 09/2007 - 10/2014
1.6 16V 1598 CCM 174 HP 03/2008 - 10/2014
1.6 THP 16V 1598 CCM 156 HP 10/2009 - 10/2014
308 SW I (4E_, 4H_)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 150 HP 09/2007 - 10/2014
1.6 16V 1598 CCM 174 HP 03/2008 - 10/2014
2.0 HDi 1997 CCM 136 HP 09/2007 - 12/2012
1.6 16V 1598 CCM 140 HP 09/2007 - 10/2014
2.0 HDi 1997 CCM 140 HP 09/2007 - 10/2014
2.0 HDi 1997 CCM 163 HP 06/2009 - 10/2014
1.6 THP 16V 1598 CCM 156 HP 10/2009 - 10/2014
2.0 HDi 1997 CCM 150 HP 04/2011 - 10/2014
308 CC (4B_)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 150 HP 06/2009 - 12/2014
2.0 HDi 1997 CCM 140 HP 04/2009 - 12/2012
1.6 16V 1598 CCM 156 HP 06/2009 - 12/2014
1.6 16V 1598 CCM 140 HP 06/2009 - 12/2014
2.0 HDi (4BRHRH, 4BRHRJ) 1997 CCM 136 HP 04/2009 - 12/2014
2.0 HDi 1997 CCM 163 HP 06/2009 - 12/2014
DS (CAPSA)
DS 5
Description Cylinder Capacity Horse Power Year
1.6 THP 160 1598 CCM 163 HP 09/2013 - 12/2017

The Bosch 0986479548 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

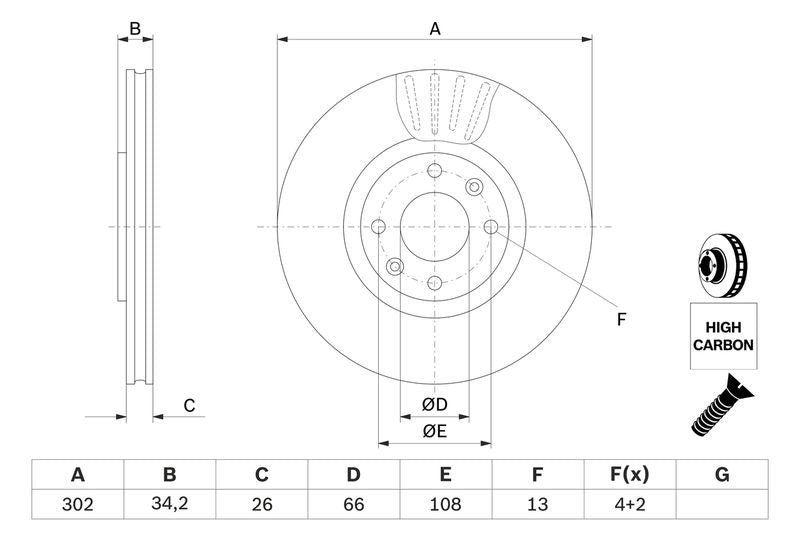

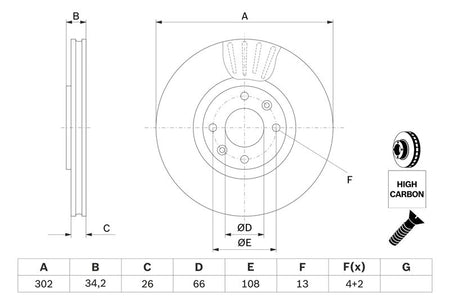

Function : Brake Disc
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 24
Height [mm] : 34.2
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 66
Number of Holes : 4
Surface : Oiled
Machining : Alloyed/High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986479548
  • Barcode 4047024615342
  • CITROËN : 4249 J8 4249 64 4249 80 4249 81 4249 86
  • PEUGEOT : 16 188 649 80 4249 J8 4249 64 4249 80 4249 81 4249 86
  • APEC : DSK2573
  • APEC : SDK6534
  • BLUE PRINT : ADP154308
  • BORG & BECK : BBD4717
  • BOSCH : 0 986 479 C72
  • BREMBO : 09.A185.11
  • BREMBO : 09.A185.14
  • BREMBO : 09.A185.1X
  • DELPHI : BG4166
  • Fahren : FBD6534
  • FEBI BILSTEIN : 108680
  • FTE : 9071272
  • FTE : 9081228
  • HELLA : 8DD 355 119-161
  • MEYLE : 11-15 521 0034
  • MEYLE : 11-15 521 0034/PD
  • MINTEX : MDC2032
  • NAPA : NBD5103
  • SKF : VKBD 80086 V1
  • TEXTAR : 92168503
  • TRW : DF4962S
  • VALEO : 197315
  • VALEO : 672763
  • BOSCH : BD1392
  • BOSCH : E1 90 R - 02 C0348/0748
