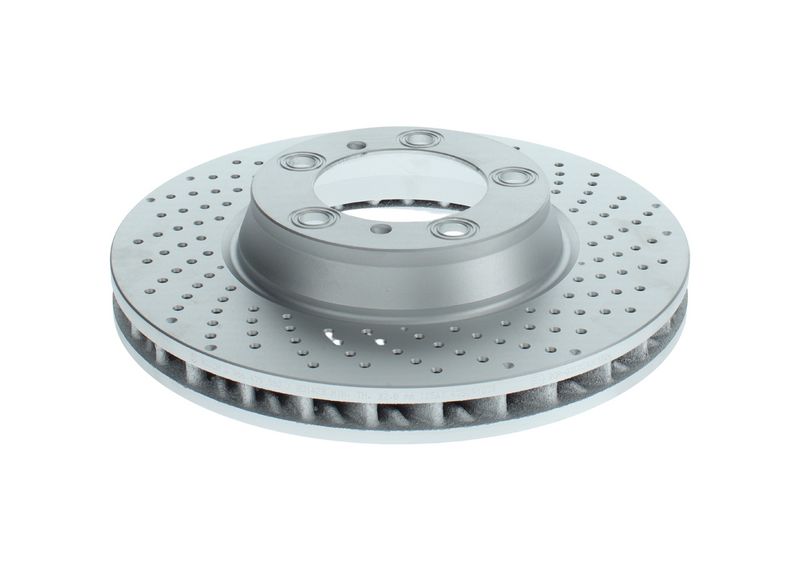

Bosch 0986479580 Brake Disc - 1

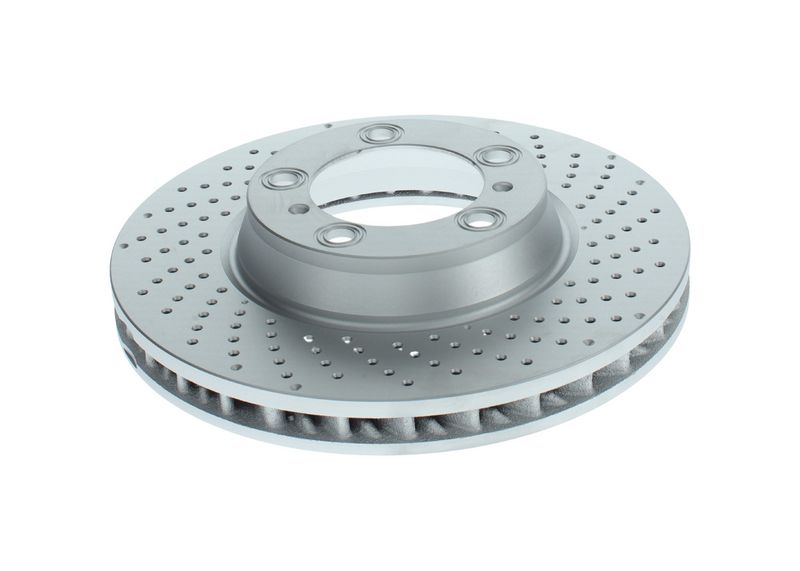

Bosch 0986479580 Brake Disc - 2

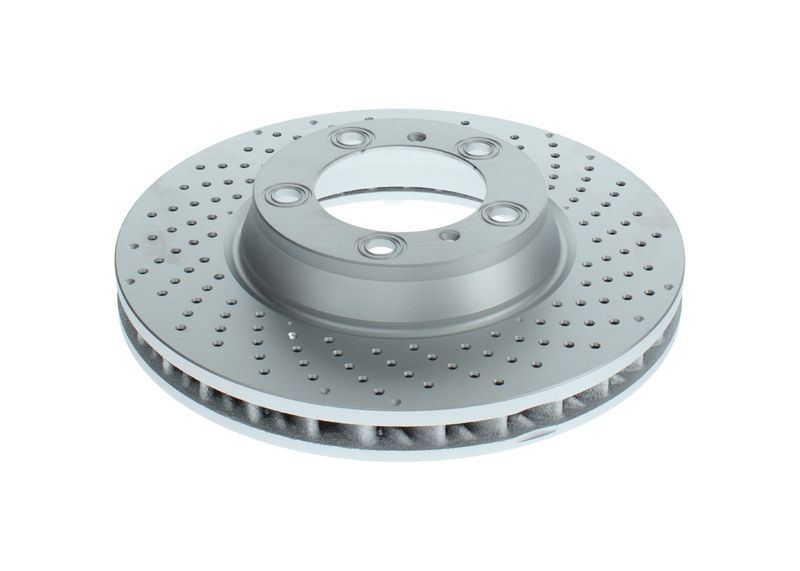

Bosch 0986479580 Brake Disc - 3

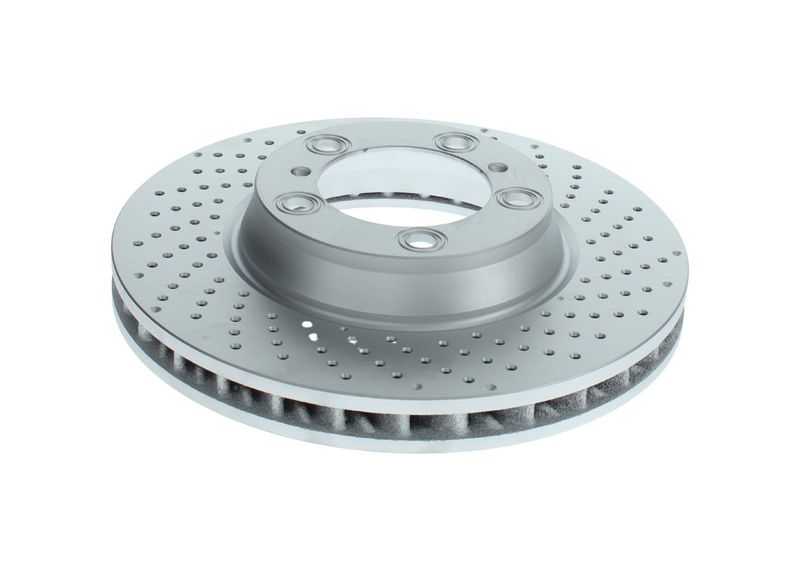

Bosch 0986479580 Brake Disc - 4

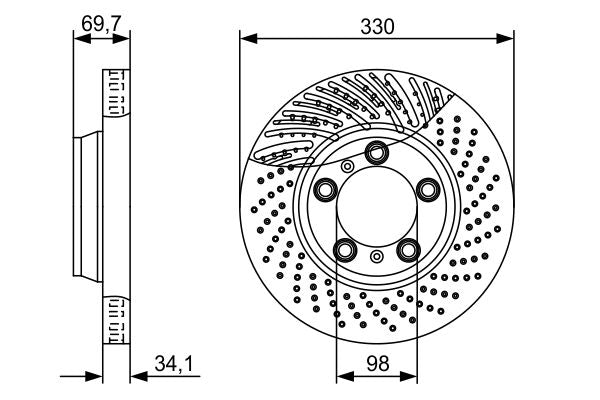

Bosch 0986479580 Brake Disc - 5

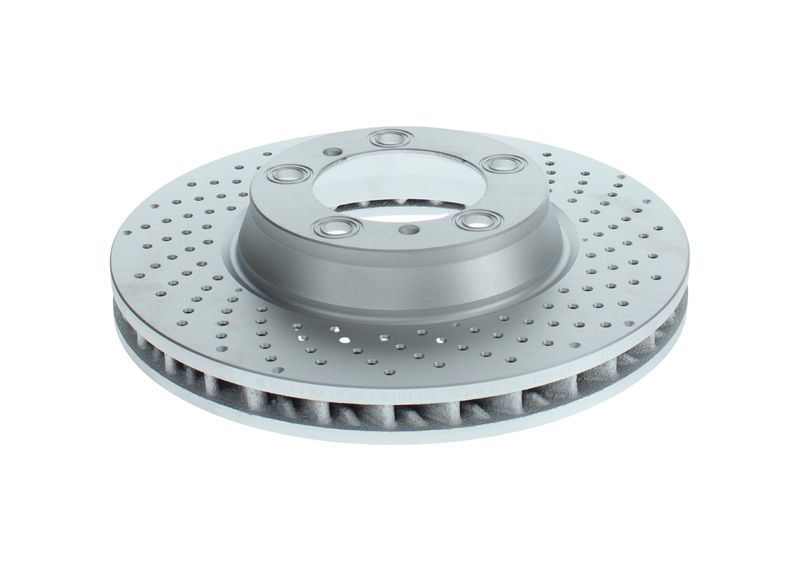

Bosch 0986479580 Brake Disc - 6
Bosch 0986479580 Brake Disc - 1
Bosch 0986479580 Brake Disc - 2
Bosch 0986479580 Brake Disc - 3
Bosch 0986479580 Brake Disc - 4
Bosch 0986479580 Brake Disc - 5
Bosch 0986479580 Brake Disc - 6
BOSCH

Bosch 0986479580 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479580

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£87.80 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

PORSCHE
911 (996)
Description Cylinder Capacity Horse Power Year
3.6 Turbo 4 3600 CCM 420 HP 06/2000 - 08/2005
3.6 Turbo 4S 3600 CCM 450 HP 02/2003 - 08/2005
3.6 Carrera 4S 3596 CCM 345 HP 02/2003 - 07/2004
911 Convertible (996)
Description Cylinder Capacity Horse Power Year
3.6 Carrera 4S 3596 CCM 345 HP 06/2002 - 08/2005
3.6 Turbo 4 3600 CCM 420 HP 10/2003 - 08/2005
3.6 Turbo 4S 3600 CCM 450 HP 10/2003 - 08/2005
3.6 S 3600 CCM 450 HP 08/2004 - 08/2005
911 (997)
Description Cylinder Capacity Horse Power Year
3.8 Carrera S / GTS 3800 CCM 408 HP 06/2009 - 12/2011
3.8 Carrera 4S / 4 GTS 3800 CCM 408 HP 06/2009 - 12/2012
3.8 Carrera S 3824 CCM 355 HP 07/2004 - 12/2008
3.8 Carrera 4S 3824 CCM 355 HP 07/2004 - 12/2008
3.8 Carrera S 3824 CCM 381 HP 08/2005 - 12/2008
3.8 Carrera 4S 3824 CCM 381 HP 08/2005 - 12/2008
911 Convertible (997)
Description Cylinder Capacity Horse Power Year
3.8 Carrera S / GTS 3800 CCM 408 HP 06/2009 - 12/2011
3.8 Carrera 4S / 4 GTS 3800 CCM 408 HP 06/2009 - 12/2012
3.8 Carrera S 3824 CCM 355 HP 04/2005 - 12/2008
3.8 Carrera 4S 3824 CCM 355 HP 04/2005 - 12/2008
3.8 Carrera 4S 3824 CCM 381 HP 08/2005 - 12/2008
3.8 Carrera S 3824 CCM 381 HP 08/2005 - 12/2008
3.8 Carrera S 3800 CCM 385 HP 06/2008 - 12/2011
3.8 Carrera 4S 3800 CCM 385 HP 06/2008 - 12/2012
911 Targa (997)
Description Cylinder Capacity Horse Power Year
3.8 Carrera 4S 3800 CCM 385 HP 10/2008 - 12/2012
3.8 Carrera 4S 3824 CCM 355 HP 07/2006 - 12/2008
3.8 Carrera 4S 3824 CCM 381 HP 11/2006 - 12/2008
3.8 Carrera 4S 3800 CCM 408 HP 08/2009 - 05/2012

The Bosch 0986479580 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 329.5 mm outer diameter, 34 mm brake disc thickness, 32 mm minimum thickness, and perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 329.5
Brake Disc Thickness [mm] : 34
Minimum thickness [mm] : 32
Height [mm] : 69.4
Bolt Hole Circle Ø [mm] : 130
Brake Disc Type : Perforated
Brake Disc Type : Vented
Centering Diameter [mm] : 98
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.4
Paired article number : 0 986 479 579
  • Vendor BOSCH
  • SKU 0986479580
  • Barcode 4047024683723
  • PORSCHE : 996 351 410 02 996 351 410 03 996 351 410 04
  • APEC : DSK560
  • BORG & BECK : BBD6045S
  • BREMBO : 09.C093.11
  • BREMBO : 09.C877.11
  • BREMBO : 09.C877.1S
  • DELPHI : BG9095C
  • FTE : 9082666
  • HELLA : 8DD 355 128-571
  • MEYLE : 483 521 0016/PD
  • MINTEX : MDC2354R
  • National : NBD2338
  • TEXTAR : 92150005
  • TRW : DF6266S
  • VALEO : 673614
  • BOSCH : BD1423
  • BOSCH : E1 90R-02C0593/1824
