BOSCH

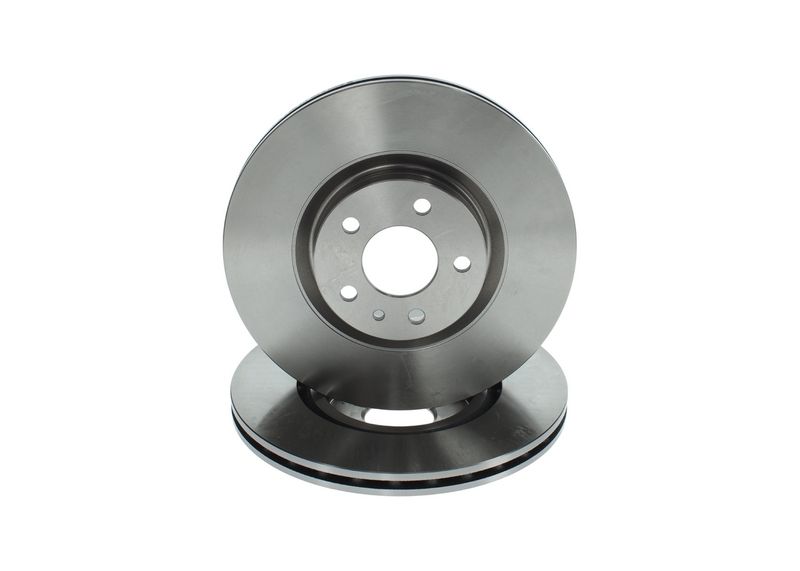

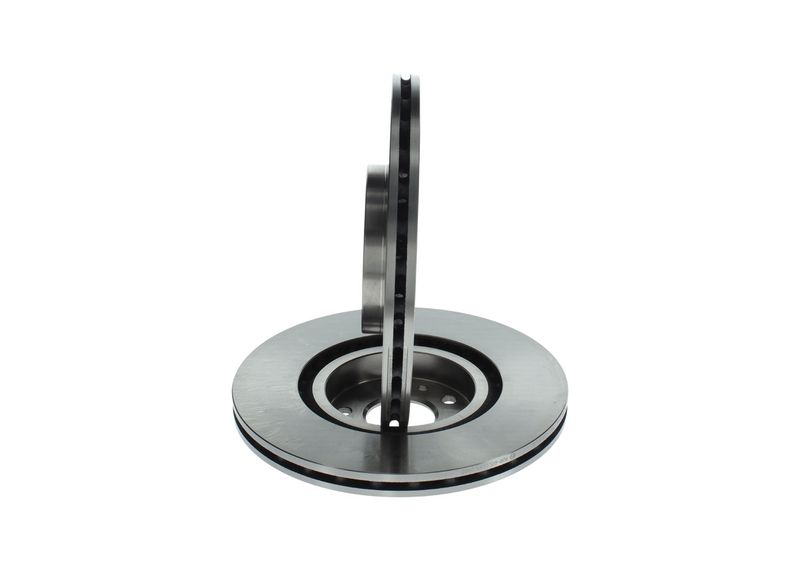

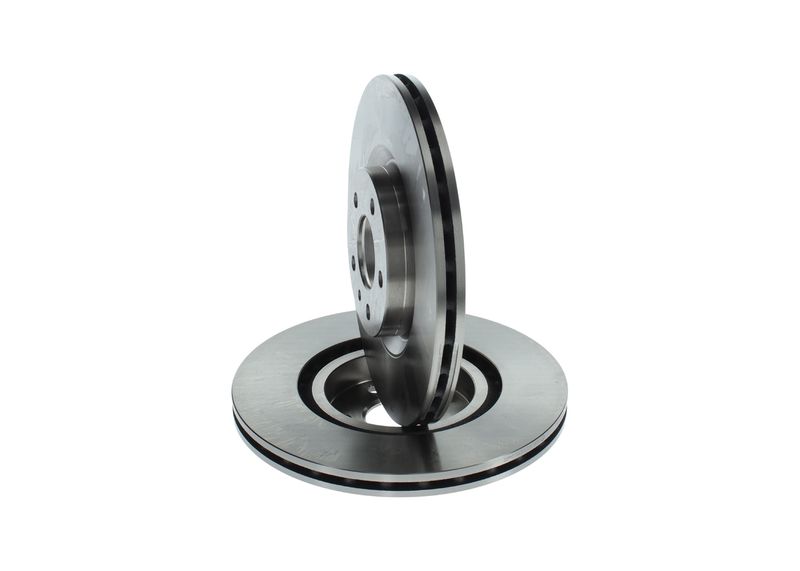

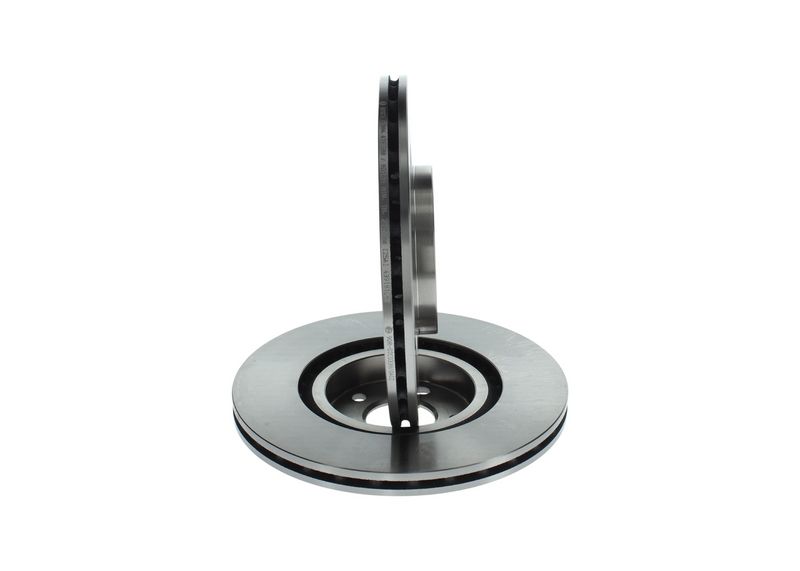

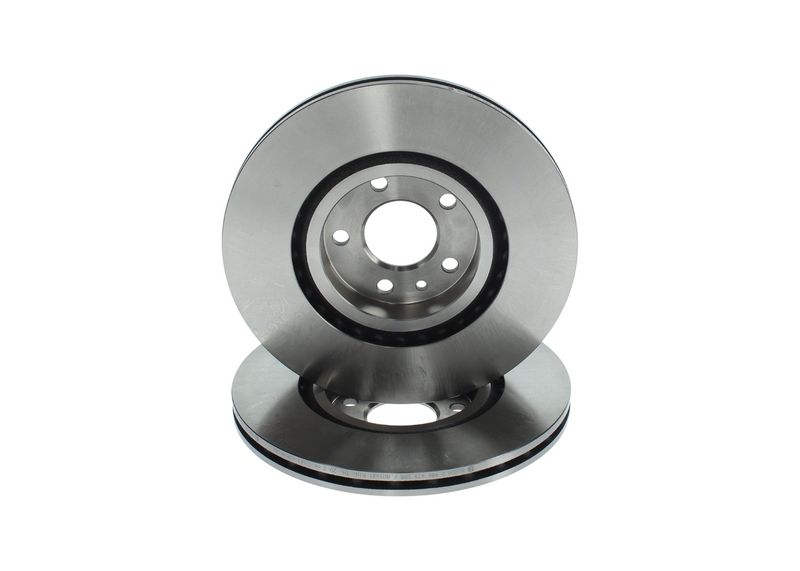

Bosch 0986479588 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479588

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£77.91 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

ALFA ROMEO

GTV (916_)

Description	Cylinder Capacity	Horse Power	Year
2.0 T.SPARK 16V (916.C2__, 916C2C00)	1970 CCM	150 HP	06/1995 - 10/2005
1.8 16V (916C3)	1747 CCM	144 HP	05/1998 - 10/2005
2.0 T.SPARK 16V (916C2C)	1970 CCM	155 HP	09/1997 - 03/2003
2.0 JTS (916CXA00)	1970 CCM	165 HP	04/2003 - 10/2005

SPIDER (916_)

Description	Cylinder Capacity	Horse Power	Year
2.0 T.SPARK 16V (916S2C00)	1970 CCM	150 HP	06/1995 - 04/2005
1.8 16V (916S3)	1747 CCM	144 HP	05/1998 - 04/2005
2.0 T.SPARK 16V (916S2B)	1970 CCM	155 HP	05/1998 - 08/2000
2.0 JTS (916SXA00)	1970 CCM	165 HP	04/2003 - 04/2005

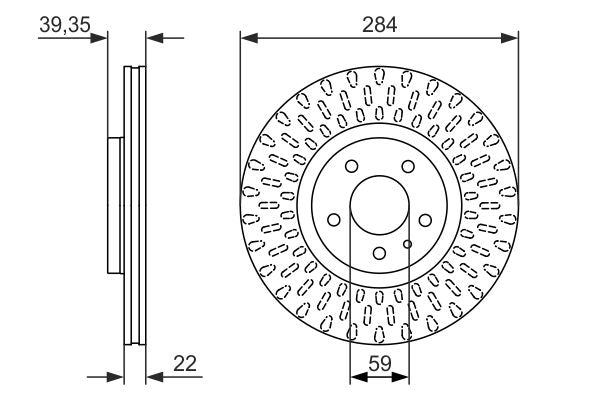

The Bosch 0986479588 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 284 mm outer diameter, 22 mm brake disc thickness, 20.2 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 284

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 20.2

Height [mm] : 39.3

Bolt Hole Circle Ø [mm] : 98

Brake Disc Type : Vented

Centering Diameter [mm] : 59.02

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13
