BOSCH

Bosch 0986479603 Brake Disc

SKU: 0986479603
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£61.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
ECLIPSE Mk II (D3_A)
Description Cylinder Capacity Horse Power Year
2000 GS 16V (D32A) 1997 CCM 146 HP 12/1995 - 04/1999
LANCER VII (CS_A, CT_A)
Description Cylinder Capacity Horse Power Year
2.0 (CS9A) 1997 CCM 135 HP 12/2003 - 12/2013
LANCER VII Estate (CS_W, CT_W)
Description Cylinder Capacity Horse Power Year
1.6 1584 CCM 98 HP 09/2003 - 10/2008
2.0 (CS9W) 1997 CCM 135 HP 09/2003 - 12/2007
OUTLANDER I (CU_W)
Description Cylinder Capacity Horse Power Year
2.0 4WD (CU2W) 1997 CCM 136 HP 05/2003 - 10/2006
2.4 4WD (CU5W) 2378 CCM 160 HP 11/2003 - 09/2007
2.0 Turbo-R 4WD (CU2W) 1997 CCM 241 HP 01/2002 - 10/2006
2.4 4WD (CU4W) 2351 CCM 139 HP 05/2003 - 10/2006
2.4 4WD (CU5W) 2378 CCM 162 HP 05/2003 - 09/2007
2.0 (CU2W) 1997 CCM 136 HP 05/2003 - 10/2006
2.4 HDD Mivec (CU5W) 2378 CCM 160 HP 03/2001 - 12/2006
RVR MPV (N1_W, N2_W)
Description Cylinder Capacity Horse Power Year
2.0 16V (N13W) 1997 CCM 133 HP 06/1997 - 08/1999
SPACE RUNNER (N6_W, N7_W)
Description Cylinder Capacity Horse Power Year
2.4 GDI (N64W) 2351 CCM 150 HP 08/1999 - 01/2003
2.0 (N63W) 1997 CCM 136 HP 08/1999 - 08/2002
2.0 (N63W) 1997 CCM 133 HP 05/2000 - 08/2002
2.4 GDI (N64W) 2351 CCM 147 HP 08/1999 - 08/2002

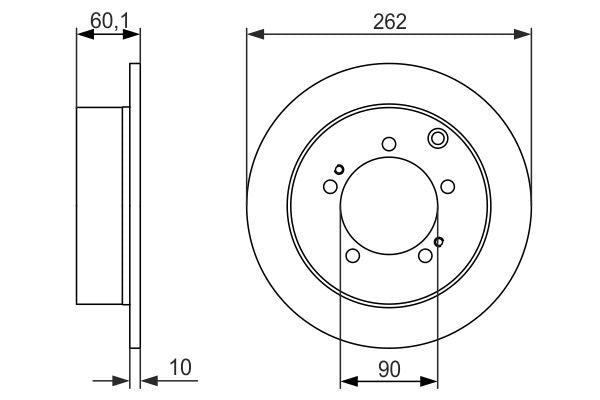

The Bosch 0986479603 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 262 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 262
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.4
Height [mm] : 60.1
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 90
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.8
  • Vendor BOSCH
  • SKU 0986479603
  • Barcode 4047024685826
  • MITSUBISHI : MB895200 MB928716
  • BLUE PRINT : ADC44396
  • BORG & BECK : BBD4556
  • BORG & BECK : BBD4644
  • BREMBO : 08.8316.20
  • DELPHI : BG4037
  • FEBI BILSTEIN : 108526
  • FTE : 9072295
  • FTE : 9082220
  • HELLA : 8DD 355 118-661
  • MEYLE : 32-15 523 0016
  • MEYLE : 32-15 523 0016/PD
  • MINTEX : MDC2307
  • SKF : VKBD 91178 S2
  • TEXTAR : 92136103
  • TRW : DF4845
  • VALEO : 197603
  • BOSCH : BD1446
