BOSCH

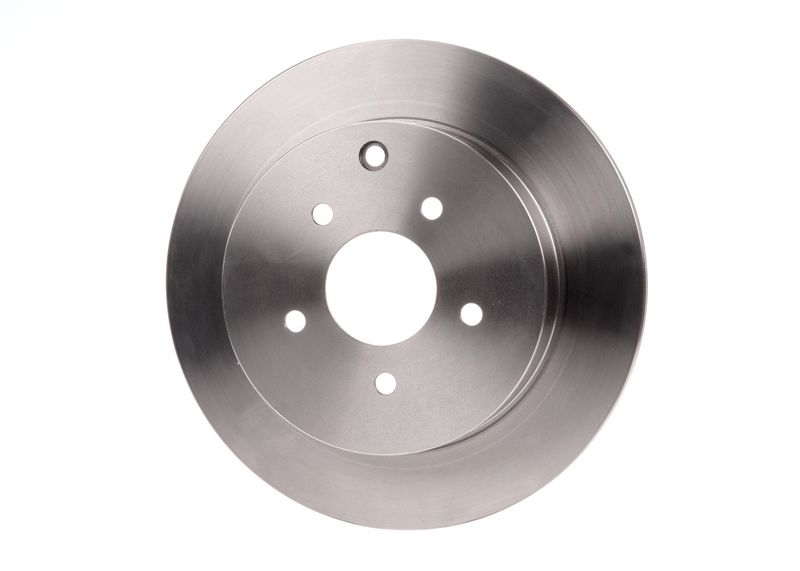

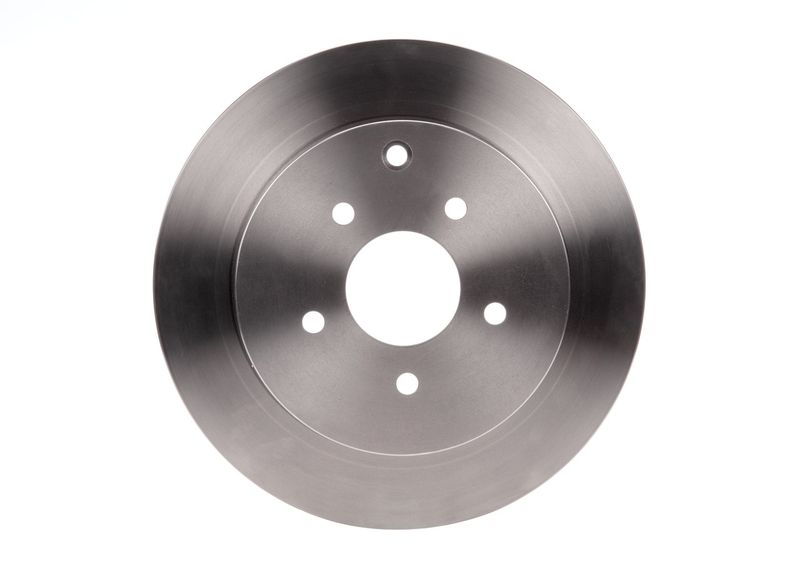

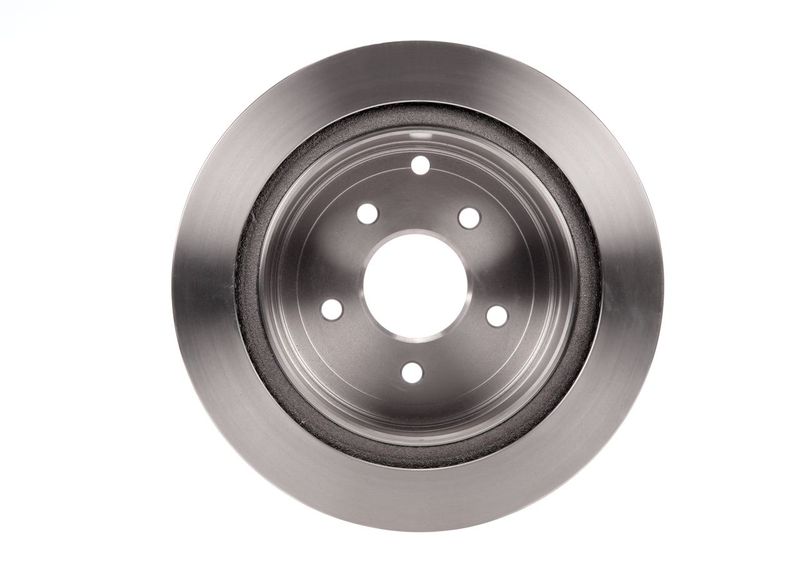

Bosch 0986479606 Brake Disc

SKU: 0986479606
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£72.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
MURANO I (Z50)
Description Cylinder Capacity Horse Power Year
3.5 4x4 3498 CCM 234 HP 08/2003 - 09/2008
3.5 4x4 3498 CCM 245 HP 11/2004 - 06/2008
MURANO II (Z51)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4x4 2488 CCM 190 HP 01/2010 - 09/2014
3.5 4x4 3498 CCM 256 HP 10/2008 - 09/2014
3.5 3498 CCM 265 HP 11/2007 - 09/2014
3.5 4x4 3498 CCM 265 HP 11/2007 - 09/2014
3.5 4x4 3498 CCM 249 HP 12/2010 - 09/2014
INFINITI
FX
Description Cylinder Capacity Horse Power Year
35 All-wheel Drive 3498 CCM 280 HP 01/2003 - 12/2008
45 All-wheel Drive 4494 CCM 316 HP 01/2003 - 12/2008
M (Y51)
Description Cylinder Capacity Horse Power Year
35h 3498 CCM 364 HP From 04/2011
37 3696 CCM 320 HP From 03/2010
30d 2993 CCM 238 HP From 03/2010
Q50
Description Cylinder Capacity Horse Power Year
50 D 2143 CCM 170 HP From 04/2013
50 Hybrid AWD 3498 CCM 364 HP From 04/2013
50 Hybrid 3498 CCM 364 HP From 04/2013
2.0 T 1991 CCM 211 HP From 04/2014
50 Hybrid AWD 3498 CCM 355 HP From 06/2013
50 Hybrid 3498 CCM 355 HP From 06/2013
Q60 Coupe
Description Cylinder Capacity Horse Power Year
2.0 T 1991 CCM 211 HP From 09/2016
Q70 (Y51)
Description Cylinder Capacity Horse Power Year
3.7 3696 CCM 320 HP From 03/2013
3.0 2993 CCM 238 HP From 03/2013
3.5 Hybrid 3498 CCM 364 HP From 03/2013
2.2 D 2143 CCM 170 HP From 10/2014

The Bosch 0986479606 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 307.8 mm outer diameter, 16 mm brake disc thickness, 14 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

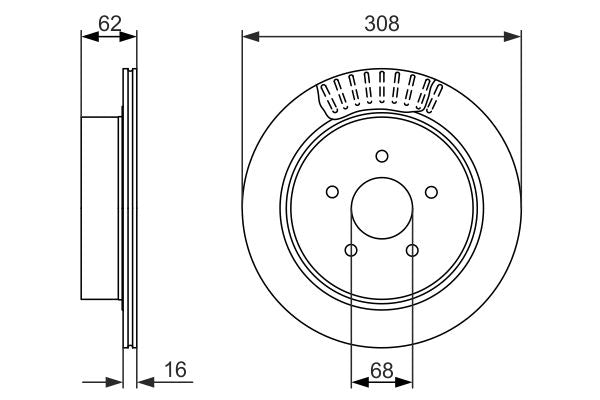

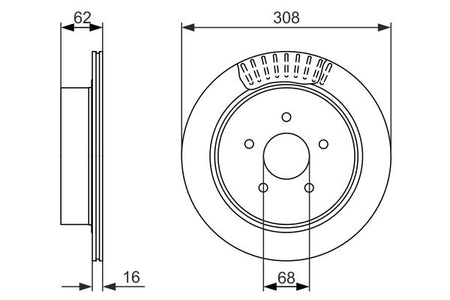

Function : Brake Disc
Outer Diameter [mm] : 307.8
Brake Disc Thickness [mm] : 16
Minimum thickness [mm] : 14
Height [mm] : 62
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
Bore Diameter up to [mm] : 12.8
  • Vendor BOSCH
  • SKU 0986479606
  • Barcode 4047024685857
  • NISSAN : 43206 CA000
  • INFINITI : 43206 CA000
  • APEC : DSK2568
  • BLUE PRINT : ADN143122
  • BORG & BECK : BBD4573
  • BREMBO : 09.B265.10
  • BREMBO : 09.B265.11
  • DELPHI : BG4041
  • DELPHI : BG4041C
  • FEBI BILSTEIN : 170743
  • FTE : 9072482
  • FTE : 9082211
  • HELLA : 8DD 355 118-811
  • MEYLE : 36-15 523 0051/PD
  • MINTEX : MDC1820
  • NAPA : NBD5779
  • SKF : VKBD 90677 V2
  • TEXTAR : 92149303
  • TRW : DF4353
  • VALEO : 197595
  • VALEO : 673469
  • BOSCH : BD1449
