BOSCH

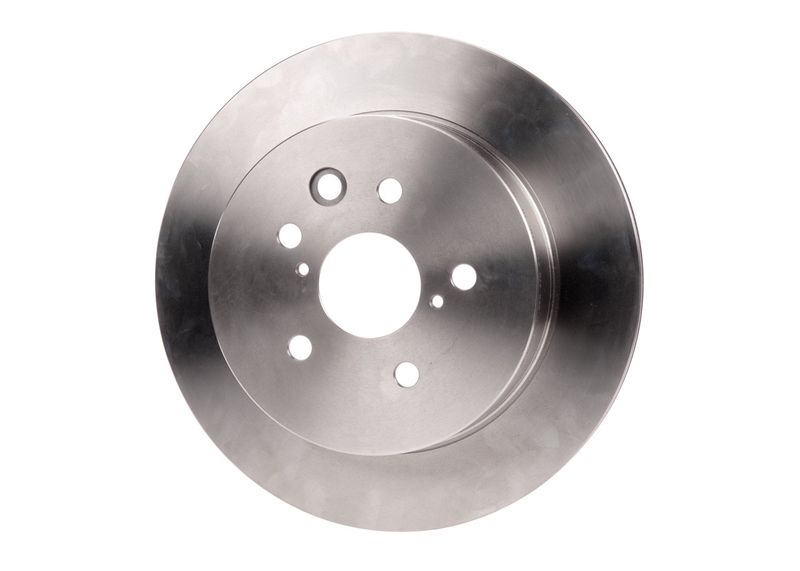

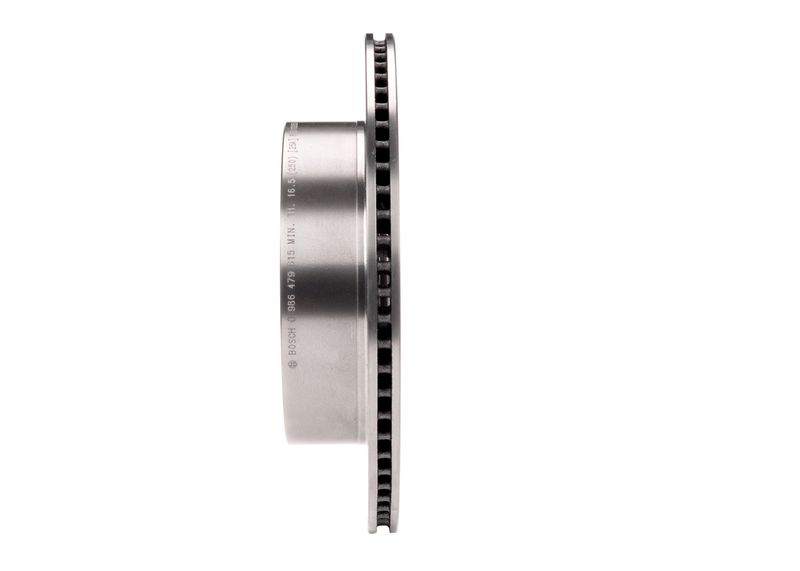

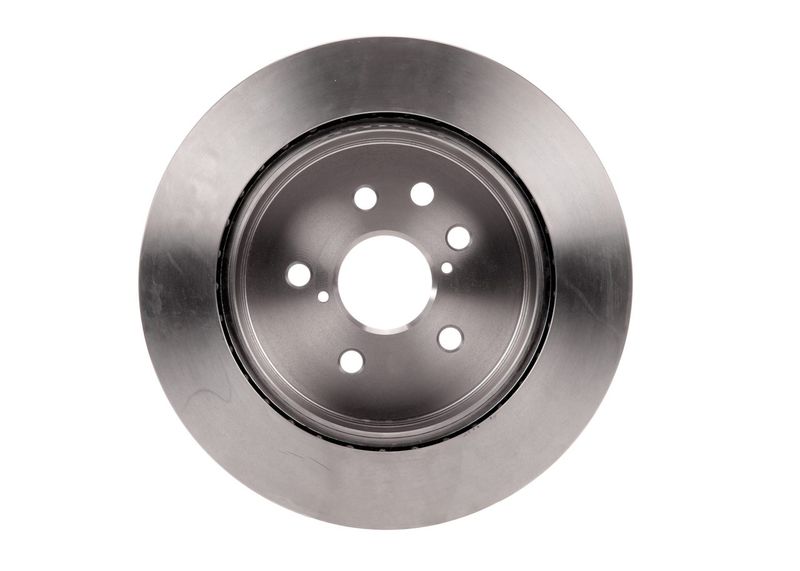

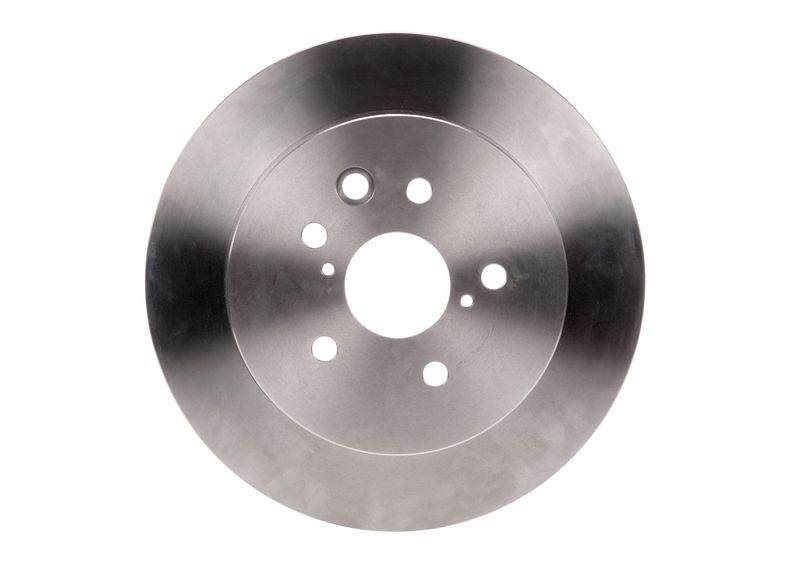

Bosch 0986479615 Brake Disc

SKU: 0986479615
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£96.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LEXUS
GS (_S19_)
Description Cylinder Capacity Horse Power Year
450h (GRS191_, GWS191_, GRS191R, GWS191R) 3456 CCM 345 HP 02/2006 - 11/2011
300 (GRS190_, GRS190R) 2995 CCM 249 HP 04/2005 - 11/2011
430 (UZS190_, UZS190R) 4293 CCM 283 HP 04/2005 - 11/2011
460 (URS190_, URS190R) 4608 CCM 347 HP 09/2007 - 11/2011
GS (_L1_)
Description Cylinder Capacity Horse Power Year
450h (GWL10_, GWL10R) 3456 CCM 345 HP 03/2012 - 09/2018
250 (GRL11_, GRL11R) 2499 CCM 209 HP From 01/2012
450h (GWL10_, GWL10, GWL10R) 3456 CCM 345 HP 03/2012 - 09/2018
300h (AWL10_, AWL10R) 2494 CCM 223 HP From 10/2013
200t (ARL10_, ARL10R) 1998 CCM 245 HP From 09/2015
IS II (_E2_)
Description Cylinder Capacity Horse Power Year
200d (ALE20_, ALE20R) 2231 CCM 150 HP 07/2010 - 07/2012
250 (GSE20) 2499 CCM 208 HP 08/2005 - 03/2013
220d (ALE20) 2231 CCM 177 HP 08/2005 - 07/2012
IS C (GSE2_)
Description Cylinder Capacity Horse Power Year
250 (GSE20) 2499 CCM 208 HP 04/2009 - 06/2015
RC (_C1_)
Description Cylinder Capacity Horse Power Year
300h (AVC10_, AVC10R) 2494 CCM 223 HP From 09/2014
2.5 300h (AVC10) 2494 CCM 220 HP From 09/2014

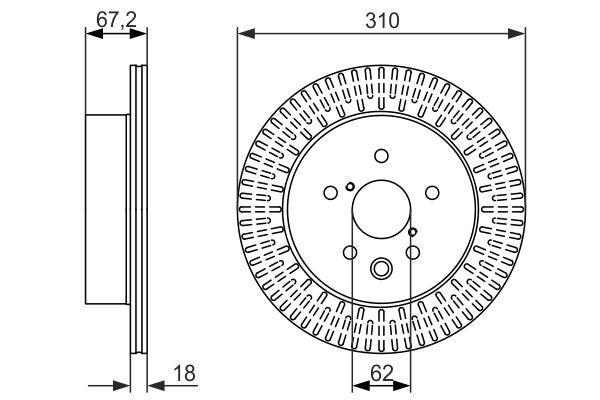

The Bosch 0986479615 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 310 mm outer diameter, 18 mm brake disc thickness, 16.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 310
Brake Disc Thickness [mm] : 18
Minimum thickness [mm] : 16.5
Height [mm] : 67.3
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.4
  • Vendor BOSCH
  • SKU 0986479615
  • Barcode 4047024685925
  • TOYOTA : 42431 30290 42431 30330
  • LEXUS : 4243130290 4243130310
  • APEC : DSK2558
  • APEC : SDK6525
  • BLUE PRINT : ADT343203
  • BORG & BECK : BBD4535
  • BREMBO : 09.C930.11
  • DELPHI : BG4024
  • Fahren : FBD6525
  • FEBI BILSTEIN : 108546
  • FTE : 9072806
  • FTE : 9082777
  • HELLA : 8DD 355 112-881
  • MEYLE : 30-15 523 0036
  • MINTEX : MDC2250
  • NAPA : NBD5616
  • National : NBD1695
  • SKF : VKBD 90386 V2
  • TEXTAR : 92148003
  • TRW : DF6063
  • VALEO : 672686
  • VALEO : 672817
  • BOSCH : BD1458
