BOSCH

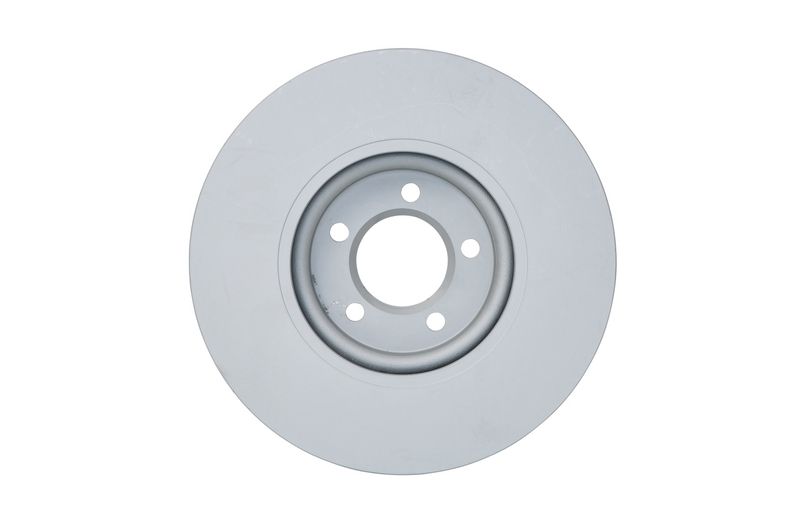

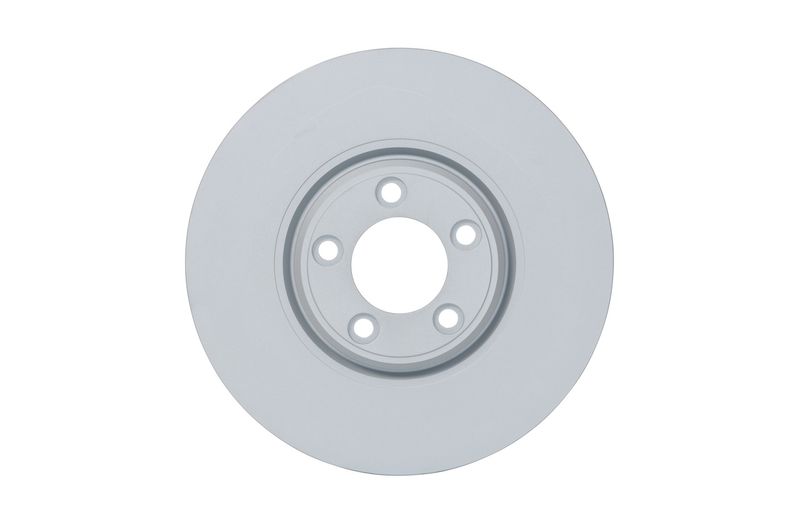

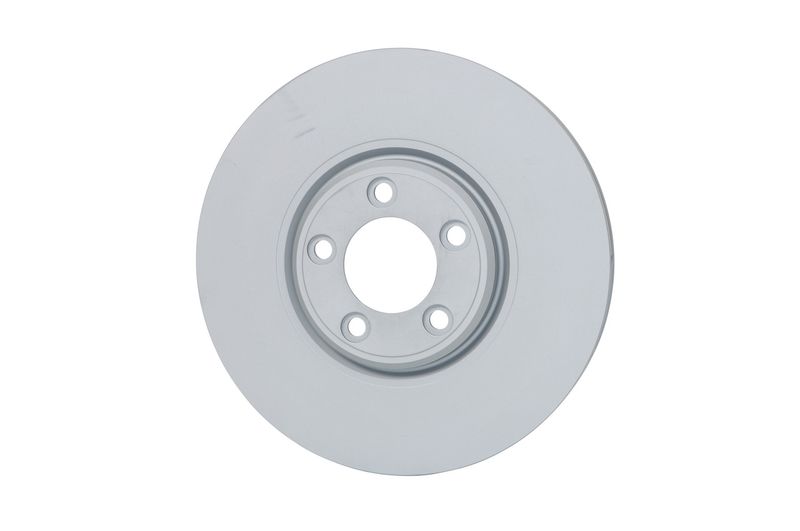

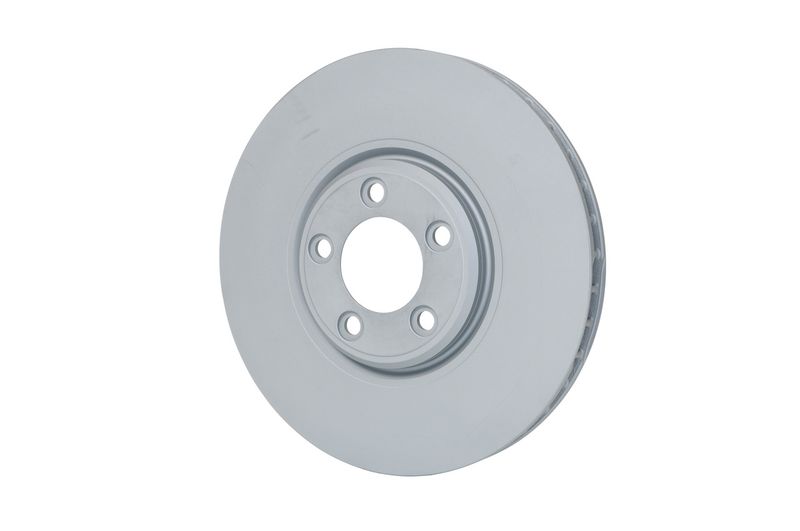

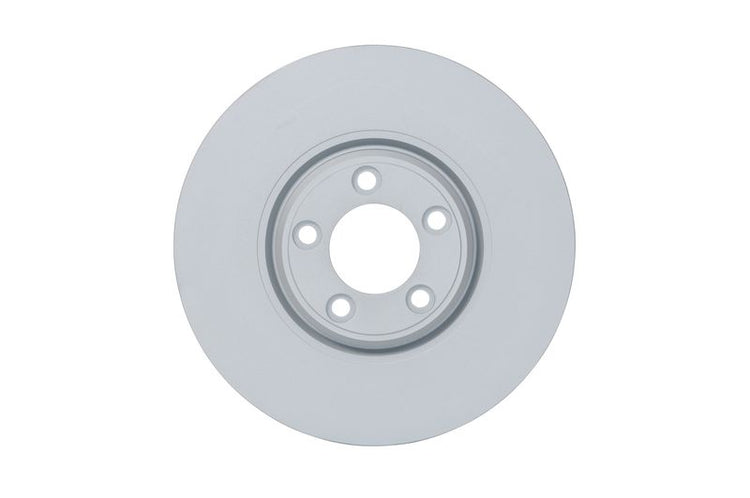

Bosch 0986479627 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479627

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£66.09 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

JAGUAR

S-TYPE II (X200)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6	2967 CCM	238 HP	01/1999 - 10/2007
4.0 V8	3996 CCM	276 HP	01/1999 - 04/2002
2.5 V6	2497 CCM	200 HP	04/2002 - 10/2007
4.2 V8	4196 CCM	298 HP	04/2002 - 10/2007
2.7 D	2720 CCM	207 HP	06/2004 - 10/2007

XJ (X350, X358)

Description	Cylinder Capacity	Horse Power	Year
3.0	2967 CCM	238 HP	05/2003 - 03/2009
3.6	3555 CCM	258 HP	05/2003 - 03/2009
4.2	4196 CCM	298 HP	05/2003 - 03/2009
3.0	2967 CCM	243 HP	04/2004 - 01/2007

The Bosch 0986479627 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 30 mm brake disc thickness, 28.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 320

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 28.4

Height [mm] : 43.1

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 71

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90
