BOSCH

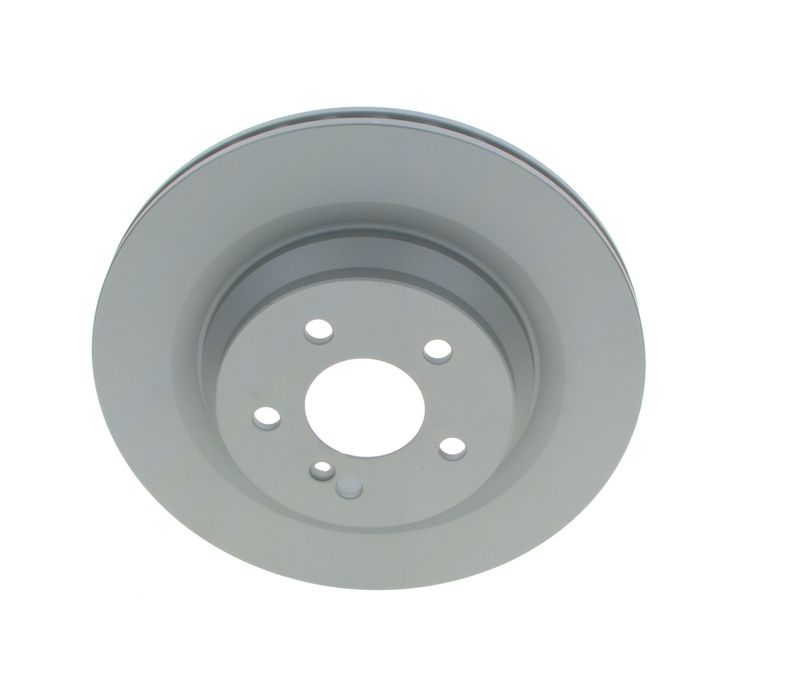

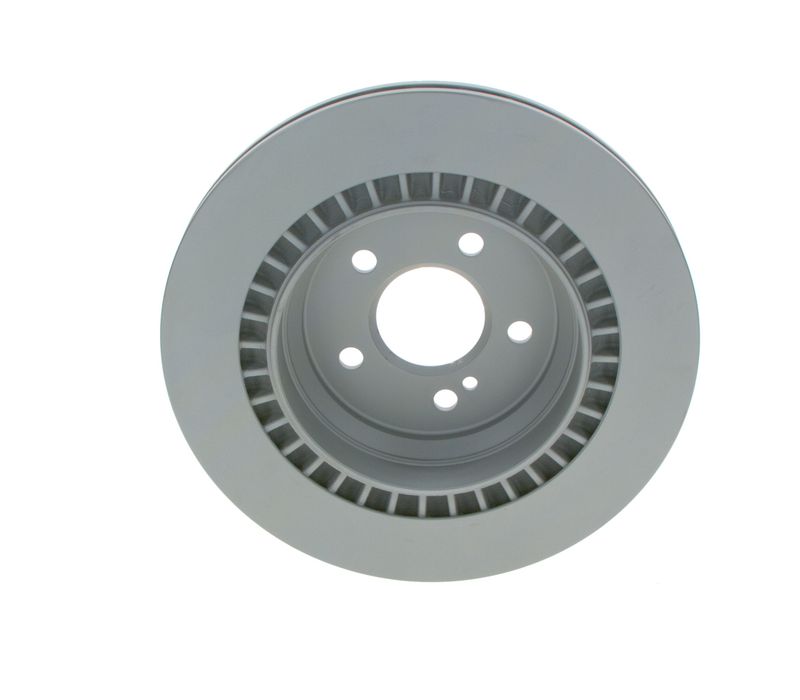

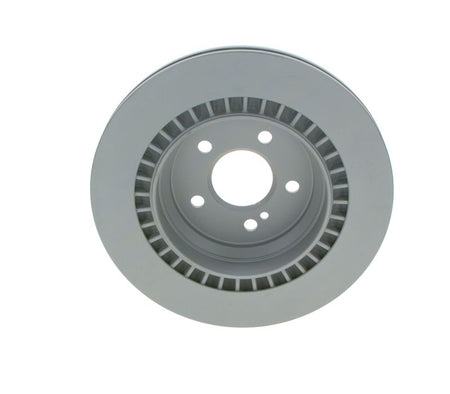

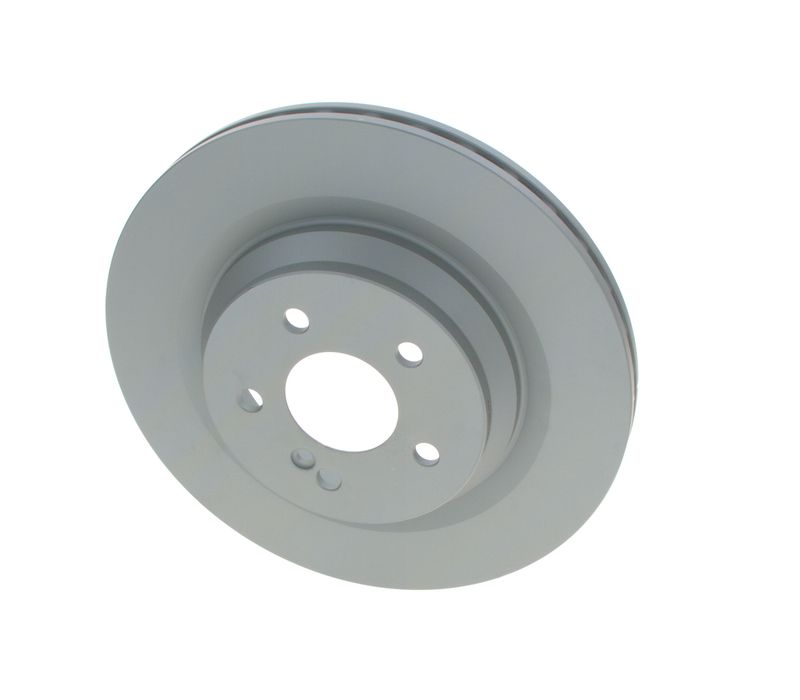

Bosch 0986479629 Brake Disc

SKU: 0986479629
Your selected vehicle
Out of stock
Out of Stock
£39.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
S-CLASS (W221, V221)
Description Cylinder Capacity Horse Power Year
S 400 Hybrid (221.095, 221.195) 3498 CCM 279 HP 01/2009 - 12/2013
S 250 CDI (221.003, 221.103) 2143 CCM 204 HP 01/2011 - 12/2013
S 350 CGI (221.057, 221.157) 3498 CCM 306 HP 04/2011 - 12/2013
S 350 CGI 4-matic (221.082, 221.182) 3498 CCM 306 HP 04/2011 - 12/2013
S 500 CGI (221.073, 221.173) 4663 CCM 435 HP 04/2011 - 12/2013
S 500 CGI 4-matic (221.094, 221.194) 4663 CCM 435 HP 03/2011 - 12/2013
S 350 CDI (221.022, 221.122) 2987 CCM 235 HP 06/2009 - 12/2013
S-CLASS Coupe (C216)
Description Cylinder Capacity Horse Power Year
CL 500 (216.373) 4663 CCM 435 HP 02/2011 - 12/2013
CL 500 4-matic (216.394) 4663 CCM 435 HP 02/2011 - 12/2013
CL 500 (216.371) 5461 CCM 388 HP 06/2006 - 12/2013
CL 500 4-matic (216.386) 5461 CCM 388 HP 02/2008 - 12/2013

The Bosch 0986479629 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 24 mm brake disc thickness, 21.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 21.4
Height [mm] : 58.3
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479629
  • Barcode 4047024731837
  • MERCEDES-BENZ : A 221 423 04 12 A 221 423 10 12 221 423 04 12 221 423 10 12
  • APEC : DSK2704
  • BLUE PRINT : ADU174380
  • BORG & BECK : BBD4677
  • BREMBO : 09.A818.10
  • BREMBO : 09.A818.11
  • DELPHI : BG4144
  • FEBI BILSTEIN : 26405
  • FTE : 9071115
  • HELLA : 8DD 355 128-751
  • MEYLE : 015 523 0014/PD
  • MINTEX : MDC2291
  • SKF : VKBD 90675 V1
  • TEXTAR : 92160703
  • TEXTAR : 92160705
  • TRW : DF4916S
  • VALEO : 197747
  • VALEO : 673466
  • BOSCH : BD1474
  • BOSCH : E1 90R-02C0826/0278
