BOSCH

Bosch 0986479633 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479633

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£67.24 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

LEXUS

IS II (_E2_)

Description	Cylinder Capacity	Horse Power	Year
200d (ALE20_, ALE20R)	2231 CCM	150 HP	07/2010 - 07/2012
250 (GSE20)	2499 CCM	208 HP	08/2005 - 03/2013
220d (ALE20)	2231 CCM	177 HP	08/2005 - 07/2012
250 AWD (GSE25_)	2499 CCM	208 HP	10/2005 - 03/2013

IS C (GSE2_)

Description	Cylinder Capacity	Horse Power	Year
250 (GSE20)	2499 CCM	208 HP	04/2009 - 06/2015

IS III (_E3_)

Description	Cylinder Capacity	Horse Power	Year
250 (GSE30_, GSE30R)	2499 CCM	208 HP	04/2013 - 08/2015
300h (AVE30_, AVE30R)	2494 CCM	223 HP	04/2013 - 09/2020

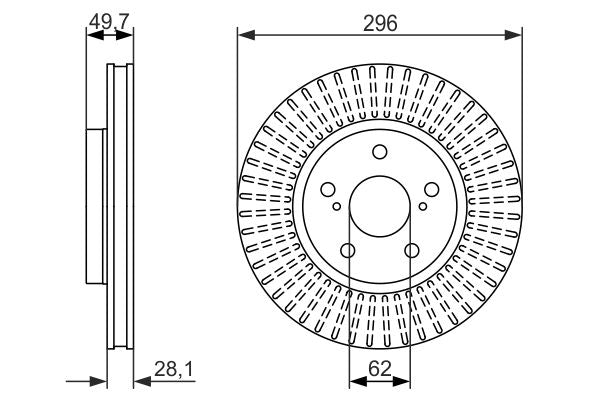

The Bosch 0986479633 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 296 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 296

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 26

Height [mm] : 49.3

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 62

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Bore Diameter up to [mm] : 14.6
