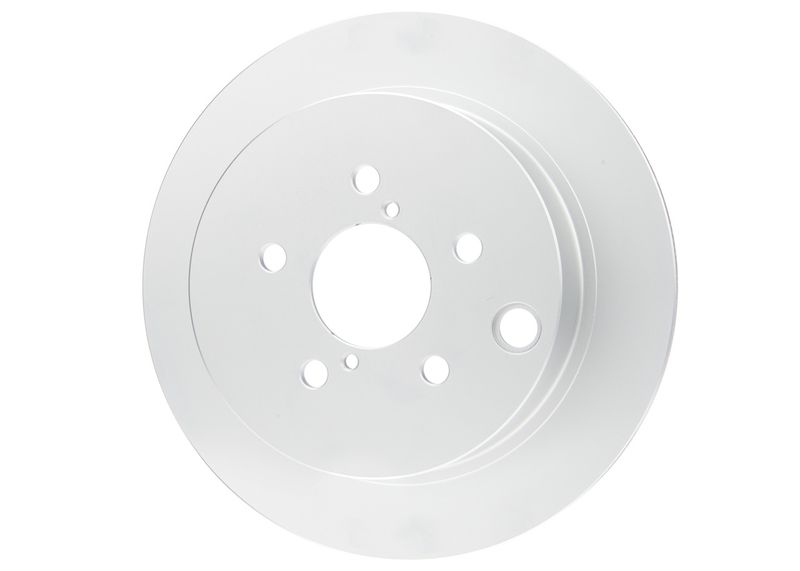

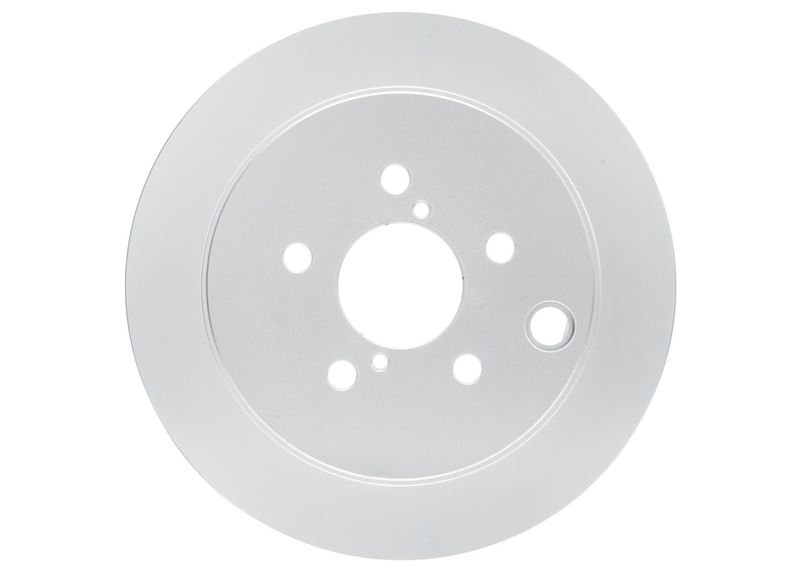

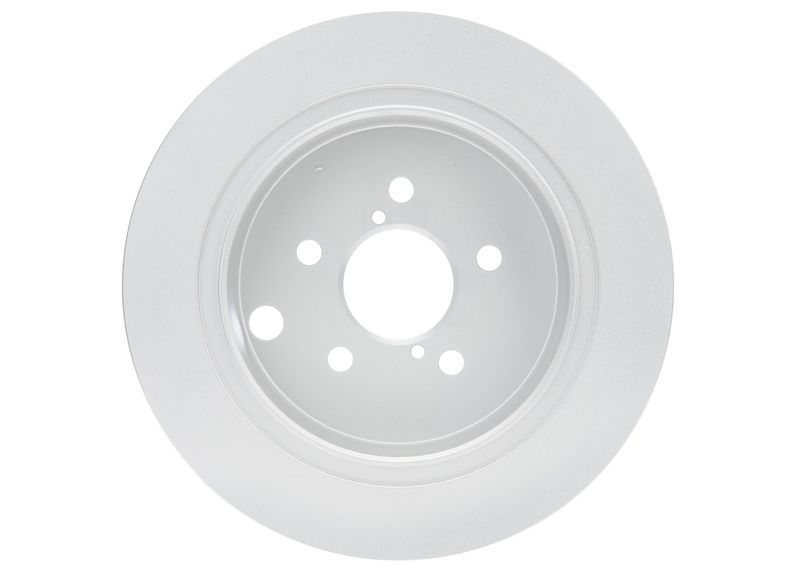

Bosch 0986479634 Brake Disc

SKU: 0986479634
Your selected vehicle
Out of stock
Out of Stock
£45.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
FORESTER (SJ_)
Description Cylinder Capacity Horse Power Year
2.0 i AWD (SJ5) 1995 CCM 150 HP From 03/2013
2.0 D AWD (SJD) 1998 CCM 147 HP From 03/2013
2.5 AWD (SJ9) 2498 CCM 171 HP From 11/2012
IMPREZA Saloon (GJ_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (GJ7) 1995 CCM 150 HP From 07/2011
1.6 AWD (GJ3) 1600 CCM 114 HP 06/2012 - 09/2016
1.6 Front-Wheel Drive (GJ2) 1600 CCM 114 HP 06/2012 - 09/2016
IMPREZA Hatchback (GP_)
Description Cylinder Capacity Horse Power Year
1.6 i (GP2) 1600 CCM 114 HP 06/2012 - 09/2016
1.6 i AWD 1600 CCM 114 HP From 06/2012
2.0 AWD (GP7) 1995 CCM 150 HP From 01/2012
XV (_GP_)
Description Cylinder Capacity Horse Power Year
1.6 i AWD (GP3, G33GP) 1600 CCM 114 HP 03/2012 - 12/2017
2.0 i AWD (GP7, G33GP) 1995 CCM 150 HP 03/2012 - 12/2017
2.0 D AWD (GPD) 1998 CCM 147 HP 03/2012 - 12/2017

The Bosch 0986479634 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 273.8 mm outer diameter, 10 mm brake disc thickness, 8.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

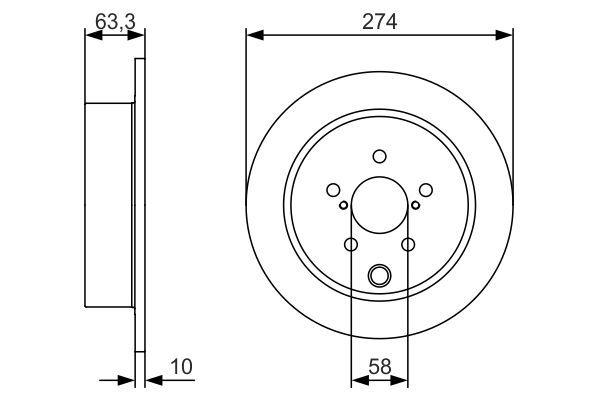

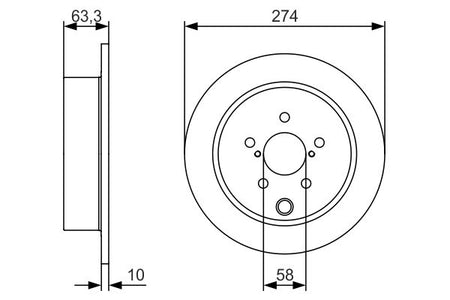

Function : Brake Disc
Outer Diameter [mm] : 273.8
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.5
Height [mm] : 63.5
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 58
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13
  • Vendor BOSCH
  • SKU 0986479634
  • Barcode 4047025167819
  • SUBARU : 26700 FJ000
  • APEC : DSK3040
  • APEC : SDK6770
  • BLUE PRINT : ADS74339
  • BORG & BECK : BBD5345
  • BREMBO : 08.C661.11
  • DELPHI : BG4776C
  • Fahren : FBD6770
  • FEBI BILSTEIN : 108521
  • FTE : 9072805
  • FTE : 9082519
  • HELLA : 8DD 355 120-341
  • MEYLE : 34-15 523 0015/PD
  • MINTEX : MDC2568
  • NAPA : NBD5653
  • National : NBD2081
  • SKF : VKBD 90508 S2
  • TEXTAR : 92262003
  • TRW : DF6503
  • VALEO : 672990
  • BOSCH : BD1674
  • BOSCH : E1 90 R - 02C0241/0536
