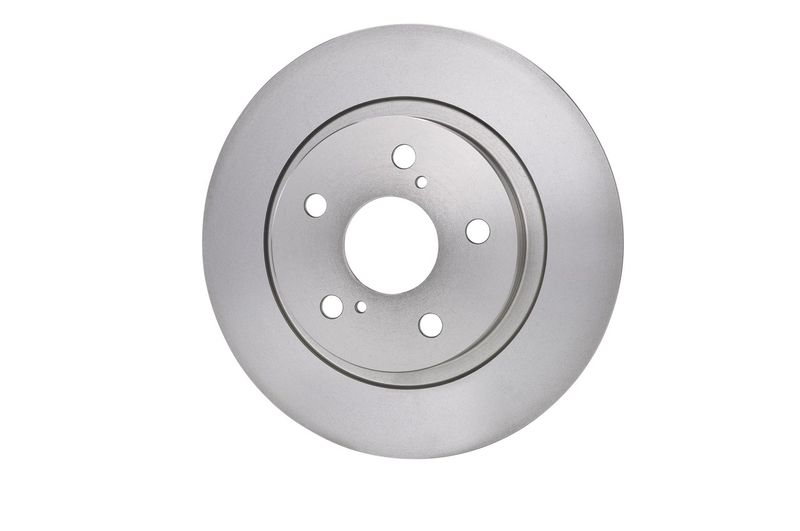

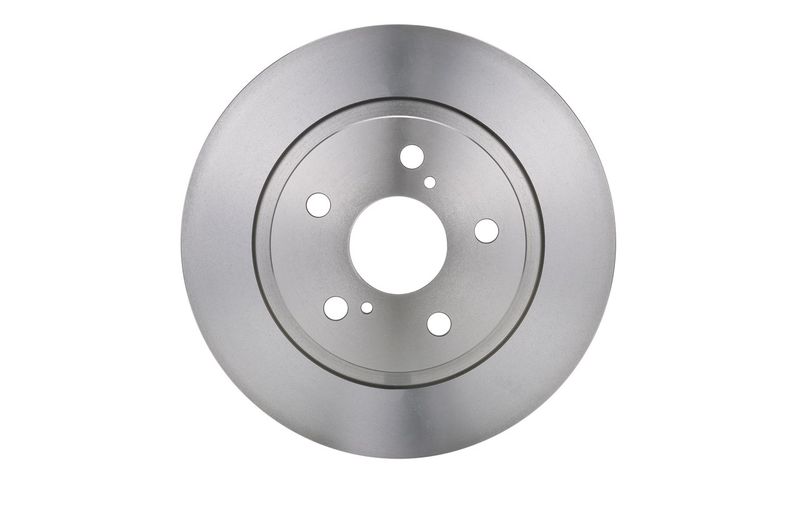

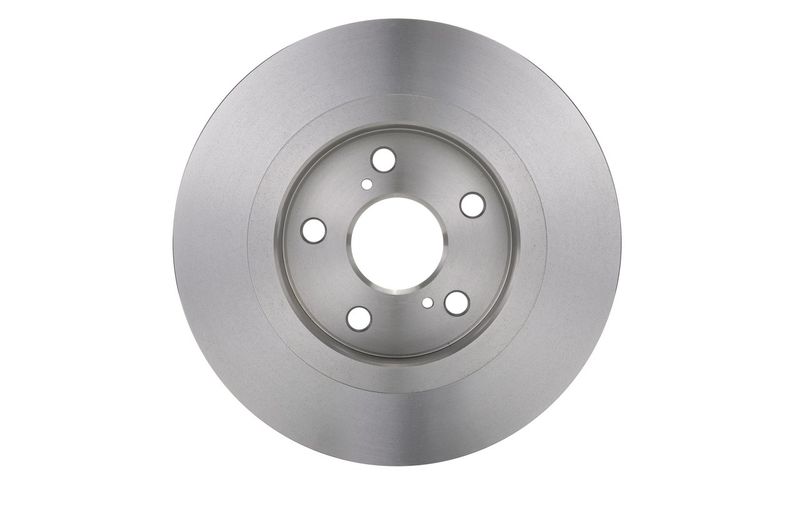

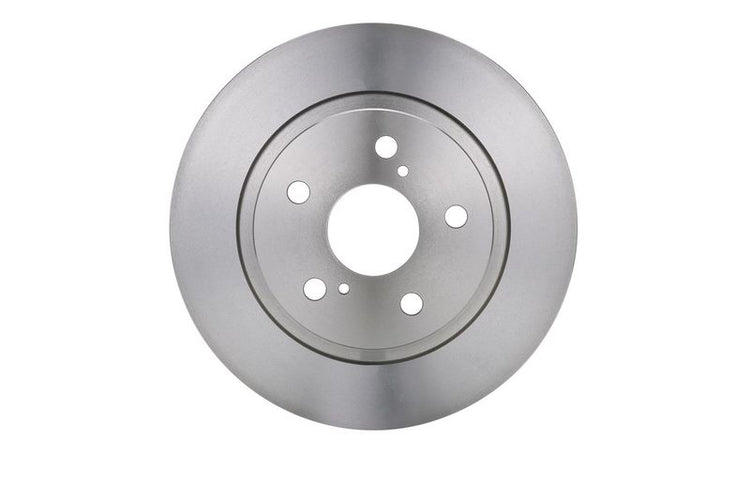

The Bosch 0986479656 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 290 mm outer diameter, 11 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc

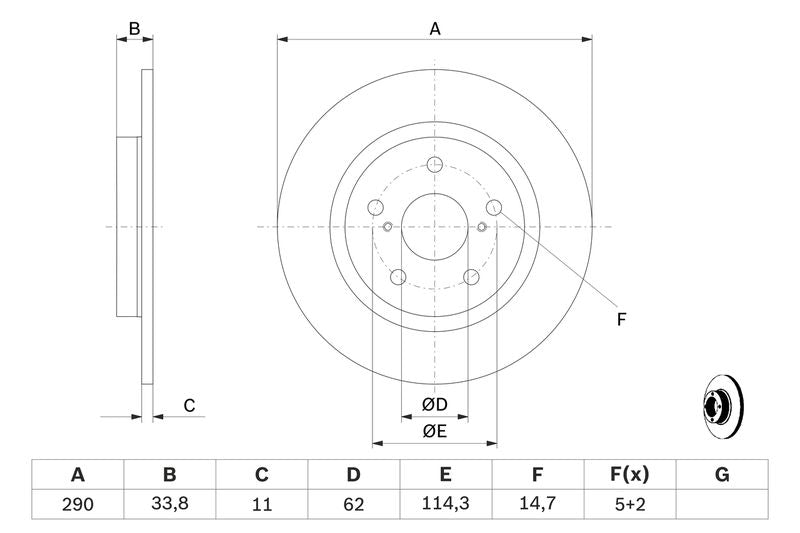

Outer Diameter [mm] :
290
Brake Disc Thickness [mm] :
11
Minimum thickness [mm] :
9
Height [mm] :
33.8
Bolt Hole Circle Ø [mm] :
114.3
Brake Disc Type :
solid
Centering Diameter [mm] :
62
Number of Holes :
5
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
14.7
- Vendor BOSCH
- SKU 0986479656
- TOYOTA : 42431 05070
- APEC : DSK2656
- APEC : SDK6299
- BLUE PRINT : ADT343273
- BORG & BECK : BBD4747
- BREMBO : 08.B045.10
- BREMBO : 08.B045.11
- DELPHI : BG4200C
- Fahren : FBD6299
- FEBI BILSTEIN : 108412
- FTE : 9072223
- FTE : 9082136
- HELLA : 8DD 355 116-121
- MEYLE : 30-15 523 0108/PD
- MINTEX : MDC2169
- NAPA : NBD5473
- SKF : VKBD 90395 S2
- TEXTAR : 92195200
- TEXTAR : 92195203
- TRW : DF6324
- VALEO : 197655
- VALEO : 672624
- BOSCH : BD1500
