BOSCH

Bosch 0986479659 Brake Disc

SKU: 0986479659

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£76.37 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

B-MAX Van (JK)

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	100 HP	From 10/2012

B-MAX (JK)

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	100 HP	From 10/2012
1.0 EcoBoost	998 CCM	120 HP	From 10/2012
1.6 Ti	1596 CCM	105 HP	From 10/2012
1.6 TDCi	1560 CCM	95 HP	From 10/2012
1.4	1388 CCM	90 HP	From 10/2012
1.5 TDCi	1499 CCM	75 HP	From 10/2012
1.0 EcoBoost	998 CCM	125 HP	From 10/2012
1.4 LPG	1388 CCM	90 HP	From 08/2013
1.5 TDCi	1499 CCM	95 HP	From 04/2015
1.0 EcoBoost	998 CCM	140 HP	From 02/2016

FIESTA VI (CB1, CCN)

Description	Cylinder Capacity	Horse Power	Year
1.6 Ti	1596 CCM	105 HP	09/2012 - 04/2017

FIESTA VI Van

Description	Cylinder Capacity	Horse Power	Year
1.6 ST	1596 CCM	182 HP	03/2013 - 04/2017

FIESTA Saloon

Description	Cylinder Capacity	Horse Power	Year
1.6 Ti	1596 CCM	120 HP	04/2010 - 04/2017
1.6 Ti	1596 CCM	105 HP	03/2015 - 04/2017

TOURNEO COURIER B460 MPV

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	100 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	75 HP	02/2014 - 12/2023
1.6 TDCi	1560 CCM	95 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	95 HP	05/2015 - 12/2023
1.5 EcoBlue	1499 CCM	100 HP	04/2018 - 12/2023

TRANSIT COURIER B460 Box Body/MPV

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	75 HP	02/2014 - 12/2023
1.0 EcoBoost	998 CCM	100 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	95 HP	05/2015 - 12/2023
1.5 EcoBlue	1499 CCM	100 HP	04/2018 - 12/2023

TRANSIT COURIER B460 MPV

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	75 HP	02/2014 - 12/2023
1.0 EcoBoost	998 CCM	100 HP	02/2014 - 12/2023
1.5 TDCi	1499 CCM	95 HP	05/2015 - 12/2023
1.5 EcoBlue	1499 CCM	100 HP	04/2018 - 12/2023

The Bosch 0986479659 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 278 mm outer diameter, 23 mm brake disc thickness, 21 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

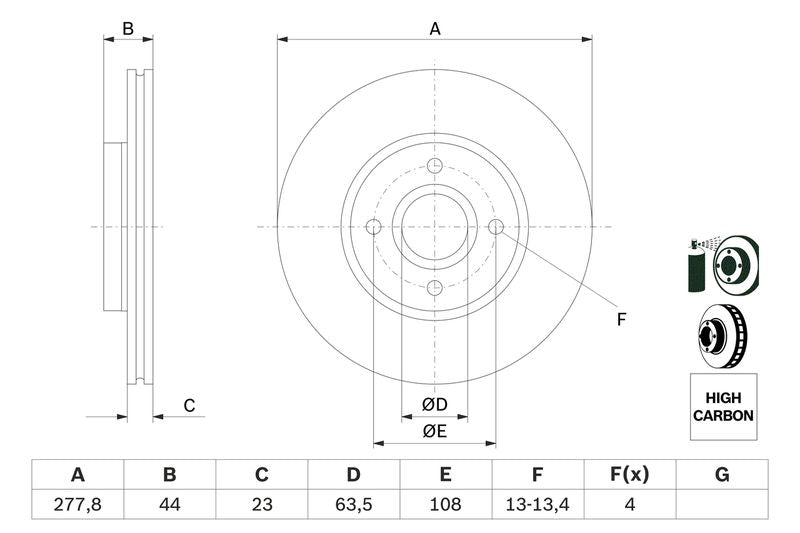

Function : Brake Disc

Outer Diameter [mm] : 278

Brake Disc Thickness [mm] : 23

Minimum thickness [mm] : 21

Height [mm] : 43.9

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 63.5

Number of Holes : 4

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13

APEC : DSK2979
APEC : SDK6738
BLUE PRINT : ADF124338
BORG & BECK : BBD5316
BREMBO : 09.C422.11
BREMBO : 09.C422.1X
BREMBO : 09.C422.75
DELPHI : BG4569
DELPHI : BG4569C
Fahren : FBD6738
FEBI BILSTEIN : 105848
FTE : 9072039
FTE : 9082422
HELLA : 8DD 355 118-181
MEYLE : 715 521 0032
MEYLE : 715 521 0032/PD
MINTEX : MDC2481
NAPA : NBD5510
National : NBD1821
SKF : VKBD 80134 V2
TEXTAR : 92252403
TRW : DF6509
VALEO : 197617
VALEO : 673022

Bosch 0986479659 Brake Disc
