BOSCH

Bosch 0986479660 Brake Disc

SKU: 0986479660
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£46.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
KUGA II (DM2)
Description Cylinder Capacity Horse Power Year
1.6 EcoBoost 4x4 1596 CCM 182 HP 03/2013 - 09/2014
2.0 TDCi 1997 CCM 140 HP 03/2013 - 09/2014
2.0 TDCi 4x4 1997 CCM 140 HP 03/2013 - 09/2014
2.0 TDCi 4x4 1997 CCM 163 HP 03/2013 - 09/2014
2.0 TDCi 1997 CCM 136 HP 03/2013 - 12/2019
2.0 TDCi 4x4 1997 CCM 136 HP 03/2013 - 12/2019
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 06/2019
1.5 EcoBoost 4x4 1499 CCM 182 HP 09/2014 - 06/2018
2.0 TDCi 1997 CCM 120 HP 09/2014 - 06/2019
2.0 TDCi 1997 CCM 150 HP 09/2014 - 06/2019
2.0 TDCi 4x4 1997 CCM 150 HP 09/2014 - 06/2019
2.0 TDCi 4x4 1997 CCM 180 HP 09/2014 - 06/2019
1.6 EcoBoost 4x4 1596 CCM 150 HP 03/2013 - 09/2014
2.0 TDCi 1997 CCM 115 HP 03/2013 - 12/2019
KUGA II VAN
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 12/2019
1.5 EcoBoost 4x4 1499 CCM 182 HP 09/2014 - 12/2019
2.0 TDCi 1997 CCM 150 HP 09/2014 - 12/2019
2.0 TDCi 4x4 1997 CCM 150 HP 09/2014 - 12/2019
2.0 TDCi 4x4 1998 CCM 180 HP 09/2014 - 12/2019
1.5 EcoBoost 1499 CCM 120 HP 06/2019 - 12/2019
1.5 EcoBoost 4x4 1499 CCM 176 HP 06/2019 - 12/2019
2.0 TDCi 1997 CCM 120 HP 06/2019 - 12/2019
1.5 TDCi 1499 CCM 120 HP 01/2019 - 12/2019
2.0 TDCi 1997 CCM 140 HP 06/2012 - 12/2019
TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV
Description Cylinder Capacity Horse Power Year
1.6 EcoBoost 1596 CCM 150 HP 11/2013 - 12/2022
1.6 TDCi 1560 CCM 95 HP 09/2013 - 12/2022
1.0 EcoBoost 998 CCM 100 HP 11/2013 - 12/2022
1.6 TDCi 1560 CCM 115 HP 09/2013 - 12/2022
1.6 TDCi 1560 CCM 75 HP 09/2013 - 12/2022
1.5 TDCi 1499 CCM 101 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 75 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 120 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 95 HP 08/2016 - 12/2022
TRANSIT CONNECT MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
TRANSIT CONNECT V408 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.6 EcoBoost 1596 CCM 150 HP From 11/2013
1.0 EcoBoost 998 CCM 100 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 TDCi 1499 CCM 95 HP From 03/2016

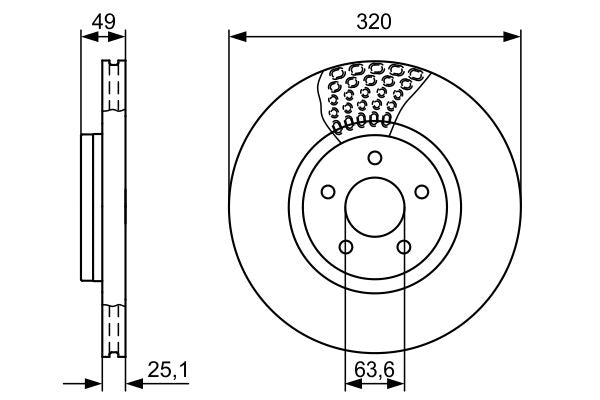

The Bosch 0986479660 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 23
Height [mm] : 48.8
Bolt Hole Circle Ø [mm] : 107.95
Brake Disc Type : Vented
Centering Diameter [mm] : 63.55
Number of Holes : 5
Surface : Oiled
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.75
  • Vendor BOSCH
  • SKU 0986479660
  • Barcode 4047025167857
  • FORD : CV611125FA CV611125GA 1770767 1829608
  • APEC : DSK2981
  • APEC : SDK6740
  • BLUE PRINT : ADF124351
  • BORG & BECK : BBD5348
  • BREMBO : 09.C542.11
  • BREMBO : 09.C542.1X
  • DELPHI : BG4056C
  • DELPHI : BG5216C
  • Fahren : FBD6740
  • FEBI BILSTEIN : 43870
  • FTE : 9082614
  • HELLA : 8DD 355 125-151
  • MEYLE : 515 521 0034/PD
  • MEYLE : 715 521 0035
  • MEYLE : 715 521 0035/PD
  • MINTEX : MDC2570
  • MINTEX : MDC2739
  • NAPA : NBD5234
  • National : NBD1857
  • SKF : VKBD 80223 V1
  • TEXTAR : 92262203
  • TEXTAR : 92282103
  • TEXTAR : 92282105
  • TRW : DF6662S
  • VALEO : 197143
  • VALEO : 672552
  • BOSCH : BD1677
  • BOSCH : E1 90R-02C0339/1689
