BOSCH

Bosch 0986479680 Brake Disc

SKU: 0986479680
Your selected vehicle
Out of stock
Out of Stock
£58.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
V40 Hatchback (525)
Description Cylinder Capacity Horse Power Year
T4 1984 CCM 180 HP 07/2013 - 12/2015
T3 GTDi 1596 CCM 150 HP 03/2012 - 12/2016
T4 GTDi 1596 CCM 180 HP 03/2012 - 12/2016
D2 1560 CCM 114 HP 03/2012 - 12/2016
D3 1984 CCM 150 HP 03/2012 - 03/2015
D4 1984 CCM 177 HP 03/2012 - 12/2014
T5 2497 CCM 254 HP 12/2012 - 12/2014
T5 1984 CCM 214 HP 03/2013 - 12/2015
T2 GTDi 1596 CCM 120 HP 04/2013 - 12/2016
D4 1969 CCM 190 HP 05/2014 - 08/2019
T5 1969 CCM 245 HP 05/2014 - 08/2019
T4 1596 CCM 200 HP 04/2014 - 12/2015
T2 1969 CCM 122 HP 02/2015 - 08/2019
T3 1969 CCM 152 HP 02/2015 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
V40 Cross Country (526)
Description Cylinder Capacity Horse Power Year
T4 AWD 1984 CCM 180 HP 07/2013 - 12/2015
T5 AWD 1984 CCM 214 HP 03/2013 - 12/2015
T5 AWD 2497 CCM 254 HP 10/2012 - 12/2016
T5 AWD 1969 CCM 245 HP 05/2014 - 08/2019
T4 AWD 1969 CCM 190 HP 05/2014 - 08/2019
T5 Polestar AWD 1969 CCM 253 HP 01/2015 - 08/2019
D4 1969 CCM 190 HP 05/2014 - 08/2019
T3 1969 CCM 152 HP 02/2015 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
T3 1498 CCM 152 HP 04/2015 - 08/2019
D3 1969 CCM 150 HP 04/2015 - 08/2019
T4 1984 CCM 180 HP 10/2013 - 12/2015
T4 GTDi 1596 CCM 180 HP 10/2012 - 12/2016
D2 1560 CCM 114 HP 10/2012 - 12/2016
D3 1984 CCM 150 HP 10/2012 - 03/2015

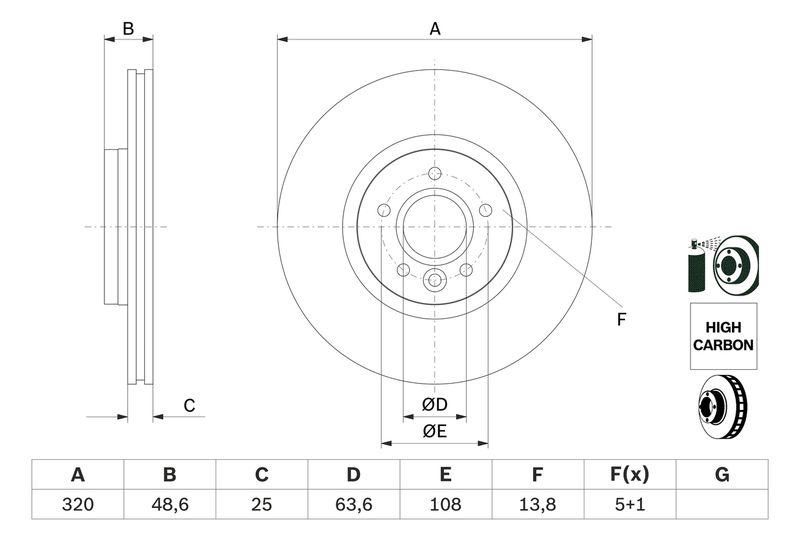

The Bosch 0986479680 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 23
Height [mm] : 48.6
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 63.6
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479680
  • Barcode 4047025167901
  • VOLVO : 31341644 31400818
  • APEC : DSK2344
  • APEC : SDK6740
  • BLUE PRINT : ADF124351
  • BORG & BECK : BBD5348
  • BORG & BECK : BBD5533
  • BREMBO : 09.C542.21
  • DELPHI : BG4056C
  • DELPHI : BG5216C
  • Fahren : FBD6224
  • FEBI BILSTEIN : 43870
  • FTE : 9072848
  • HELLA : 8DD 355 125-151
  • MEYLE : 515 521 0034/PD
  • MINTEX : MDC2739
  • NAPA : NBD5134
  • National : NBD2054
  • SKF : VKBD 80223 V1
  • TEXTAR : 92282103
  • TEXTAR : 92282105
  • BOSCH : BD1682
