BOSCH

Bosch 0986479682 Brake Disc

5.0/5 78 reviews
SKU: 0986479682

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£100.21 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

RENAULT
GRAND SCÉNIC III (JZ0/1_)
Description Cylinder Capacity Horse Power Year
1.5 dCi (JZ09, JZ0D, JZ10, JZ14, JZ1G, JZ29, JZ2C) 1461 CCM 110 HP 04/2009 - 09/2016
1.5 dCi (JZ02, JZ0R) 1461 CCM 95 HP 11/2010 - 09/2016
1.6 dCi (JZ00, JZ12) 1598 CCM 130 HP 04/2011 - 09/2016
1.6 16V Bifuel (JZ1Y) 1598 CCM 110 HP 02/2009 - 09/2016
1.4 16V (JZ0F) 1397 CCM 131 HP 02/2009 - 09/2016
1.6 16V (JZ0U) 1598 CCM 109 HP 02/2009 - 09/2016
2.0 16V (JZ0G) 1997 CCM 140 HP 02/2009 - 09/2016
1.5 dCi (JZ0B, JZ07) 1461 CCM 106 HP 02/2009 - 09/2016
1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) 1870 CCM 131 HP 02/2009 - 09/2016
1.2 TCe (JZ11, JZ28) 1197 CCM 116 HP 04/2012 - 09/2016
1.2 TCe (JZ16) 1197 CCM 132 HP 01/2013 - 09/2016
1.6 E85 (JZ03, JZ1Y) 1598 CCM 110 HP 02/2009 - 09/2016

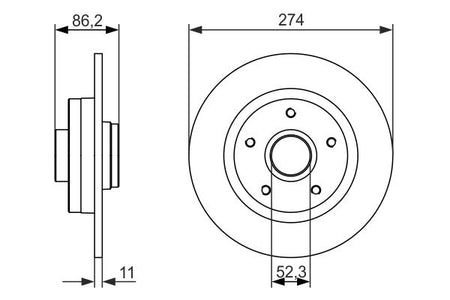

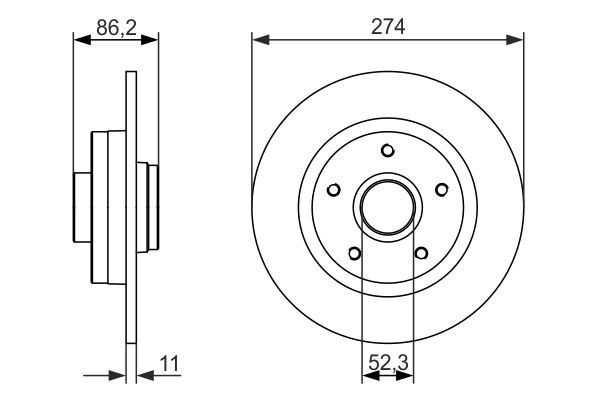

The Bosch 0986479682 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 274 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9.5
Height [mm] : 86.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 61.91
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Supplementary Article/Supplementary Info 2 : without wheel bearing
Supplementary Article/Supplementary Info 2 : without integrated magnetic sensor ring
  • Vendor BOSCH
  • SKU 0986479682
  • Barcode 4047024887824
  • RENAULT : 43 20 000 07R
  • APEC : DSK2821
  • APEC : SDK6655
  • BLUE PRINT : ADR164310
  • BORG & BECK : BBD5968S
  • BORG & BECK : BWK1219
  • BREMBO : 08.B397.27
  • DELPHI : BG9132RS
  • Fahren : FBD6655
  • FEBI BILSTEIN : 38305
  • FIRST LINE : FBK1219
  • FTE : 9071402
  • HELLA : 8DD 355 117-351
  • MEYLE : 16-15 523 4109
  • MEYLE : 16-15 523 4109/PD
  • MINTEX : MDC2284
  • NAPA : NBD5422
  • TEXTAR : 92232603
  • TRW : DF6203BS
  • VALEO : 672807
  • BOSCH : BD1519
  • BOSCH : E1 90R-02C0527/1774
