BOSCH

Bosch 0986479711 Brake Disc

SKU: 0986479711
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£52.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 TD 4x4 2500 CCM 109 HP 10/1999 - 06/2006
2.5 TD 4x4 2500 CCM 84 HP 04/2002 - 06/2006
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
MAZDA
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 CDVi (UNY0W3) 2500 CCM 143 HP From 12/2006
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
3.0 CDVi (UNY0E3) 2953 CCM 156 HP 12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP 10/2006 - 12/2015
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

The Bosch 0986479711 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 288.5 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

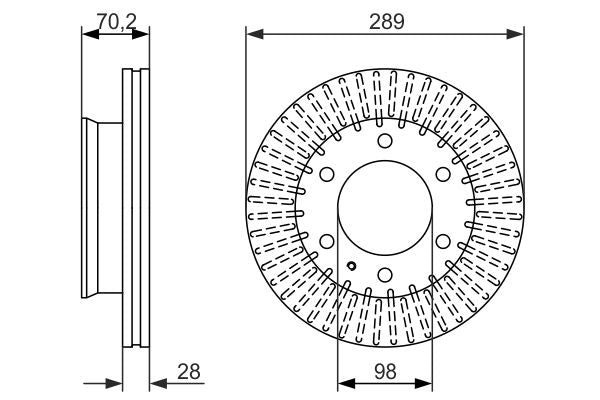

Function : Brake Disc
Outer Diameter [mm] : 288.5
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26
Height [mm] : 70.2
Bolt Hole Circle Ø [mm] : 140
Brake Disc Type : Vented
Centering Diameter [mm] : 98
Number of Holes : 6
Surface : Oiled
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.2
  • Vendor BOSCH
  • SKU 0986479711
  • Barcode 4047024886827
  • FORD : FOR6M341027DA UM5133251 1490412 4429562 6M341027DA
  • MAZDA : UR61-33-251
  • BLUE PRINT : ADM54377
  • BORG & BECK : BBD4793
  • BREMBO : 09.B622.10
  • DELPHI : BG4297
  • FEBI BILSTEIN : 44104
  • FTE : 9071153
  • HELLA : 8DD 355 129-181
  • MINTEX : MDC2217
  • National : NBD1312
  • SKF : VKBD 80538 V1
  • TEXTAR : 92223000
  • TRW : DF6034S
  • VALEO : 673440
  • BOSCH : BD1862
  • BOSCH : E1 90R-02C0349/0453
