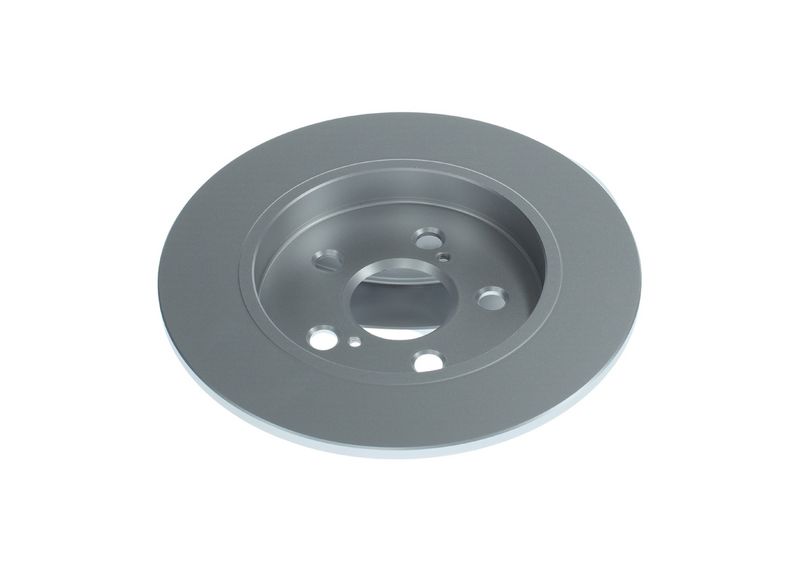

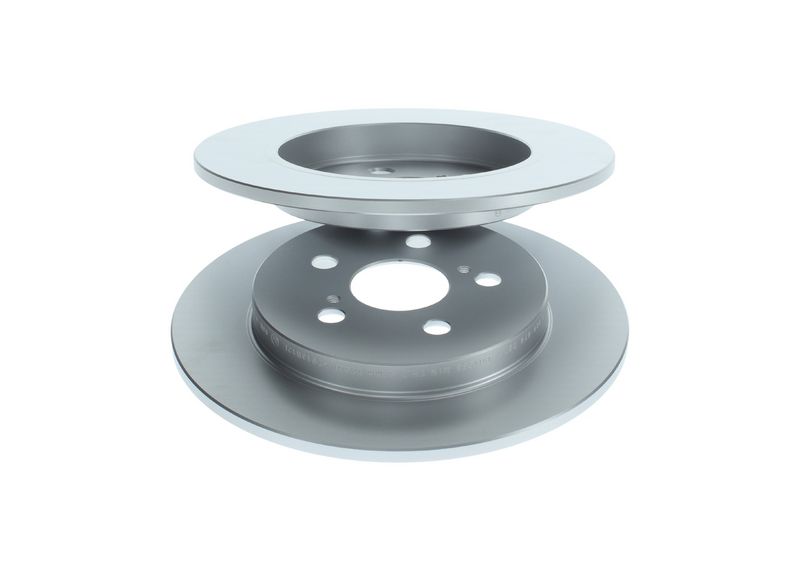

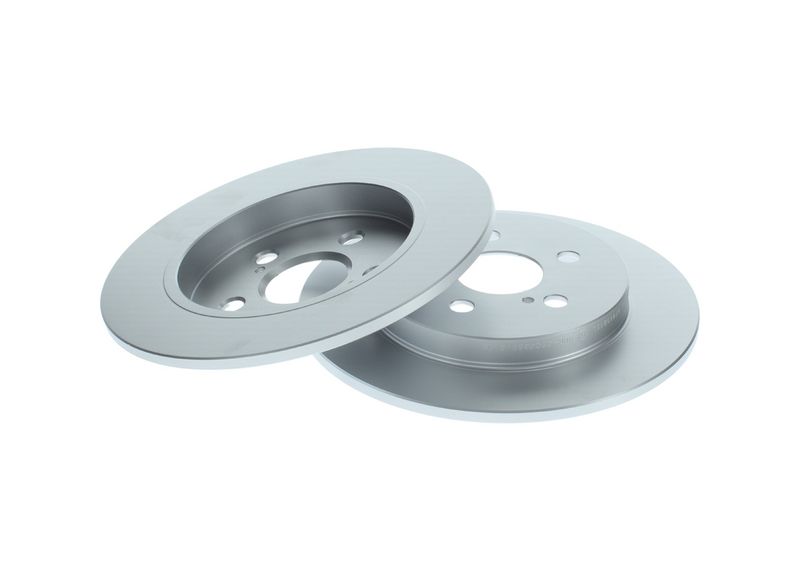

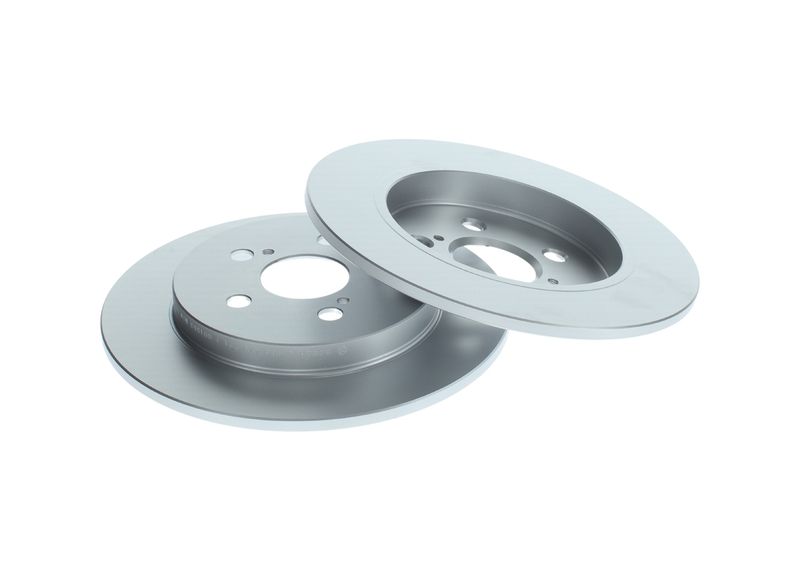

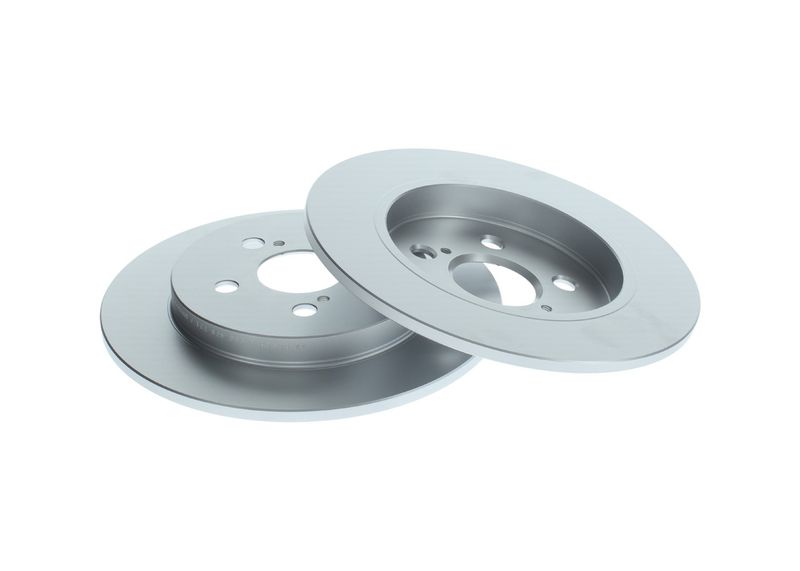

Bosch 0986479721 Brake Disc - 1
Bosch 0986479721 Brake Disc - 2
Bosch 0986479721 Brake Disc - 3
Bosch 0986479721 Brake Disc - 4
Bosch 0986479721 Brake Disc - 5
Bosch 0986479721 Brake Disc - 6
Bosch 0986479721 Brake Disc - 1
Bosch 0986479721 Brake Disc - 2
Bosch 0986479721 Brake Disc - 3
Bosch 0986479721 Brake Disc - 4
Bosch 0986479721 Brake Disc - 5
Bosch 0986479721 Brake Disc - 6
BOSCH

Bosch 0986479721 Brake Disc

SKU: 0986479721
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£43.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
TREZIA
Description Cylinder Capacity Horse Power Year
1.3 (NSP120X, NSP120L) 1329 CCM 99 HP From 03/2011
1.4 D 1364 CCM 90 HP From 03/2011
TOYOTA
COROLLA Saloon (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 (ZRE142, ZRE152) 1798 CCM 136 HP 10/2006 - 07/2014
1.6 VVTi (ZRE141_, ZRE151_) 1598 CCM 122 HP 07/2010 - 05/2014
COROLLA Saloon (_E18_, ZRE1_)
Description Cylinder Capacity Horse Power Year
1.8 VVTi (ZRE172, ZRE182) 1798 CCM 140 HP 06/2013 - 08/2019
1.6 (ZRE171, ZRE181) 1598 CCM 122 HP 06/2013 - 12/2018
PRIUS (_W3_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZVW30) 1798 CCM 136 HP 06/2008 - 06/2016
1.8 Plug-in Hybrid (ZVW30, ZVW35) 1798 CCM 136 HP 04/2009 - 12/2015
PRIUS (_W5_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZVW50, ZVW50_, ZVW51_, ZVW50R, ZVW51) 1798 CCM 122 HP 09/2015 - 12/2022
Hybrid (ZVW55_) 1798 CCM 122 HP 09/2015 - 12/2022
PRIUS PHV (_W52_)
Description Cylinder Capacity Horse Power Year
1.8 Plug-in Hybrid (ZVW52) 1798 CCM 122 HP 01/2016 - 12/2022
VERSO S (_P12_)
Description Cylinder Capacity Horse Power Year
1.33 (NSP120_) 1329 CCM 99 HP 11/2010 - 10/2016
1.4 D4-D (NLP121_, NLP121R) 1364 CCM 90 HP 11/2010 - 10/2016
LEXUS
CT (ZWA10_)
Description Cylinder Capacity Horse Power Year
200h (ZWA10_, ZWA10R) 1798 CCM 136 HP From 09/2011

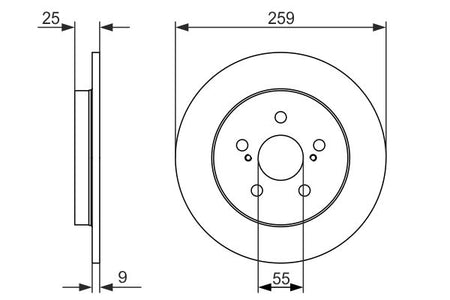

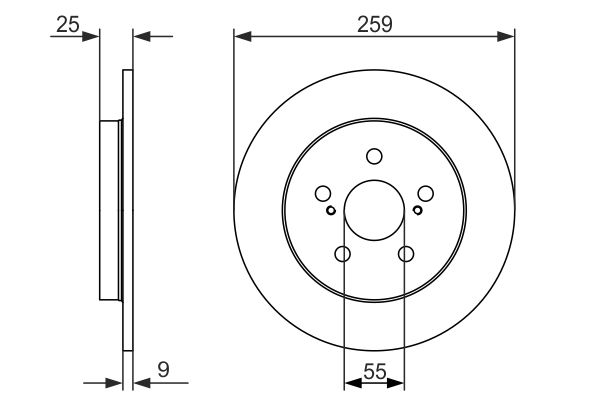

The Bosch 0986479721 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 259 mm outer diameter, 9 mm brake disc thickness, 7.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 259
Brake Disc Thickness [mm] : 9
Minimum thickness [mm] : 7.5
Height [mm] : 30.7
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 55
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.6
  • Vendor BOSCH
  • SKU 0986479721
  • Barcode 4047024886858
  • SUBARU : 42431 02250 42431 12310
  • TOYOTA : 42431 02250 42431 12310
  • LEXUS : 4243102250 4243112310
  • CARRARO : 1421540
  • APEC : DSK2811
  • APEC : SDK6651
  • BLUE PRINT : ADT343277
  • BORG & BECK : BBD5173
  • BREMBO : 08.A534.30
  • BREMBO : 08.A534.31
  • BREMBO : 08.A534.3X
  • DELPHI : BG4201C
  • Fahren : FBD6651
  • FEBI BILSTEIN : 108503
  • FTE : 9072508
  • FTE : 9082236
  • FTE : 9082782
  • HELLA : 8DD 355 116-901
  • MEYLE : 30-15 523 0107/PD
  • MINTEX : MDC2203
  • NAPA : NBD5421
  • SKF : VKBD 90435 S2
  • TEXTAR : 92224003
  • TRW : DF6145
  • VALEO : 197491
  • VALEO : 672540
  • BOSCH : BD1553
