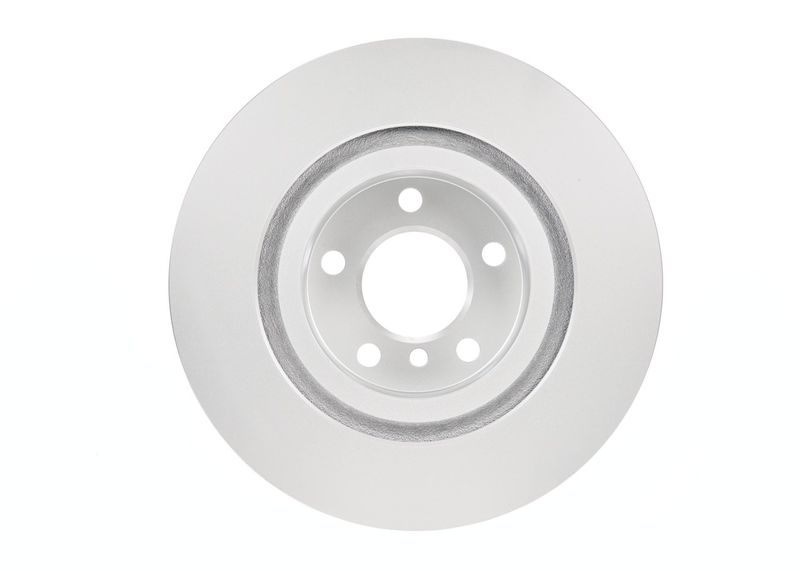

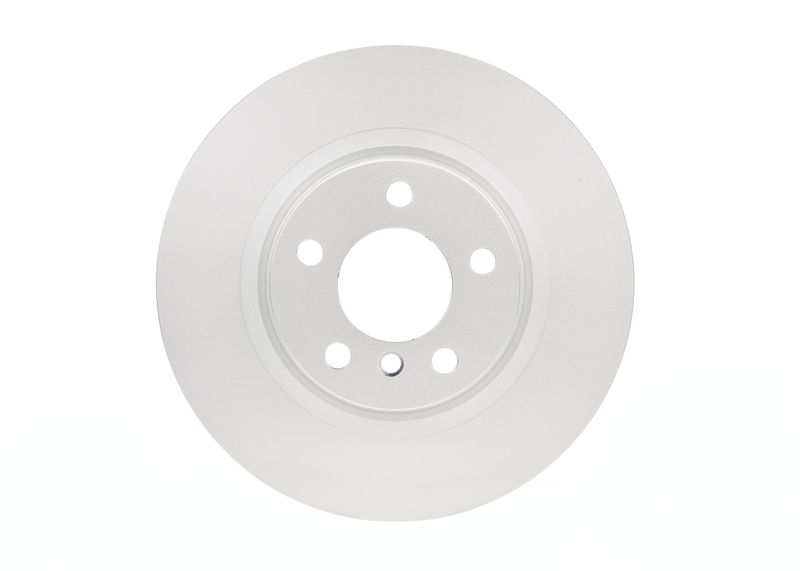

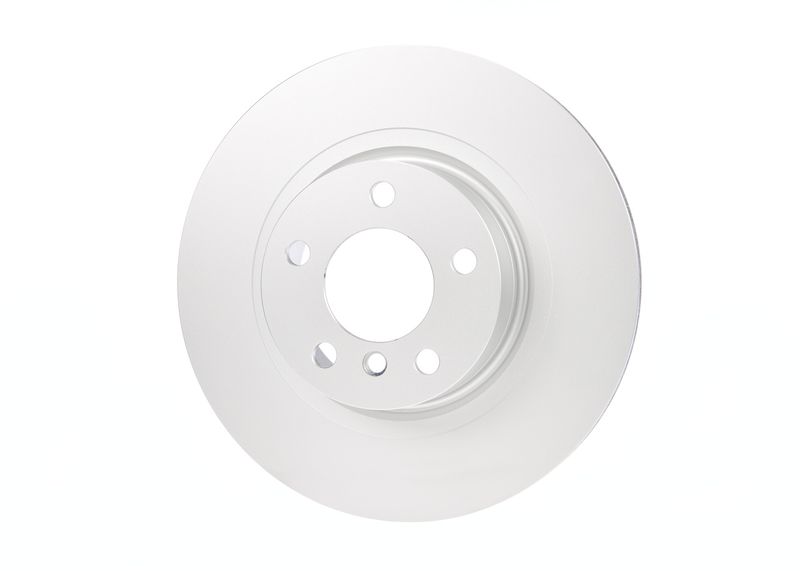

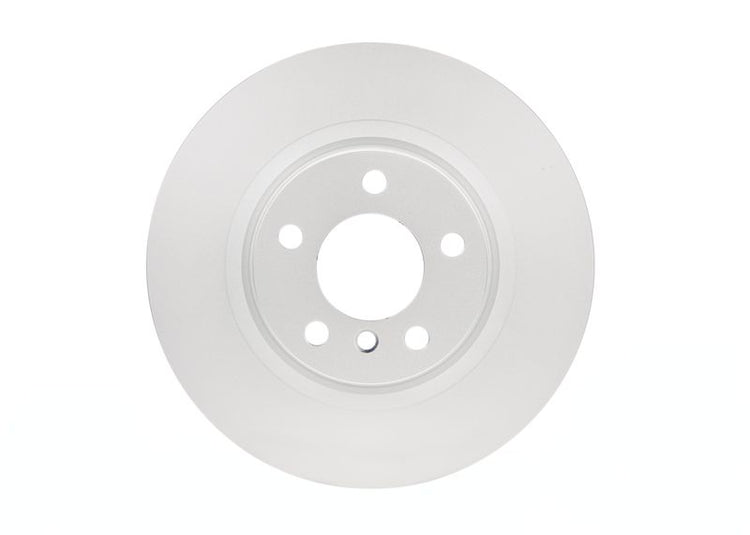

Bosch 0986479727 Brake Disc - 1
Bosch 0986479727 Brake Disc - 2
Bosch 0986479727 Brake Disc - 3
Bosch 0986479727 Brake Disc - 4
Bosch 0986479727 Brake Disc - 5
Bosch 0986479727 Brake Disc - 6
Bosch 0986479727 Brake Disc - 1
Bosch 0986479727 Brake Disc - 2
Bosch 0986479727 Brake Disc - 3
Bosch 0986479727 Brake Disc - 4
Bosch 0986479727 Brake Disc - 5
Bosch 0986479727 Brake Disc - 6
BOSCH

Bosch 0986479727 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479727

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£90.17 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
X3 (F25)
Description Cylinder Capacity Horse Power Year
xDrive 28 i 2996 CCM 258 HP 01/2011 - 10/2012
xDrive 30 d 2993 CCM 258 HP 04/2011 - 08/2017
xDrive 35 d 2993 CCM 313 HP 10/2011 - 08/2017
xDrive 20 i 1997 CCM 184 HP 10/2011 - 08/2017
xDrive 35 i 2979 CCM 306 HP 09/2010 - 08/2017
xDrive 20 d 1995 CCM 184 HP 09/2010 - 03/2014
xDrive 28 i 1997 CCM 245 HP 04/2012 - 08/2017
sDrive 18 d 1995 CCM 136 HP 10/2012 - 03/2014
sDrive 18 d 1995 CCM 143 HP 10/2012 - 03/2014
xDrive 20 d 1995 CCM 163 HP 09/2010 - 08/2017
sDrive 18 d 1995 CCM 150 HP 04/2014 - 08/2017
xDrive 20 d 1995 CCM 190 HP 04/2014 - 08/2017
sDrive 20 i 1997 CCM 184 HP 04/2014 - 08/2017
sDrive 20 i 1592 CCM 170 HP 04/2014 - 08/2017
xDrive 30 d 2993 CCM 211 HP 04/2011 - 08/2017
X4 (F26)
Description Cylinder Capacity Horse Power Year
xDrive 20 i 1997 CCM 184 HP 04/2014 - 03/2018
xDrive 28 i 1997 CCM 245 HP 04/2014 - 03/2018
xDrive 35 i 2979 CCM 306 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 190 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 258 HP 04/2014 - 03/2018
xDrive 35 d 2993 CCM 313 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 163 HP 04/2014 - 03/2018
M 40 i 2979 CCM 360 HP 12/2015 - 03/2018
xDrive 30 d 2993 CCM 286 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 249 HP 04/2015 - 03/2018
xDrive 30 d 2993 CCM 277 HP 04/2014 - 03/2018

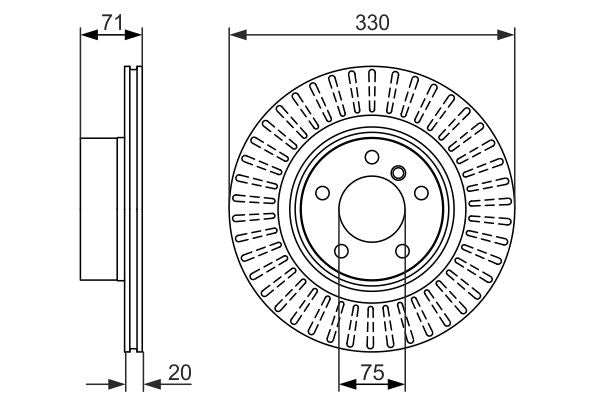

The Bosch 0986479727 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 20 mm brake disc thickness, 18.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 20
Minimum thickness [mm] : 18.4
Height [mm] : 70.8
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 75
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.6
  • Vendor BOSCH
  • SKU 0986479727
  • Barcode 4047024886872
  • BMW : 34 20 6 790 362 34 20 6 868 936 34 20 6 886 482
  • APEC : DSK2969
  • APEC : SDK6731
  • BLUE PRINT : ADB114347
  • BORG & BECK : BBD5300
  • BREMBO : 09.B569.11
  • BREMBO : 09.B569.1S
  • BREMBO : 09.B569.1X
  • DELPHI : BG4644C
  • Fahren : FBD6731
  • FEBI BILSTEIN : 38577
  • FTE : 9071051
  • FTE : 9081101
  • HELLA : 8DD 355 119-541
  • HELLA : 8DD 355 129-811
  • MEYLE : 315 523 0029/PD
  • MINTEX : MDC2532
  • NAPA : NBD5545
  • National : NBD1828
  • SKF : VKBD 90200 V1
  • TEXTAR : 92256303
  • TRW : DF6352S
  • VALEO : 197576
  • BOSCH : BD1559
  • BOSCH : E1 90R-02C0349/1462
