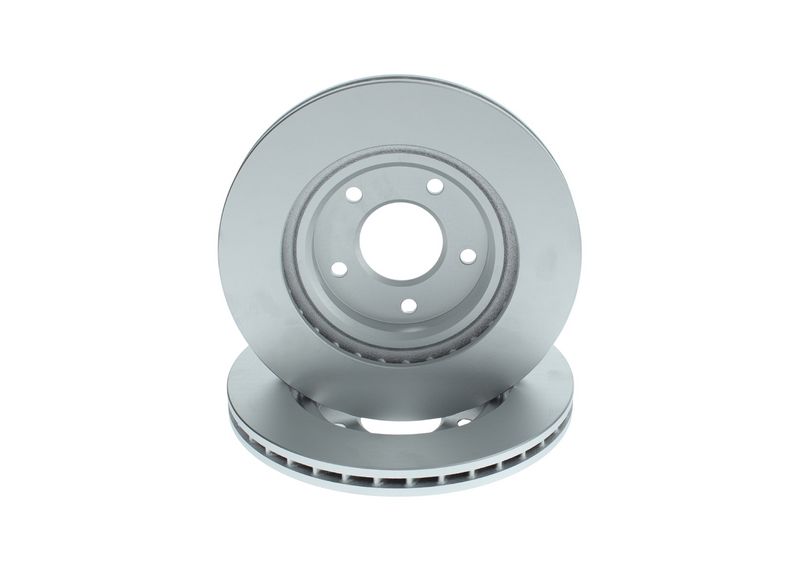

Bosch 0986479745 Brake Disc - 1

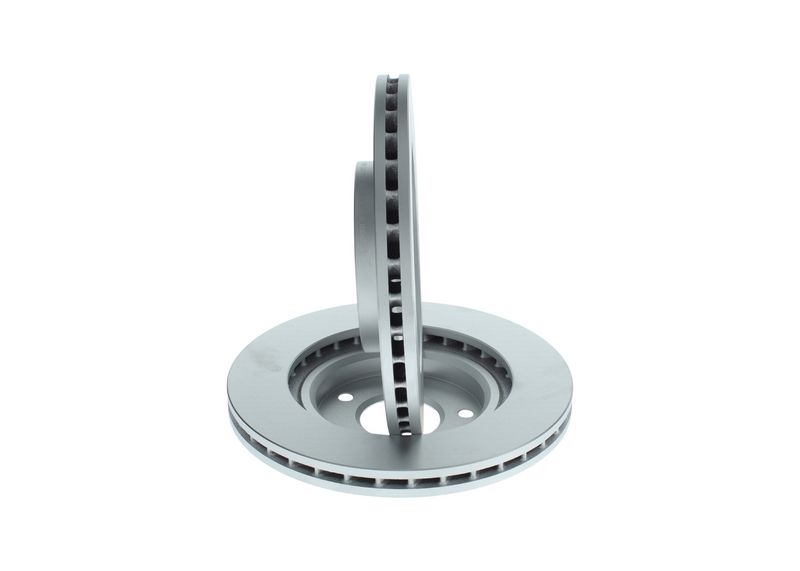

Bosch 0986479745 Brake Disc - 2

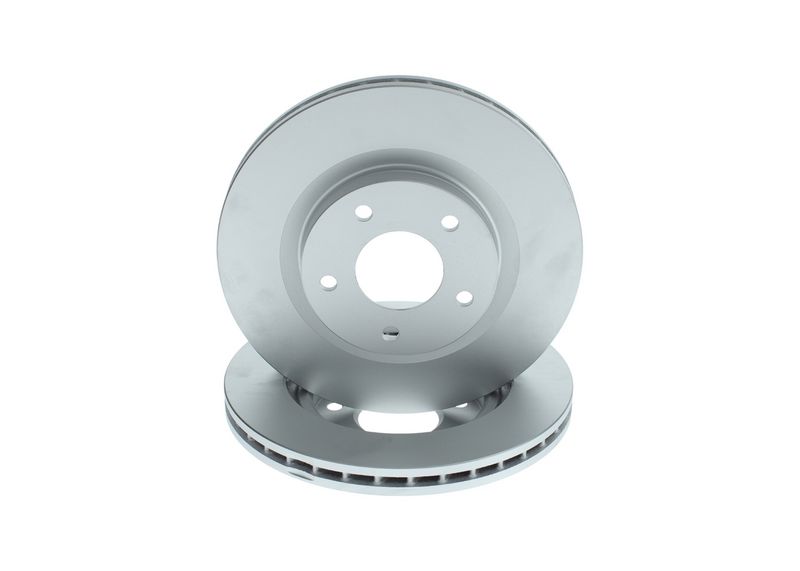

Bosch 0986479745 Brake Disc - 3

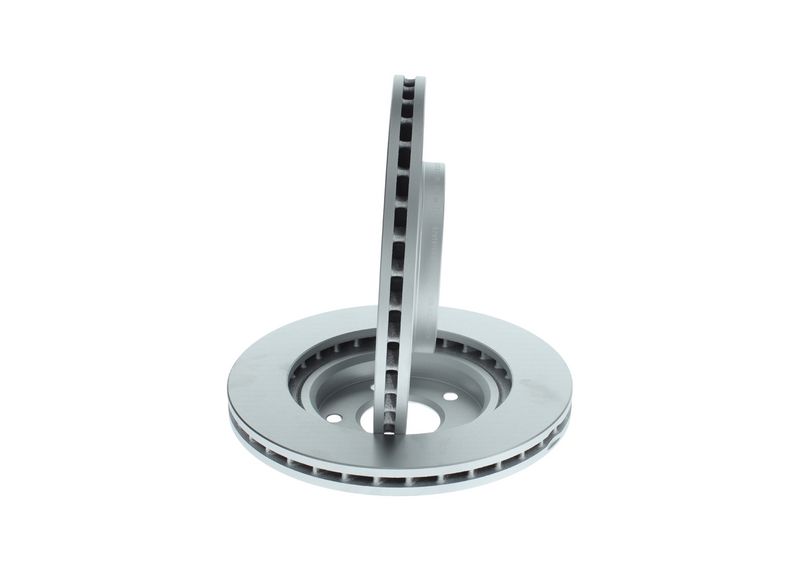

Bosch 0986479745 Brake Disc - 4
Bosch 0986479745 Brake Disc - 5

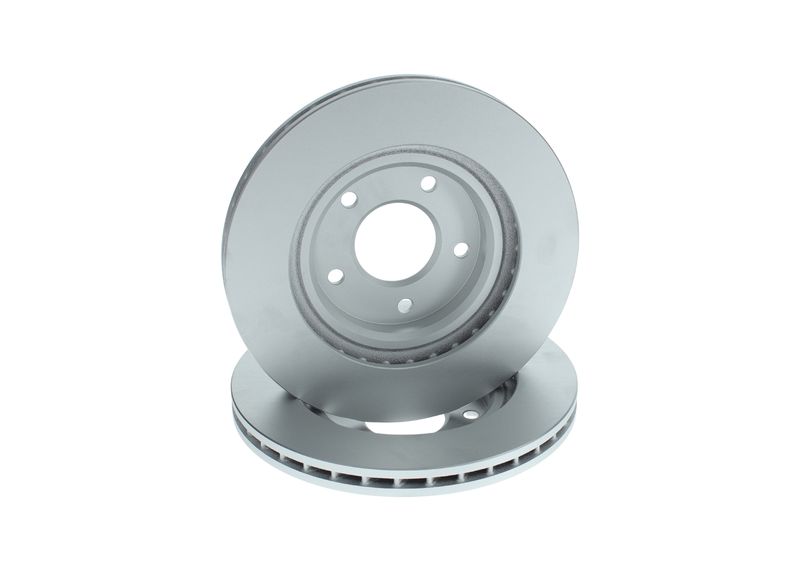

Bosch 0986479745 Brake Disc - 6
Bosch 0986479745 Brake Disc - 1
Bosch 0986479745 Brake Disc - 2
Bosch 0986479745 Brake Disc - 3
Bosch 0986479745 Brake Disc - 4
Bosch 0986479745 Brake Disc - 5
Bosch 0986479745 Brake Disc - 6
BOSCH

Bosch 0986479745 Brake Disc

Position: Check fitment
5.0/5 78 reviews
SKU: 0986479745

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£75.35 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

MITSUBISHI
ASX (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D (GA6W) 1798 CCM 116 HP From 06/2010
1.8 (GA3W) 1798 CCM 139 HP From 02/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 116 HP From 06/2010
2.0 MIVEC (GA2W) 1998 CCM 150 HP From 06/2010
2.0 MIVEC 4WD 1998 CCM 150 HP From 06/2010
1.6 MIVEC (GA1W) 1590 CCM 116 HP From 05/2010
1.6 MIVEC (GA1W) 1590 CCM 117 HP From 06/2010
1.8 DI-D (GA6W) 1798 CCM 150 HP From 06/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 150 HP From 06/2010
ASX Van (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D 4WD 1798 CCM 150 HP From 06/2010
OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK)
Description Cylinder Capacity Horse Power Year
2.0 (GF2W) 1998 CCM 146 HP 10/2012 - 12/2022
2.0 4WD (GF7W, GF2W) 1998 CCM 146 HP 10/2012 - 12/2022
BAIC
SENOVA X65
Description Cylinder Capacity Horse Power Year
2.0 T 1992 CCM 177 HP From 03/2015

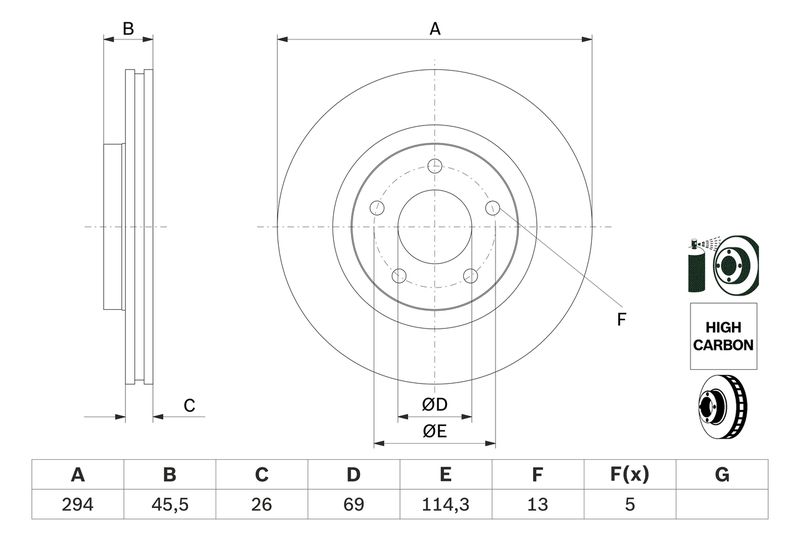

The Bosch 0986479745 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 294 mm outer diameter, 26 mm brake disc thickness, 24.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 294
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 24.4
Height [mm] : 45.5
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 69
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13
  • Vendor BOSCH
  • SKU 0986479745
  • Barcode 4047024887046
  • CHRYSLER : 05105 514AA 5105 514AA
  • CITROËN : 16 075 005 80 16 106 230 80
  • DODGE : 05105 514AA 5105 514AA
  • MITSUBISHI : 4615A075 4615A117 4615A178 5105514AA
  • PEUGEOT : 16 075 005 80 16 106 230 80
  • JEEP : 05105 514AA 5105 514AA
  • BLUE PRINT : ADA104309
  • BORG & BECK : BBD4821
  • BORG & BECK : BBD5261
  • BREMBO : 09.A637.10
  • BREMBO : 09.A637.11
  • BREMBO : 09.A637.1X
  • BREMBO : 09.A637.20
  • BREMBO : 09.A637.21
  • DELPHI : BG4246
  • FEBI BILSTEIN : 108436
  • FEBI BILSTEIN : 108456
  • FTE : 9072182
  • HELLA : 8DD 355 115-911
  • MEYLE : 32-15 523 0015/PD
  • MINTEX : MDC2101
  • TEXTAR : 92184405
  • TRW : DF4932
  • TRW : DF6206
  • VALEO : 672926
  • BOSCH : BD1575
