BOSCH

Bosch 0986479749 Brake Disc

SKU: 0986479749
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£112.12 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A6 C7 (4G2, 4GC)
Description Cylinder Capacity Horse Power Year
2.8 FSI 2773 CCM 204 HP 11/2010 - 04/2015
2.8 FSI quattro 2773 CCM 204 HP 11/2010 - 04/2015
3.0 TFSI quattro 2995 CCM 300 HP 11/2010 - 05/2012
2.0 TDI 1968 CCM 177 HP 03/2011 - 09/2018
3.0 TDI 2967 CCM 204 HP 11/2010 - 09/2018
3.0 TDI quattro 2967 CCM 204 HP 03/2011 - 09/2018
3.0 TDI quattro 2967 CCM 245 HP 03/2011 - 09/2018
2.0 TDI 1968 CCM 163 HP 03/2011 - 09/2018
2.0 TFSI 1984 CCM 180 HP 05/2011 - 09/2018
3.0 TDI quattro 2967 CCM 313 HP 11/2011 - 09/2018
3.0 TFSI quattro 2995 CCM 310 HP 03/2011 - 09/2018
2.0 TFSI 1984 CCM 211 HP 03/2011 - 05/2013
2.0 TFSI Hybrid 1984 CCM 245 HP 11/2011 - 04/2015
2.0 TDI 1968 CCM 136 HP 01/2012 - 09/2018
A6 C7 Avant (4G5, 4GD)
Description Cylinder Capacity Horse Power Year
2.8 FSI 2773 CCM 204 HP 05/2011 - 04/2015
2.8 FSI quattro 2773 CCM 204 HP 05/2011 - 04/2015
3.0 TFSI quattro 2995 CCM 300 HP 05/2011 - 05/2012
2.0 TDI 1968 CCM 177 HP 05/2011 - 09/2018
3.0 TDI 2967 CCM 204 HP 05/2011 - 09/2018
3.0 TDI quattro 2967 CCM 204 HP 05/2011 - 09/2018
3.0 TDI quattro 2967 CCM 245 HP 05/2011 - 09/2018
2.0 TDI 1968 CCM 163 HP 05/2011 - 09/2018
3.0 TDI quattro 2967 CCM 313 HP 11/2011 - 09/2018
2.0 TFSI 1984 CCM 180 HP 06/2011 - 09/2018
3.0 TFSI quattro 2995 CCM 310 HP 11/2011 - 09/2018
2.0 TDI 1968 CCM 136 HP 01/2012 - 09/2018
2.0 TDI 1968 CCM 190 HP 11/2013 - 09/2018
A7 Sportback (4GA, 4GF)
Description Cylinder Capacity Horse Power Year
3.0 TDI 2967 CCM 204 HP 11/2010 - 03/2015
3.0 TDI quattro 2967 CCM 204 HP 12/2010 - 03/2015
2.8 FSI 2773 CCM 204 HP 02/2011 - 03/2015
3.0 TFSI quattro 2995 CCM 310 HP 01/2011 - 03/2015
3.0 TDI quattro 2967 CCM 313 HP 11/2011 - 03/2015
2.8 FSI quattro 2773 CCM 204 HP 10/2010 - 03/2015
3.0 TFSI quattro 2995 CCM 300 HP 10/2010 - 05/2012
3.0 TDI quattro 2967 CCM 245 HP 10/2010 - 06/2016
3.0 TDI quattro 2967 CCM 239 HP 05/2013 - 06/2017
3.0 TDI quattro 2967 CCM 218 HP 07/2014 - 05/2018
3.0 TDI 2967 CCM 218 HP 07/2014 - 05/2018
3.0 TFSI quattro 2995 CCM 333 HP 05/2014 - 05/2018
3.0 TDI quattro 2967 CCM 272 HP 05/2014 - 05/2018
A8 D4 (4H2, 4H8, 4HC, 4HL)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 333 HP 06/2010 - 01/2018
3.0 TDI 2967 CCM 204 HP 09/2011 - 09/2013
3.0 TDI quattro 2967 CCM 211 HP 08/2010 - 11/2015
S8 quattro 3993 CCM 520 HP 04/2012 - 01/2018
3.0 TFSI quattro 2995 CCM 310 HP 11/2011 - 01/2018
2.0 TFSI hybrid 1984 CCM 245 HP 02/2012 - 11/2015
3.0 TFSI quattro 2995 CCM 290 HP 07/2010 - 04/2014
4.2 FSI quattro 4163 CCM 371 HP 11/2009 - 12/2012
3.0 TDI quattro 2967 CCM 250 HP 07/2010 - 01/2018
4.2 TDI quattro 4134 CCM 351 HP 11/2009 - 04/2014
4.2 TDI quattro 4134 CCM 385 HP 10/2013 - 01/2018
3.0 TDI quattro 2967 CCM 258 HP 10/2013 - 01/2018

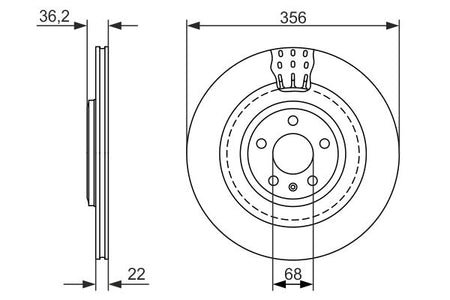

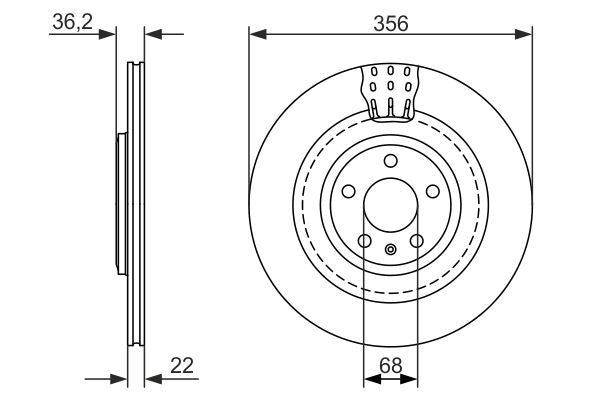

The Bosch 0986479749 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 356 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 356
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 36.3
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479749
  • Barcode 4047024887145
  • AUDI : 4H0 615 601 F 4H0 615 601 L 4H0 615 601 P
  • VW : 4H0 615 601 F 4H0 615 601 L 4H0 615 601 P
  • APEC : DSK3102
  • BLUE PRINT : ADV184393
  • BORG & BECK : BBD6085S
  • BREMBO : 09.C170.11
  • BREMBO : 09.C170.1S
  • BREMBO : 09.C170.1X
  • DELPHI : BG4387C
  • FEBI BILSTEIN : 44097
  • FTE : 9082843
  • HELLA : 8DD 355 125-551
  • MINTEX : MDC2768C
  • National : NBD2056
  • TEXTAR : 92241803
  • TRW : DF6343S
  • VALEO : 197560
  • VALEO : 673079
  • BOSCH : BD1579
  • BOSCH : E1 90R-02C0339/1927
