BOSCH

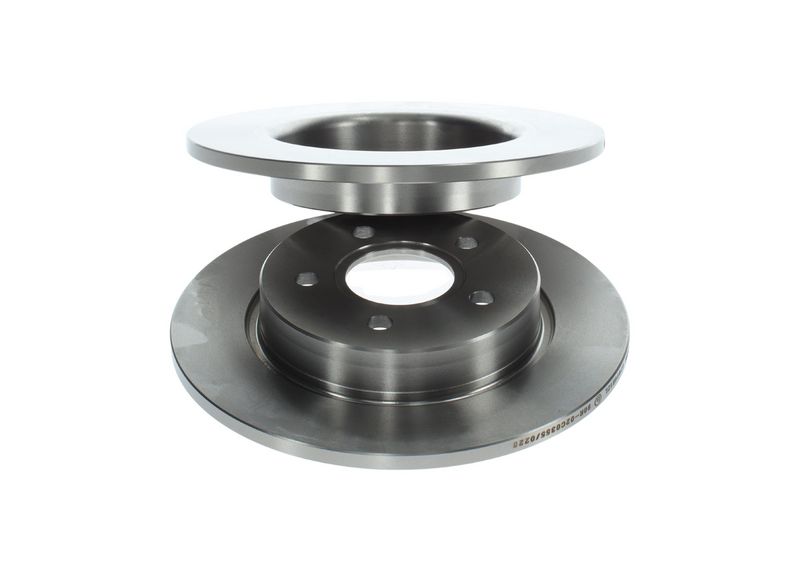

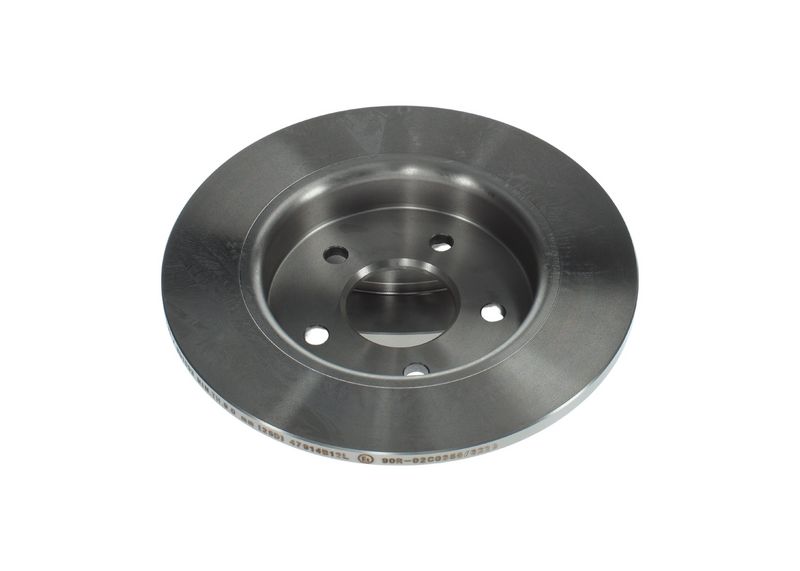

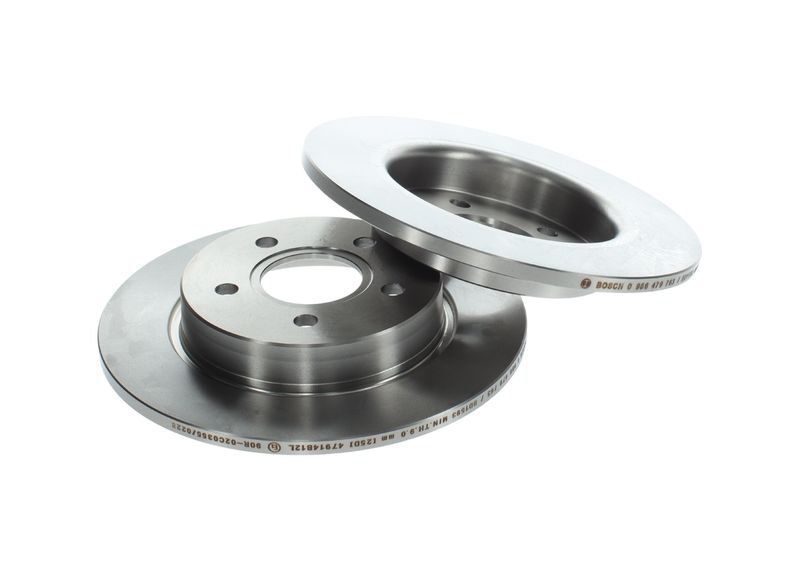

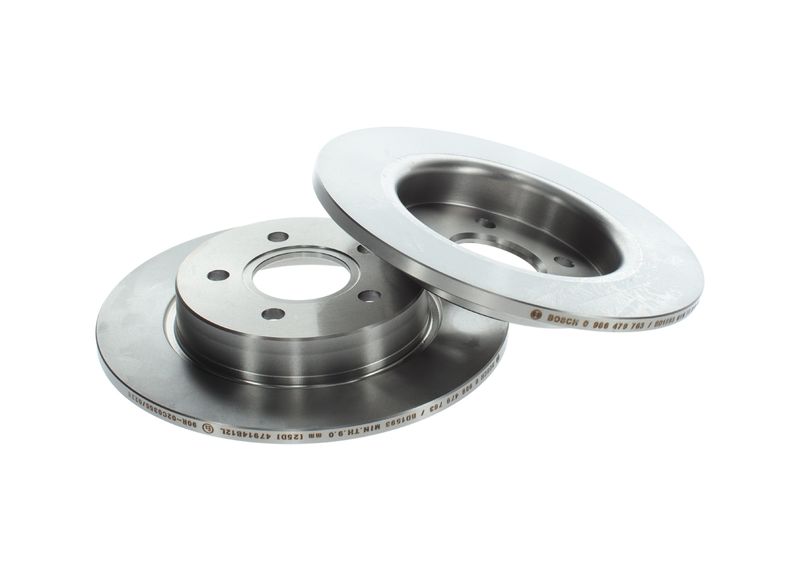

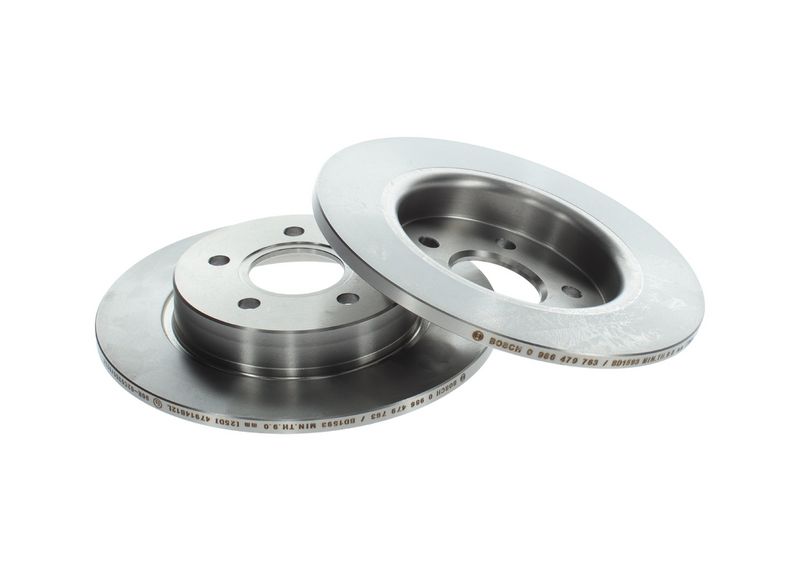

Bosch 0986479763 Brake Disc

SKU: 0986479763
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£60.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FOCUS III
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 105 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 125 HP 07/2010 - 12/2017
1.6 Flexifuel 1596 CCM 120 HP 07/2010 - 02/2020
1.6 EcoBoost 1596 CCM 150 HP 07/2010 - 06/2014
1.6 EcoBoost 1596 CCM 182 HP 07/2010 - 06/2014
1.6 TDCi 1560 CCM 95 HP 07/2010 - 12/2017
1.6 TDCi 1560 CCM 115 HP 07/2010 - 12/2017
2.0 TDCi 1997 CCM 115 HP 07/2010 - 06/2014
2.0 TDCi 1997 CCM 140 HP 07/2010 - 06/2014
2.0 TDCi 1997 CCM 163 HP 07/2010 - 06/2014
2.0 TDCi 1997 CCM 136 HP 07/2010 - 06/2014
1.6 Ti 1596 CCM 85 HP 08/2011 - 12/2017
1.0 EcoBoost 998 CCM 125 HP 02/2012 - 12/2017
1.0 EcoBoost 998 CCM 100 HP 02/2012 - 12/2017
1.6 LPG 1596 CCM 120 HP 02/2012 - 02/2020
FOCUS III Turnier
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 105 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 125 HP 07/2010 - 02/2020
1.6 Flexifuel 1596 CCM 120 HP 07/2010 - 02/2020
1.6 EcoBoost 1596 CCM 150 HP 07/2010 - 06/2014
1.6 EcoBoost 1596 CCM 182 HP 07/2010 - 06/2014
1.6 TDCi 1560 CCM 95 HP 07/2010 - 02/2020
1.6 TDCi 1560 CCM 115 HP 07/2010 - 02/2020
2.0 TDCi 1997 CCM 115 HP 07/2010 - 06/2014
2.0 TDCi 1997 CCM 140 HP 07/2010 - 06/2014
2.0 TDCi 1997 CCM 163 HP 07/2010 - 06/2014
1.6 Ti 1596 CCM 85 HP 08/2011 - 02/2020
1.0 EcoBoost 998 CCM 100 HP 02/2012 - 02/2020
1.6 LPG 1596 CCM 120 HP 02/2012 - 02/2020
1.0 EcoBoost 998 CCM 125 HP 02/2012 - 02/2020
2.0 TDCi 1997 CCM 136 HP 07/2010 - 06/2014
FOCUS III Saloon
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 105 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 125 HP 07/2010 - 02/2020
1.6 Flexifuel 1596 CCM 120 HP 07/2010 - 02/2020
1.6 EcoBoost 1596 CCM 150 HP 07/2010 - 06/2014
1.6 EcoBoost 1596 CCM 182 HP 07/2010 - 06/2014
1.6 TDCi 1560 CCM 95 HP 07/2010 - 02/2020
1.6 TDCi 1560 CCM 115 HP 07/2010 - 02/2020
2.0 TDCi 1997 CCM 115 HP 07/2010 - 06/2014
2.0 TDCi 1997 CCM 140 HP 07/2010 - 06/2014
2.0 TDCi 1997 CCM 163 HP 07/2010 - 06/2014
1.6 Ti 1596 CCM 85 HP 08/2011 - 02/2020
1.0 EcoBoost 998 CCM 100 HP 02/2012 - 02/2020
1.0 EcoBoost 998 CCM 125 HP 02/2012 - 02/2020
2.0 TDCi 1997 CCM 136 HP 07/2010 - 06/2014
1.6 Flexifuel 1596 CCM 150 HP 07/2013 - 02/2020
FOCUS III Hatchback Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 115 HP 02/2012 - 12/2017
1.5 TDCi 1499 CCM 95 HP 09/2014 - 12/2017
1.6 Ti 1596 CCM 105 HP 01/2011 - 02/2020
1.6 EcoBoost 1596 CCM 182 HP 11/2011 - 06/2014
1.6 EcoBoost 1596 CCM 150 HP 11/2011 - 06/2014
1.6 TDCi 1560 CCM 95 HP 01/2011 - 12/2017

The Bosch 0986479763 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 271 mm outer diameter, 11 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

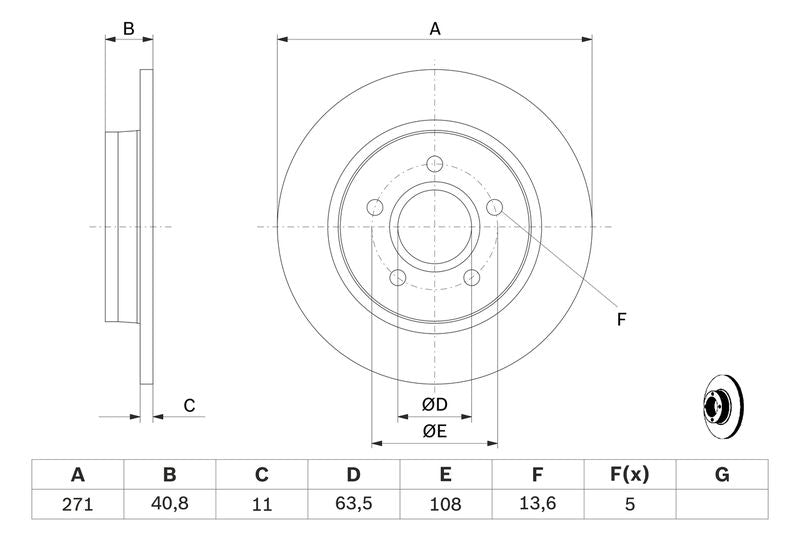

Function : Brake Disc
Outer Diameter [mm] : 271
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9
Height [mm] : 40.8
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 63.5
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.6
  • Vendor BOSCH
  • SKU 0986479763
  • Barcode 4047024949584
  • FORD : BV612A315BA 1704765 2023618 5302181
  • APEC : DSK2926
  • APEC : SDK6705
  • BLUE PRINT : ADF124323
  • BORG & BECK : BBD5241
  • BREMBO : 08.A725.10
  • BREMBO : 08.A725.11
  • BREMBO : 08.A725.1X
  • DELPHI : BG4386C
  • Fahren : FBD6705
  • FEBI BILSTEIN : 39689
  • FTE : 9072109
  • FTE : 9082158
  • HELLA : 8DD 355 118-221
  • MEYLE : 715 523 0022
  • MEYLE : 715 523 0022/PD
  • MINTEX : MDC2358
  • NAPA : NBD5206
  • National : NBD1707
  • SKF : VKBD 90364 S2
  • TEXTAR : 92239003
  • TRW : DF6139
  • VALEO : 197493
  • VALEO : 672628
  • BOSCH : BD1593
  • BOSCH : E1 90 R - 02C0355/0228
