BOSCH

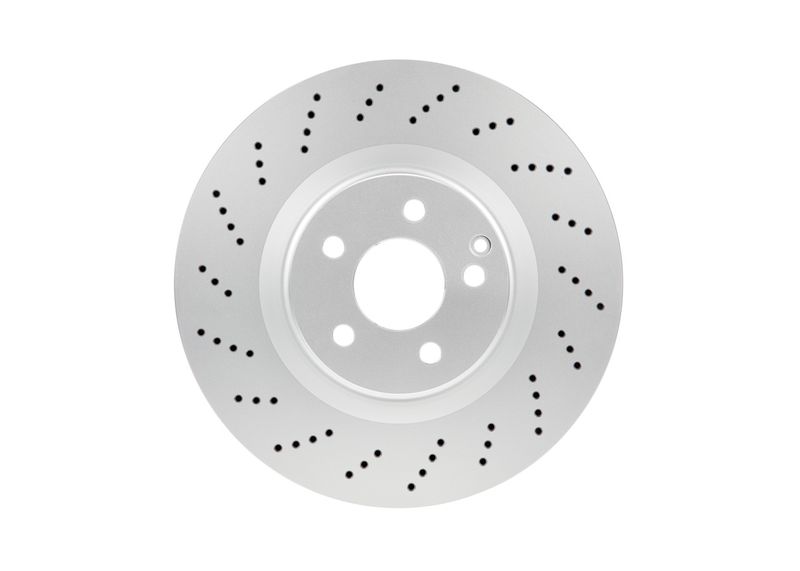

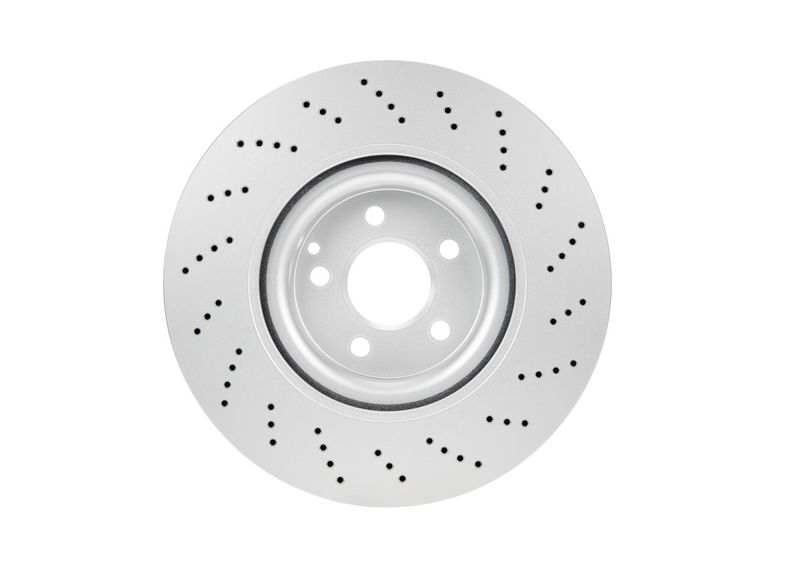

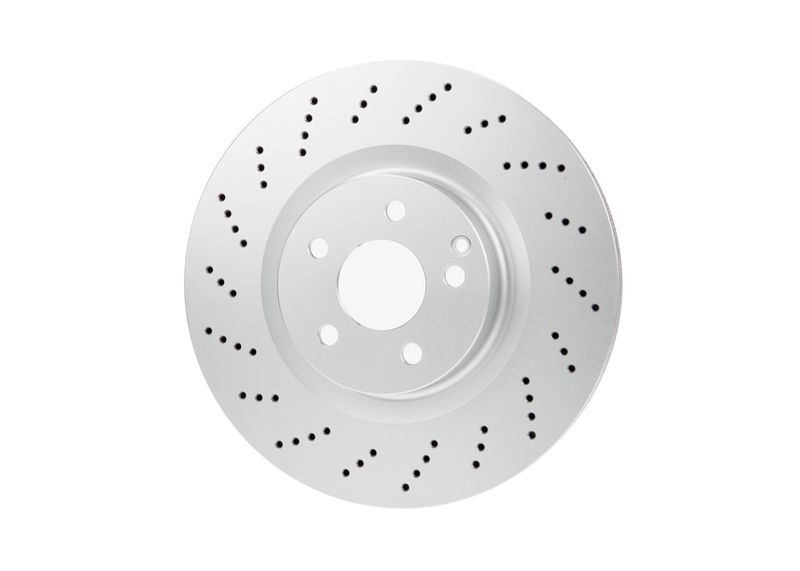

Bosch 0986479764 Brake Disc

SKU: 0986479764
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£78.99 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
C-CLASS Coupe (C204)
Description Cylinder Capacity Horse Power Year
C 250 CDI (204.303) 2143 CCM 204 HP From 06/2011
C 180 (204.349) 1796 CCM 156 HP From 06/2011
C 250 (204.347) 1796 CCM 204 HP From 06/2011
C 200 CGI (204.348) 1796 CCM 184 HP From 06/2011
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 350 CDI (212.023) 2987 CCM 265 HP 03/2011 - 12/2015
E 350 4-matic (212.088) 3498 CCM 306 HP 09/2011 - 12/2015
E 350 (212.059) 3498 CCM 306 HP 09/2011 - 12/2015
E-CLASS Coupe (C207)
Description Cylinder Capacity Horse Power Year
E 500 (207.372) 5461 CCM 388 HP 01/2009 - 12/2016
E 400 (207.365) 2996 CCM 333 HP 06/2013 - 12/2016
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 350 CDI (212.223) 2987 CCM 265 HP 07/2011 - 12/2013
E 350 (212.259) 3498 CCM 306 HP 09/2011 - 12/2014
E 350 4-matic (212.288) 3498 CCM 306 HP 09/2011 - 12/2016
E-CLASS Convertible (A207)
Description Cylinder Capacity Horse Power Year
E 500 (207.472) 5461 CCM 388 HP 01/2010 - 12/2011

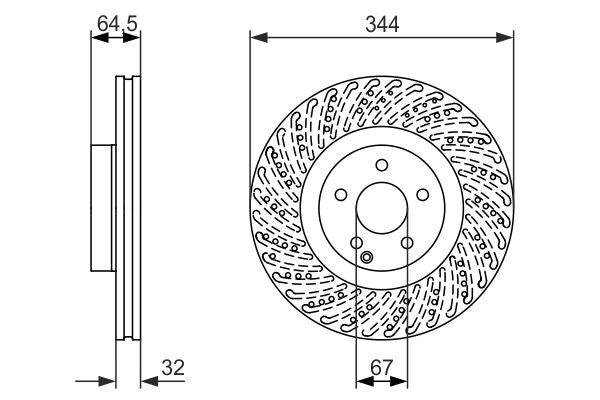

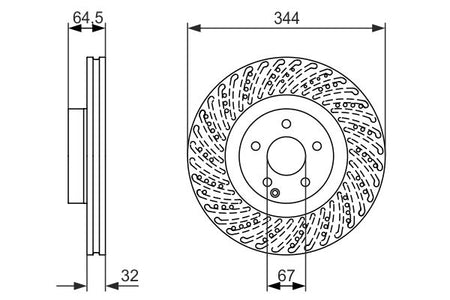

The Bosch 0986479764 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 344 mm outer diameter, 32 mm brake disc thickness, 30 mm minimum thickness, and perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 344
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 30
Height [mm] : 64.6
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Perforated
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479764
  • Barcode 4047024943506
  • MERCEDES-BENZ : A 000 421 14 12 A 000 421 15 12 A 204 421 11 12 A 207 421 00 12 000 421 14 12 000 421 15 12 204 421 11 12 207 421 00 12
  • APEC : DSK3213
  • BLUE PRINT : ADU174363
  • BORG & BECK : BBD5953S
  • BREMBO : 09.B746.51
  • BREMBO : 09.B746.61
  • DELPHI : BG9188C
  • FEBI BILSTEIN : 37724
  • FEBI BILSTEIN : 44007
  • FEBI BILSTEIN : 44008
  • FTE : 9071330
  • FTE : 9081161
  • HELLA : 8DD 355 116-951
  • MEYLE : 083 521 0019/PD
  • MINTEX : MDC2251
  • NAPA : NBD5845
  • National : NBD2118
  • TEXTAR : 92224605
  • TRW : DF6775S
  • BOSCH : BD1594
  • BOSCH : E1 90R-02C0593/1811
