BOSCH

Bosch 0986479770 Brake Disc

SKU: 0986479770

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£46.77 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

i10 I (PA)

Description	Cylinder Capacity	Horse Power	Year
1.1 CRDi	1120 CCM	75 HP	01/2008 - 12/2011
1.2	1248 CCM	87 HP	01/2011 - 05/2018

i10 II (BA, IA)

Description	Cylinder Capacity	Horse Power	Year
1.0	998 CCM	67 HP	08/2013 - 12/2019
1.2	1248 CCM	87 HP	12/2013 - 12/2019

i10 III (AC3, AI3)

Description	Cylinder Capacity	Horse Power	Year
1.2 MPi	1197 CCM	84 HP	From 09/2019
1.0 MPi	998 CCM	67 HP	From 09/2019
1.0 T-GDi	998 CCM	100 HP	From 02/2020
1.0 MPi	998 CCM	63 HP	From 03/2024
1.2 MPi	1197 CCM	79 HP	From 03/2024

KIA

PICANTO I (SA)

Description	Cylinder Capacity	Horse Power	Year
1.1 CRDi	1120 CCM	75 HP	10/2005 - 04/2011

PICANTO II (TA)

Description	Cylinder Capacity	Horse Power	Year
1.0	998 CCM	69 HP	05/2011 - 03/2017
1.0 Bi-Fuel	998 CCM	82 HP	05/2011 - 10/2014
1.2	1248 CCM	85 HP	05/2011 - 12/2016
1.0 LPG	998 CCM	67 HP	08/2013 - 03/2017
1.0	998 CCM	67 HP	05/2011 - 03/2017
1.2	1248 CCM	87 HP	09/2011 - 02/2017

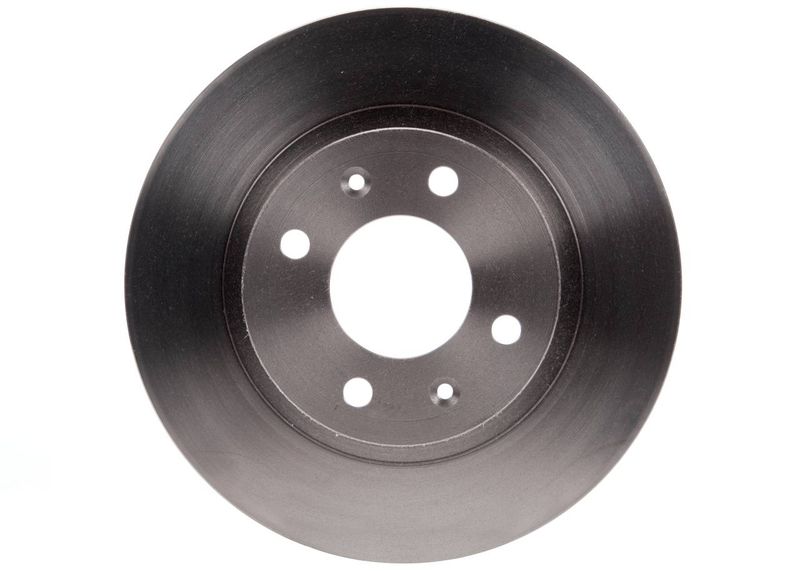

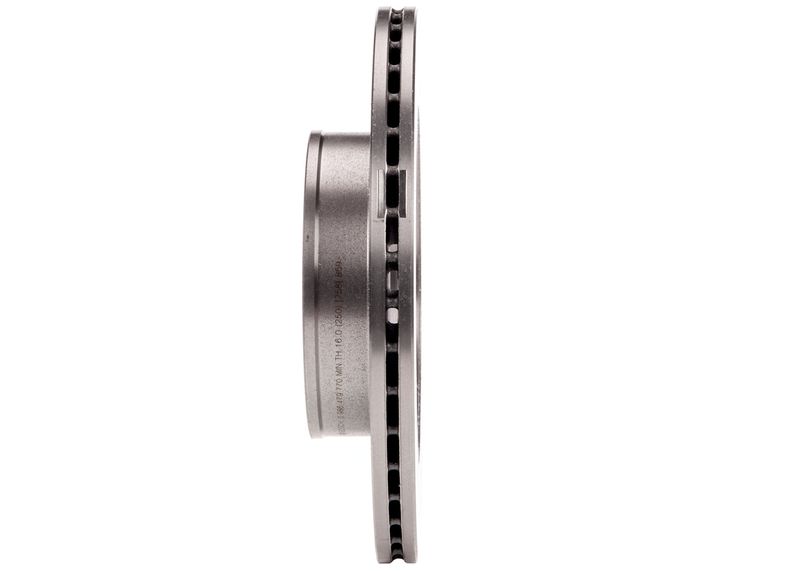

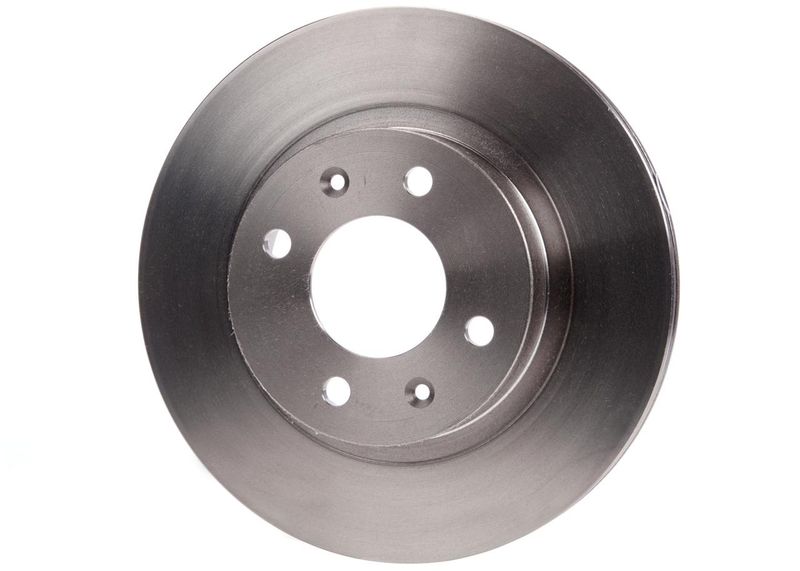

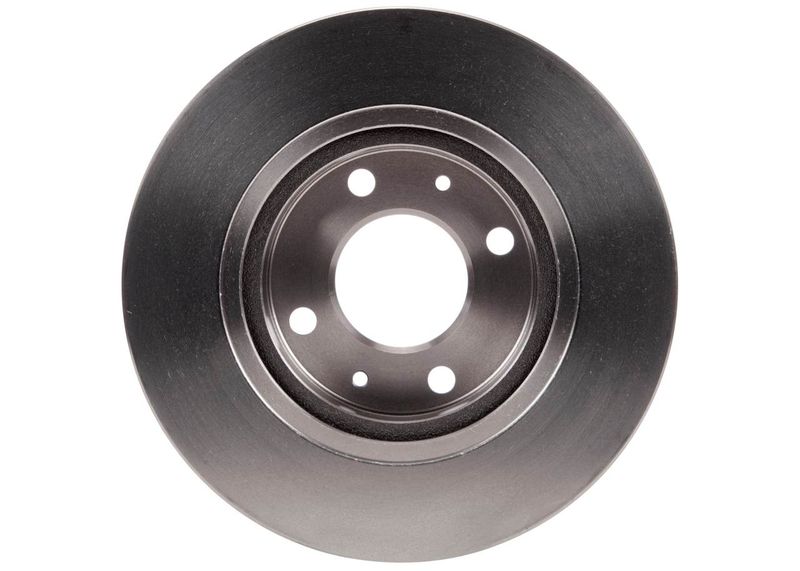

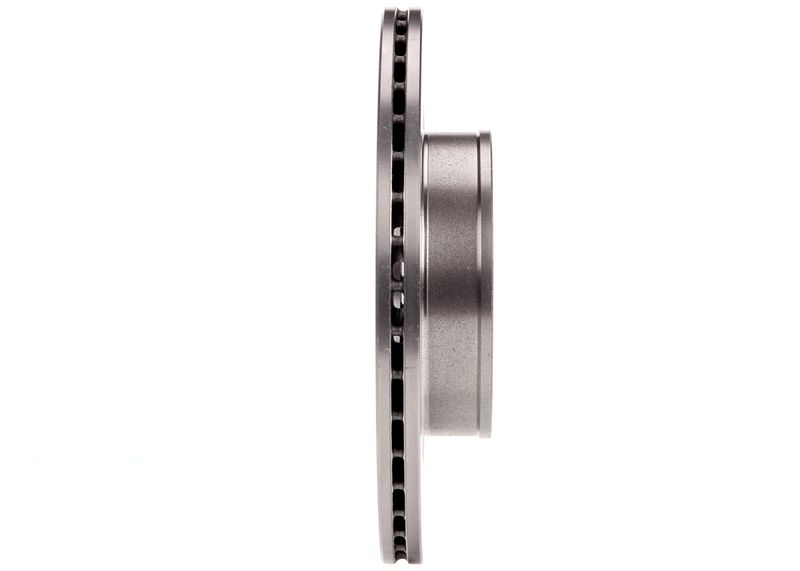

The Bosch 0986479770 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 252 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

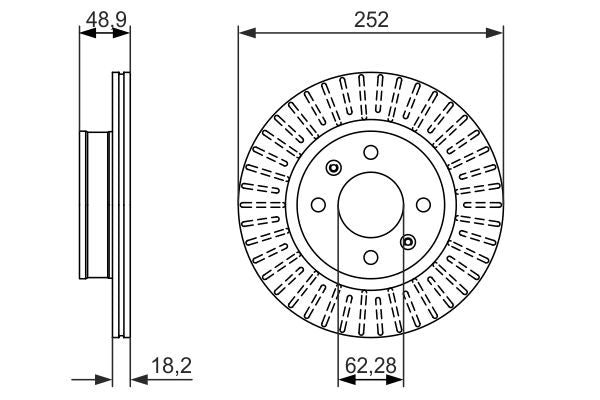

Outer Diameter [mm] : 252

Brake Disc Thickness [mm] : 18

Minimum thickness [mm] : 16

Height [mm] : 48.7

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 62.2

Number of Holes : 4

Surface : Oiled

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.6

APEC : DSK2543
APEC : SDK6520
BLUE PRINT : ADG043142
BORG & BECK : BBD4701
BREMBO : 09.A867.10
DELPHI : BG4295
Fahren : FBD6520
FEBI BILSTEIN : 108511
FEBI BILSTEIN : 108593
FTE : 9072188
FTE : 9082788
HELLA : 8DD 355 116-201
MEYLE : 28-15 521 0010
MINTEX : MDC2166
NAPA : NBD5253
National : NBD1686
SKF : VKBD 80397 V2
TEXTAR : 92196500
TEXTAR : 92196503
TRW : DF6116
VALEO : 197466
VALEO : 672765

Bosch 0986479770 Brake Disc
