BOSCH

Bosch 0986479772 Brake Disc

SKU: 0986479772
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£60.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (F10)
Description Cylinder Capacity Horse Power Year
525 d xDrive 1995 CCM 211 HP 09/2011 - 10/2016
525 d 1995 CCM 211 HP 09/2011 - 10/2016
535 i xDrive 2979 CCM 306 HP 03/2011 - 10/2016
528 i 1997 CCM 245 HP 09/2011 - 10/2016
528 i xDrive 1997 CCM 245 HP 09/2011 - 10/2016
530 i 2996 CCM 272 HP 05/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 10/2016
525 d xDrive 1995 CCM 218 HP 09/2011 - 10/2016
530 d 2993 CCM 258 HP 09/2011 - 10/2016
530 d xDrive 2993 CCM 258 HP 03/2011 - 10/2016
535 d 2993 CCM 313 HP 09/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
528 i 1997 CCM 245 HP 09/2011 - 02/2017
528 i xDrive 1997 CCM 245 HP 09/2011 - 02/2017
530 i 2996 CCM 272 HP 07/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 02/2017
525 d xDrive 1995 CCM 218 HP 09/2011 - 02/2017
530 d 2993 CCM 258 HP 09/2011 - 02/2017
530 d xDrive 2993 CCM 258 HP 03/2011 - 02/2017
535 i xDrive 2979 CCM 306 HP 09/2011 - 02/2017
528 i 2996 CCM 258 HP 11/2009 - 08/2011
6 Convertible (F12)
Description Cylinder Capacity Horse Power Year
640 i 2979 CCM 320 HP 09/2011 - 06/2018
640 i xDrive 2979 CCM 320 HP 03/2013 - 06/2018
6 Coupe (F13)
Description Cylinder Capacity Horse Power Year
640 i 2979 CCM 320 HP 07/2011 - 10/2017
640 i xDrive 2979 CCM 320 HP 03/2013 - 10/2017
6 Gran Coupe (F06)
Description Cylinder Capacity Horse Power Year
640 i 2979 CCM 320 HP 03/2012 - 10/2018
640 i xDrive 2979 CCM 320 HP 03/2013 - 10/2018

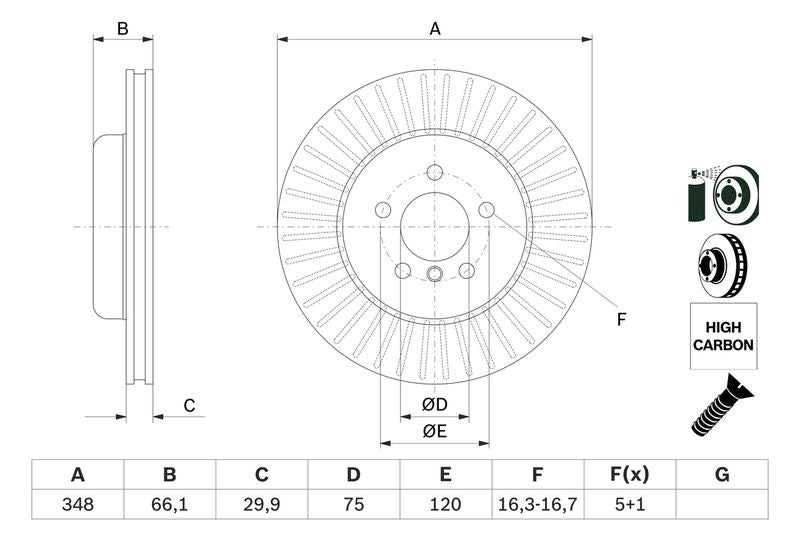

The Bosch 0986479772 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 348 mm outer diameter, 30 mm brake disc thickness, 28.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 348
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 28.4
Height [mm] : 66.2
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 75
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.6
  • Vendor BOSCH
  • SKU 0986479772
  • Barcode 4047024943667
  • BMW : 34 10 6 898 723 34 11 6 884 301
  • APEC : DSK3254
  • APEC : DSK3254B
  • APEC : SDK6855
  • BLUE PRINT : ADB114384
  • BORG & BECK : BBD7005S
  • BREMBO : 09.C409.13
  • DELPHI : BG9154BC
  • DELPHI : BG9154C
  • FEBI BILSTEIN : 105723
  • HELLA : 8DD 355 120-651
  • MEYLE : 383 521 1008/PD
  • NAPA : NBD5525
  • National : NBD1877
  • National : NBD1877B
  • SKF : VKBD 80197 V1
  • TEXTAR : 92265725
  • TRW : DF6615S
  • VALEO : 672983
  • BOSCH : BD1602
  • BOSCH : E1 90R-02C0074/1633
