BOSCH

Bosch 0986479775 Brake Disc

SKU: 0986479775

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£72.49 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

Z4 Roadster (E89)

Description	Cylinder Capacity	Horse Power	Year
sDrive 20 i	1997 CCM	184 HP	09/2011 - 08/2016
sDrive 28 i	1997 CCM	245 HP	09/2011 - 08/2016
sDrive 23 i	2497 CCM	204 HP	03/2009 - 08/2011
sDrive 30 i	2996 CCM	258 HP	02/2009 - 08/2011
sDrive 18 i	1997 CCM	156 HP	04/2013 - 08/2016
sDrive 20 i	1997 CCM	163 HP	09/2011 - 08/2016
sDrive 30 i	2996 CCM	265 HP	05/2009 - 08/2011

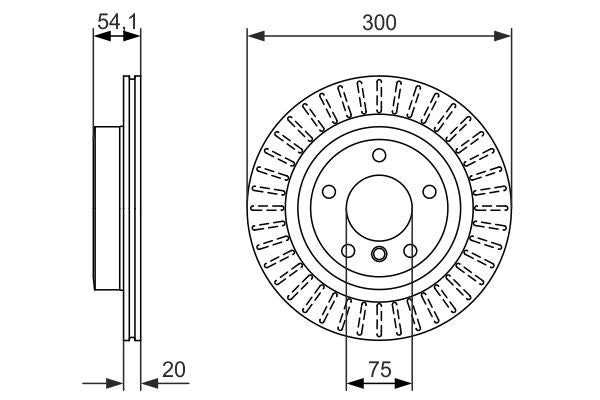

The Bosch 0986479775 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 20 mm brake disc thickness, 18.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 300

Brake Disc Thickness [mm] : 20

Minimum thickness [mm] : 18.4

Height [mm] : 54

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 75

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.6

BLUE PRINT : ADB114387
BORG & BECK : BBD5416
BREMBO : 09.R121.11
DELPHI : BG4223C
FEBI BILSTEIN : 43877
HELLA : 8DD 355 123-011
MEYLE : 315 523 0036
MEYLE : 315 523 0036/PD
MINTEX : MDC2714
National : NBD2110
SKF : VKBD 90588 V2
TEXTAR : 92196605
TRW : DF6329

Bosch 0986479775 Brake Disc
