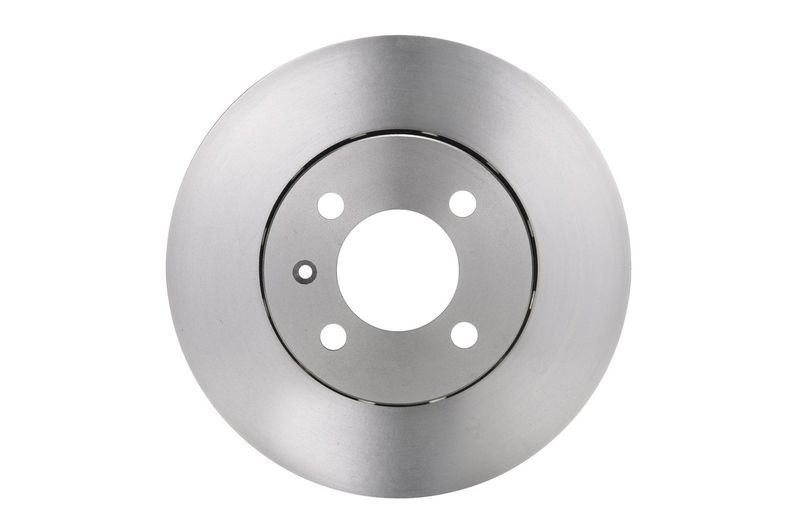

Bosch 0986479776 Brake Disc - 1
Bosch 0986479776 Brake Disc - 2

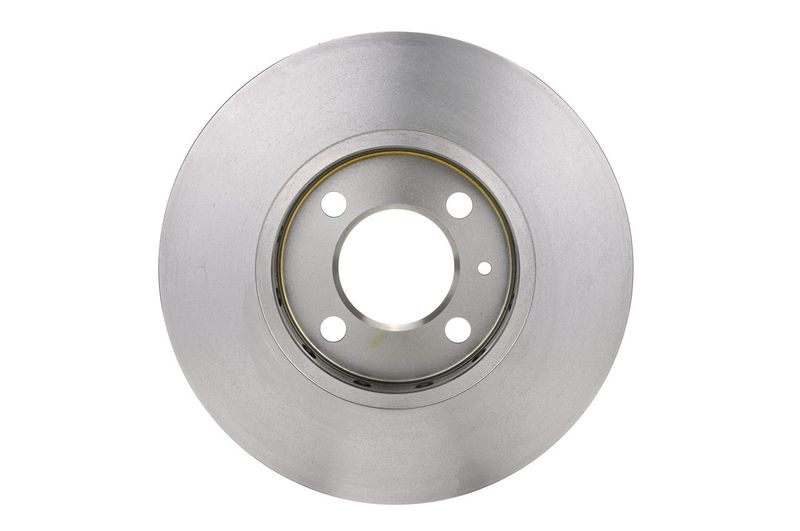

Bosch 0986479776 Brake Disc - 3
Bosch 0986479776 Brake Disc - 4

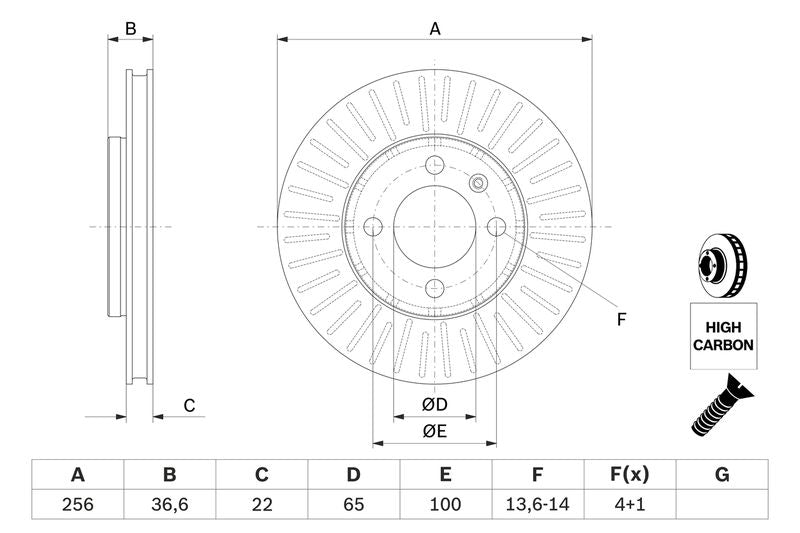

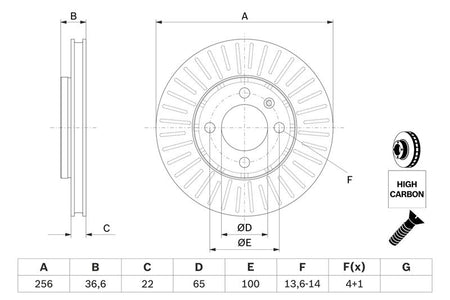

Bosch 0986479776 Brake Disc - 5

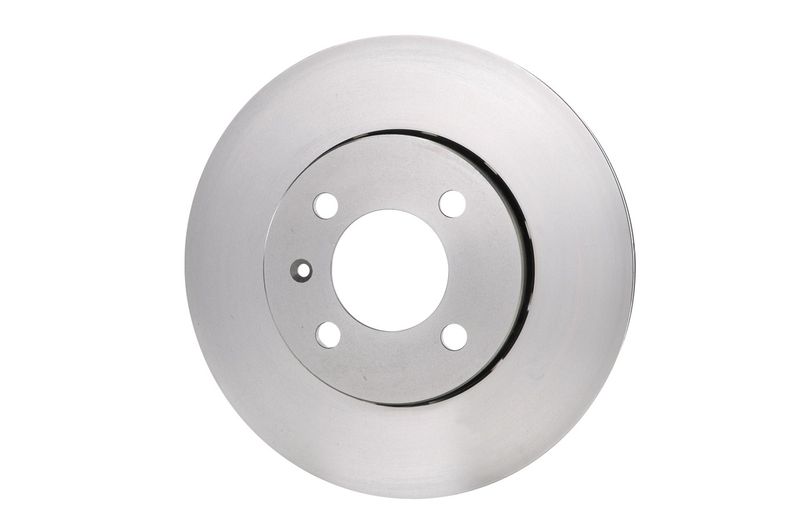

Bosch 0986479776 Brake Disc - 6
Bosch 0986479776 Brake Disc - 1
Bosch 0986479776 Brake Disc - 2
Bosch 0986479776 Brake Disc - 3
Bosch 0986479776 Brake Disc - 4
Bosch 0986479776 Brake Disc - 5
Bosch 0986479776 Brake Disc - 6
BOSCH

Bosch 0986479776 Brake Disc

SKU: 0986479776
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£47.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SEAT
Mii (KF1, KE1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 60 HP 10/2011 - 07/2019
1.0 999 CCM 75 HP 10/2011 - 07/2019
1.0 EcoFuel 999 CCM 68 HP 10/2012 - 07/2019
electric 83 HP From 01/2020
SKODA
CITIGO (NF1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 60 HP 10/2011 - 08/2019
1.0 999 CCM 75 HP 10/2011 - 08/2019
1.0 CNG 999 CCM 68 HP 11/2012 - 08/2019
E-CITIGO (NE1)
Description Cylinder Capacity Horse Power Year
e iV 83 HP 09/2019 - 09/2021
VW
LOAD UP! (121, 122, BL1, BL2)
Description Cylinder Capacity Horse Power Year
e-Load Up 82 HP 12/2014 - 08/2019
1.0 EcoFuel 999 CCM 68 HP 11/2012 - 08/2020
1.0 999 CCM 60 HP 11/2012 - 11/2019
UP! (121, 122, BL1, BL2, BL3, 123)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 60 HP 08/2011 - 08/2020
1.0 999 CCM 75 HP 08/2011 - 11/2019
1.0 EcoFuel 999 CCM 68 HP 11/2012 - 11/2023
e-Up 82 HP 07/2013 - 08/2019
1.0 TSI 999 CCM 90 HP 05/2016 - 08/2019
1.0 GTI 999 CCM 115 HP 11/2017 - 11/2023
e-Up 83 HP From 08/2019
1.0 999 CCM 65 HP 08/2020 - 11/2023

The Bosch 0986479776 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 256 mm outer diameter, 22 mm brake disc thickness, 19 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 19
Height [mm] : 36.7
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 65
Number of Holes : 4
Surface : Oiled
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479776
  • Barcode 4047024946910
  • AUDI : 1S0 615 301 L 1S0 615 301 M
  • SEAT : 1S0 615 301 H 1S0 615 301 L 1S0 615 301 M 1S0615301
  • SKODA : 1S0 615 301 H 1S0 615 301 L 1S0 615 301 M 1S0615301
  • VW : 1S0 615 301 H 1S0 615 301 L 1S0 615 301 M 1S0615301
  • APEC : DSK2946
  • APEC : SDK6717
  • BLUE PRINT : ADV184351
  • BORG & BECK : BBD5236
  • BREMBO : 09.B975.10
  • BREMBO : 09.B975.11
  • DELPHI : BG4647C
  • Fahren : FBD6717
  • FEBI BILSTEIN : 43841
  • FTE : 9072178
  • FTE : 9082089
  • FTE : 9082795
  • HELLA : 8DD 355 118-261
  • MEYLE : 115 521 0006
  • MEYLE : 183 521 0006/PD
  • MINTEX : MDC2758
  • NAPA : NBD5330
  • National : NBD1792
  • SKF : VKBD 80096 V2
  • TEXTAR : 92287003
  • TRW : DF6252
  • VALEO : 197579
  • VALEO : 672619
