BOSCH

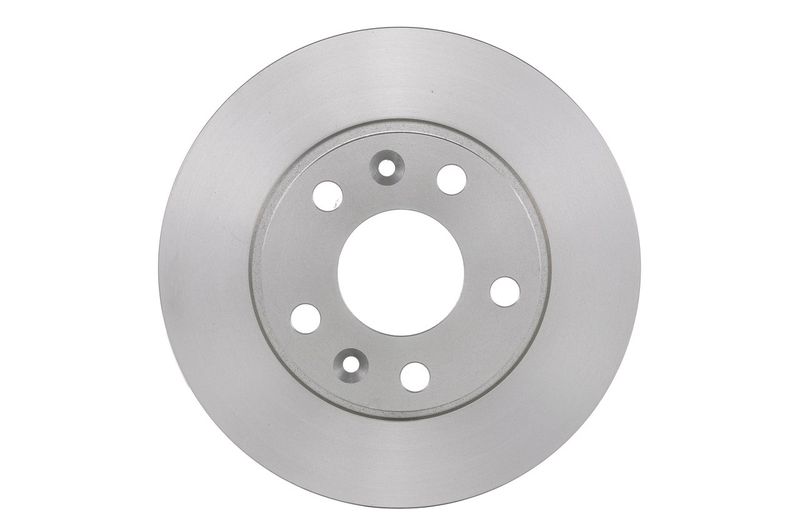

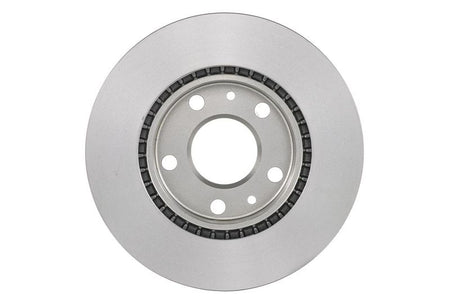

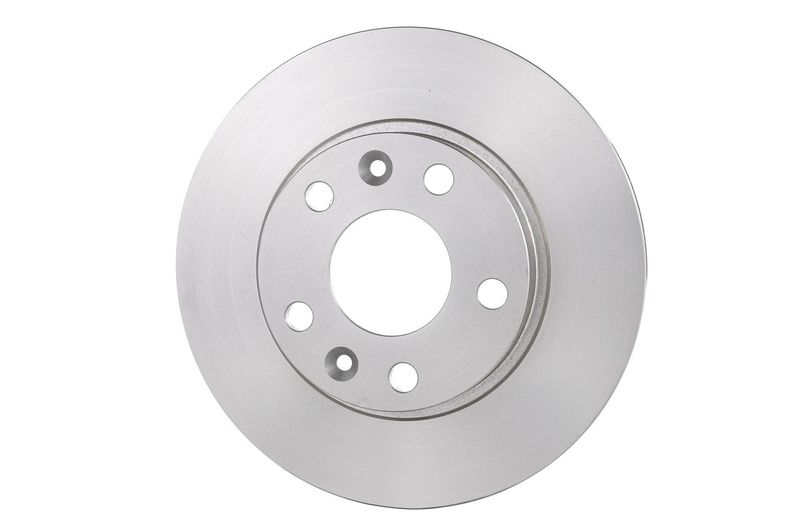

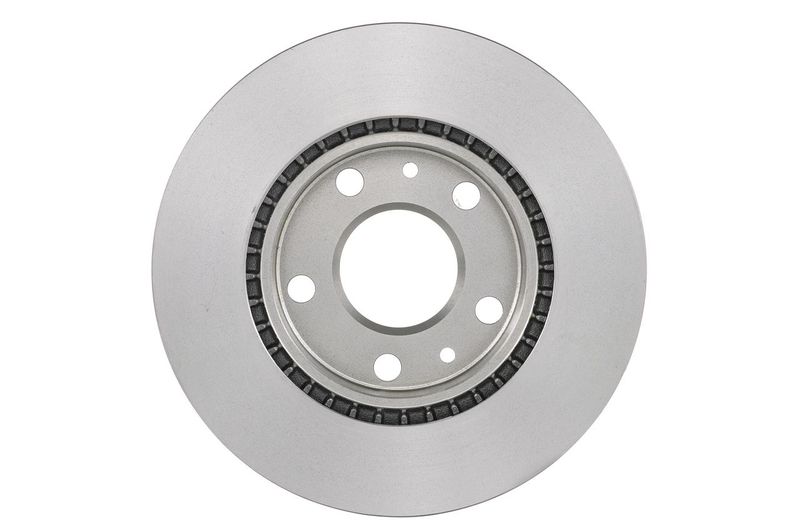

Bosch 0986479779 Brake Disc

SKU: 0986479779
Your selected vehicle
Out of stock
Out of Stock
£61.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DACIA
DUSTER (HS_)
Description Cylinder Capacity Horse Power Year
1.5 dCi (HSAJ) 1461 CCM 90 HP 10/2010 - 01/2018
1.5 dCi 4x4 1461 CCM 90 HP 10/2010 - 01/2018
1.5 dCi 4x4 (HSMC, HSMD) 1461 CCM 110 HP 10/2010 - 01/2018
1.6 16V LPG 1598 CCM 105 HP 04/2011 - 01/2018
1.6 16V 1598 CCM 105 HP 04/2010 - 01/2018
1.6 16V 4x4 1598 CCM 105 HP 06/2010 - 01/2018
1.5 dCi 1461 CCM 86 HP 04/2010 - 01/2018
1.5 dCi (HSMC) 1461 CCM 107 HP 06/2010 - 01/2018
1.5 dCi 1461 CCM 109 HP 08/2013 - 01/2018
1.6 16V Hi-Flex 1598 CCM 105 HP 08/2010 - 01/2018
1.2 TCe 125 1197 CCM 125 HP 10/2013 - 01/2018
1.5 dCi 4x4 1461 CCM 109 HP 08/2013 - 01/2018
1.2 TCe 125 4x4 1197 CCM 125 HP 06/2015 - 01/2018
1.6 SCe 115 1598 CCM 115 HP 06/2015 - 01/2018
1.6 SCe 115 4x4 1598 CCM 115 HP 06/2015 - 01/2018
DUSTER SUV Van
Description Cylinder Capacity Horse Power Year
1.6 16V Hi-Flex 1598 CCM 105 HP From 04/2011
1.6 16V 4x4 1598 CCM 105 HP From 04/2011
1.5 dCi 1461 CCM 90 HP From 04/2011
1.5 dCi 4x4 1461 CCM 90 HP From 04/2011
1.5 dCi 1461 CCM 109 HP From 04/2013
1.5 dCi 4x4 1461 CCM 109 HP From 04/2013
1.2 TCe 125 4x4 (HSAU) 1197 CCM 125 HP From 10/2013
1.6 SCe 115 1598 CCM 115 HP From 06/2015
1.6 SCe 115 4x4 1598 CCM 115 HP 06/2015 - 01/2018
1.6 SCe 115 LPG 1598 CCM 115 HP 06/2015 - 01/2018
DUSTER (HM_)
Description Cylinder Capacity Horse Power Year
1.6 SCe 115 (HMM1) 1598 CCM 115 HP From 10/2017
1.6 SCe 115 4x4 (HMM1) 1598 CCM 115 HP From 10/2017
1.5 dCi 95 (HMAF) 1461 CCM 95 HP From 10/2017
1.5 dCi 115 (HMAD) 1461 CCM 116 HP From 10/2017
1.5 dCi 115 4x4 (HMAD) 1461 CCM 116 HP From 10/2017
1.3 TCe 130 (HMMF) 1332 CCM 131 HP From 01/2019
1.3 TCe 150 (HMM3) 1332 CCM 150 HP From 01/2019
1.3 TCe 130 4x4 (HMMF) 1332 CCM 131 HP From 01/2019
1.3 TCe 150 4x4 (HMM3) 1332 CCM 150 HP From 01/2019
1.0 TCe 100 (HMMT) 999 CCM 101 HP From 01/2019

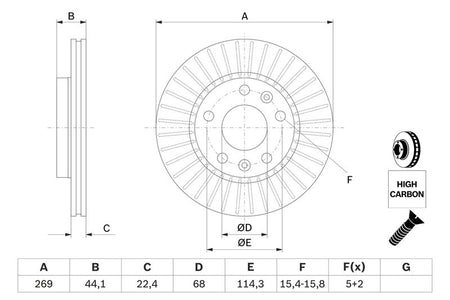

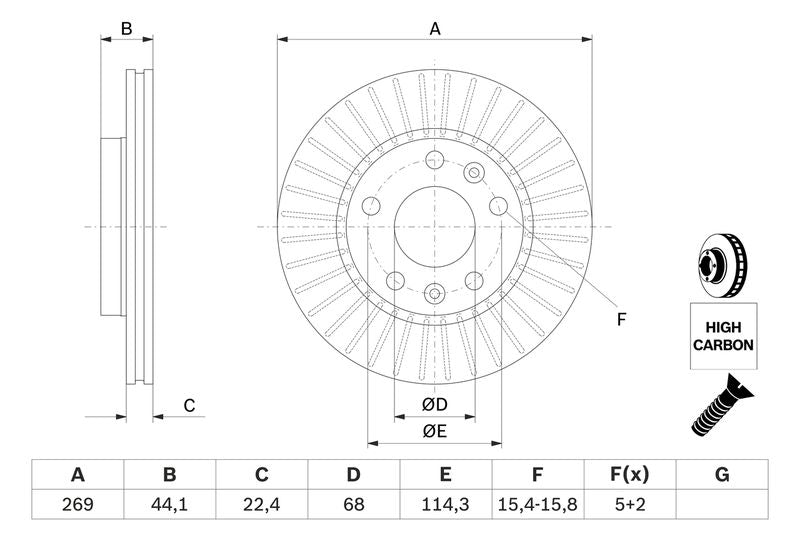

The Bosch 0986479779 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 269 mm outer diameter, 22.5 mm brake disc thickness, 19.8 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 269
Brake Disc Thickness [mm] : 22.5
Minimum thickness [mm] : 19.8
Height [mm] : 44.1
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.5
  • Vendor BOSCH
  • SKU 0986479779
  • Barcode 4047024946866
  • RENAULT : 40 20 663 00R
  • DACIA : 40 20 663 00R
  • APEC : DSK3045
  • APEC : SDK6930
  • BLUE PRINT : ADR164330
  • BORG & BECK : BBD5335
  • BREMBO : 09.B463.10
  • BREMBO : 09.B463.11
  • BREMBO : 09.B463.1X
  • DELPHI : BG4455
  • FEBI BILSTEIN : 40075
  • FTE : 9082285
  • HELLA : 8DD 355 122-431
  • MEYLE : 16-15 521 0028
  • MINTEX : MDC2657
  • National : NBD1941
  • SKF : VKBD 81052 V2
  • TEXTAR : 92272603
  • TRW : DF6200
  • VALEO : 197500
  • VALEO : 672772
  • BOSCH : BD1609
  • BOSCH : E1 90R-02C0074/1654
