BOSCH

Bosch 0986479783 Brake Disc

SKU: 0986479783
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£60.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
1.8 (CY3A, CY6A) 1798 CCM 140 HP From 05/2010
1.8 Flexfuel (CY3A, CY6A) 1798 CCM 140 HP From 03/2009
1.8 (CY3A, CY6A) 1798 CCM 143 HP From 02/2008
2.0 DI-D (CY8A) 1968 CCM 140 HP From 01/2008
1.5 1499 CCM 109 HP From 06/2008
2.0 i Ralliart 4WD (CY4A) 1998 CCM 241 HP From 10/2008
LANCER VIII Sportback (CX_A)
Description Cylinder Capacity Horse Power Year
1.6 MIVEC 1590 CCM 117 HP From 05/2010
1.8 MIVEC (CX3A, CX6A) 1798 CCM 140 HP From 03/2009
1.8 DI-D 1798 CCM 116 HP From 05/2010
1.8 Flex (CX3A, CX6A) 1798 CCM 140 HP From 03/2009
1.8 (CX3A) 1798 CCM 143 HP From 06/2008
2.0 DI-D (CX8A) 1968 CCM 140 HP From 06/2008
1.5 1499 CCM 109 HP From 06/2008
1.8 DI-D (CX9A) 1798 CCM 150 HP From 06/2010
1.8 Bifuel (CX3A, CX6A) 1798 CCM 143 HP From 02/2010
1.5 Bifuel 1499 CCM 109 HP From 03/2010

The Bosch 0986479783 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 275.7 mm outer diameter, 26 mm brake disc thickness, 24.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

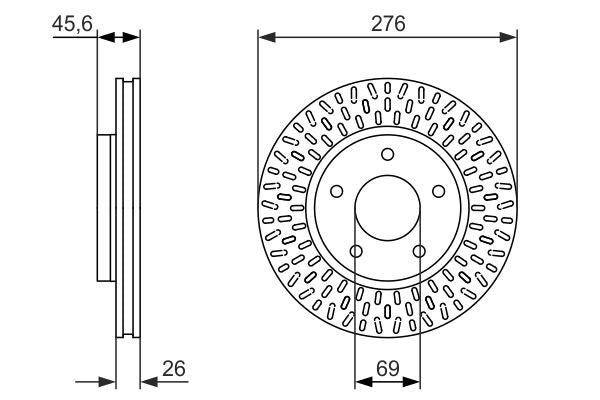

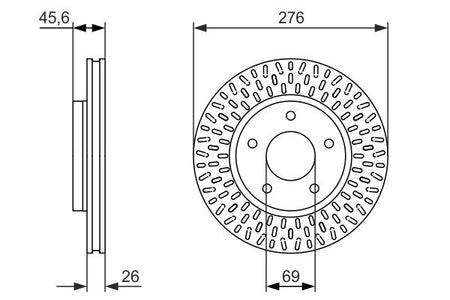

Function : Brake Disc
Outer Diameter [mm] : 275.7
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 24.4
Height [mm] : 45.4
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 69
Number of Holes : 5
Surface : Oiled
Bore Diameter up to [mm] : 13
  • Vendor BOSCH
  • SKU 0986479783
  • Barcode 4047024946811
  • MITSUBISHI : MN116329 MN116330 4615A115 4615A190
  • BLUE PRINT : ADC443119
  • BREMBO : 09.B647.10
  • BREMBO : 09.B647.11
  • BREMBO : 09.B647.1X
  • DELPHI : BG4258
  • FEBI BILSTEIN : 31275
  • FTE : 9072217
  • HELLA : 8DD 355 116-241
  • MEYLE : 32-15 521 0013
  • MINTEX : MDC2225
  • SKF : VKBD 80798 V2
  • TEXTAR : 92197403
  • TRW : DF4933
  • VALEO : 197593
  • BOSCH : BD1613
