BOSCH

Bosch 0986479A01 Brake Disc

SKU: 0986479A01

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£41.62 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

A-CLASS (W176)

Description	Cylinder Capacity	Horse Power	Year
A 180 (176.042)	1595 CCM	122 HP	09/2012 - 05/2018
A 200 (176.043)	1595 CCM	156 HP	06/2012 - 05/2018
A 200 CDI (176.001)	1796 CCM	136 HP	06/2012 - 10/2014
A 200 CDI / d (176.008)	2143 CCM	136 HP	02/2014 - 05/2018
A 200 CDI / d 4-matic (176.002)	2143 CCM	136 HP	02/2014 - 05/2018

B-CLASS Sports Tourer (W246, W242)

Description	Cylinder Capacity	Horse Power	Year
B 180 (246.242)	1595 CCM	122 HP	11/2011 - 12/2018
B 200 (246.243)	1595 CCM	156 HP	11/2011 - 12/2018
B 200 CDI (246.201)	1796 CCM	136 HP	11/2011 - 08/2014
B 200 Natural Gas Drive / B 200 c (242.848)	1991 CCM	156 HP	11/2012 - 12/2017
B 200 CDI / d (246.208)	2143 CCM	136 HP	08/2014 - 12/2018
B 200 CDI / d 4-matic (246.202)	2143 CCM	136 HP	08/2014 - 12/2018

CLA Coupe (C117)

Description	Cylinder Capacity	Horse Power	Year
CLA 180 CDI / d (117.312)	1461 CCM	109 HP	10/2013 - 05/2018
CLA 180 (117.342)	1595 CCM	122 HP	01/2013 - 03/2019
CLA 200 (117.343)	1595 CCM	156 HP	01/2013 - 03/2019
CLA 200 CDI (117.301)	1796 CCM	136 HP	06/2013 - 08/2014
CLA 200 CDI / d 4-matic (117.302)	2143 CCM	136 HP	07/2014 - 03/2019
CLA 200 CDI / d (117.308)	2143 CCM	136 HP	07/2014 - 03/2019

CLA Shooting Brake (X117)

Description	Cylinder Capacity	Horse Power	Year
CLA 180 (117.942)	1595 CCM	122 HP	01/2015 - 03/2019
CLA 200 (117.943)	1595 CCM	156 HP	01/2015 - 03/2019
CLA 200 CDI / d (117.908)	2143 CCM	136 HP	01/2015 - 03/2019
CLA 200 CDI / d 4-matic (117.902)	2143 CCM	136 HP	01/2015 - 03/2019
CLA 180 d (117.912)	1461 CCM	109 HP	07/2015 - 05/2018

GLA-CLASS (X156)

Description	Cylinder Capacity	Horse Power	Year
GLA 200 (156.943)	1595 CCM	156 HP	12/2013 - 12/2019
GLA 180 CDI / d (156.912)	1461 CCM	109 HP	07/2014 - 05/2018
GLA 180 (156.942)	1595 CCM	122 HP	02/2015 - 12/2019

INFINITI

Q30

Description	Cylinder Capacity	Horse Power	Year
1.6	1595 CCM	122 HP	From 11/2015
1.6	1595 CCM	156 HP	From 11/2015
1.5 D	1461 CCM	109 HP	From 11/2015
1.6	1595 CCM	150 HP	From 12/2015

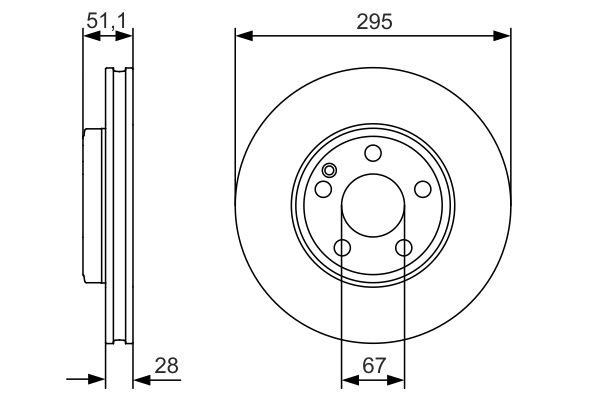

The Bosch 0986479A01 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295 mm outer diameter, 28 mm brake disc thickness, 25.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 295

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 25.4

Height [mm] : 51.2

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Vented

Centering Diameter [mm] : 67

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.8

APEC : DSK2991
APEC : SDK6745
BLUE PRINT : ADN143183
BLUE PRINT : ADU174316
BORG & BECK : BBD5268
BREMBO : 09.B344.41
BREMBO : 09.B344.4X
DELPHI : BG4646C
DELPHI : BG5011C
Fahren : FBD6745
FEBI BILSTEIN : 43861
FTE : 9071061
FTE : 9081305
HELLA : 8DD 355 119-591
MEYLE : 083 521 0011/PD
MINTEX : MDC2537
NAPA : NBD5108
SKF : VKBD 81070 V2
TEXTAR : 92241600
TEXTAR : 92241603
TRW : DF6501
VALEO : 672777

Bosch 0986479A01 Brake Disc
