Bosch 0986479A02 Brake Disc

SKU: 0986479A02
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£51.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 180 (176.042) 1595 CCM 122 HP 09/2012 - 05/2018
A 200 (176.043) 1595 CCM 156 HP 06/2012 - 05/2018
A 250 (176.044) 1991 CCM 211 HP 06/2012 - 05/2018
A 180 CDI / d (176.012) 1461 CCM 109 HP 06/2012 - 05/2018
A 180 CDI (176.000) 1796 CCM 109 HP 06/2012 - 10/2014
A 200 CDI (176.001) 1796 CCM 136 HP 06/2012 - 10/2014
A 220 CDI (176.003) 2143 CCM 170 HP 09/2012 - 05/2018
A 45 AMG 4-matic (176.052) 1991 CCM 360 HP 06/2013 - 05/2018
A 160 CDI / d (176.011) 1461 CCM 90 HP 06/2013 - 05/2018
A 250 4-matic (176.046) 1991 CCM 211 HP 06/2013 - 05/2018
A 200 CDI / d (176.008) 2143 CCM 136 HP 02/2014 - 05/2018
A 200 CDI / d 4-matic (176.002) 2143 CCM 136 HP 02/2014 - 05/2018
A 220 CDI 4-matic (176.005) 2143 CCM 170 HP 02/2014 - 05/2018
A 220 CDI (176.003) 2143 CCM 163 HP 01/2014 - 05/2018
A 220 4-matic (176.047) 1991 CCM 184 HP 05/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 180 (246.242) 1595 CCM 122 HP 11/2011 - 12/2018
B 200 (246.243) 1595 CCM 156 HP 11/2011 - 12/2018
B 180 CDI (246.200) 1796 CCM 109 HP 11/2011 - 08/2014
B 200 CDI (246.201) 1796 CCM 136 HP 11/2011 - 08/2014
B 200 Natural Gas Drive / B 200 c (242.848) 1991 CCM 156 HP 11/2012 - 12/2017
B 160 CDI / d (246.211) 1461 CCM 90 HP 05/2013 - 12/2018
B 180 CDI / d (246.212) 1461 CCM 109 HP 02/2013 - 12/2018
B 200 CDI / d (246.208) 2143 CCM 136 HP 08/2014 - 12/2018
B 200 CDI / d 4-matic (246.202) 2143 CCM 136 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 45 AMG 4-matic (117.352) 1991 CCM 360 HP 07/2013 - 03/2019
CLA 180 CDI / d (117.312) 1461 CCM 109 HP 10/2013 - 05/2018
CLA 180 (117.342) 1595 CCM 122 HP 01/2013 - 03/2019
CLA 200 (117.343) 1595 CCM 156 HP 01/2013 - 03/2019
CLA 200 CDI (117.301) 1796 CCM 136 HP 06/2013 - 08/2014
CLA 200 CDI / d 4-matic (117.302) 2143 CCM 136 HP 07/2014 - 03/2019
CLA 200 CDI / d (117.308) 2143 CCM 136 HP 07/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 180 (117.942) 1595 CCM 122 HP 01/2015 - 03/2019
CLA 200 (117.943) 1595 CCM 156 HP 01/2015 - 03/2019
CLA 200 CDI / d (117.908) 2143 CCM 136 HP 01/2015 - 03/2019
CLA 200 CDI / d 4-matic (117.902) 2143 CCM 136 HP 01/2015 - 03/2019
CLA 250 4-matic (117.951) 1991 CCM 218 HP 07/2015 - 03/2019
CLA 180 d (117.912) 1461 CCM 109 HP 07/2015 - 05/2018
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 200 (156.943) 1595 CCM 156 HP 12/2013 - 12/2019
GLA 200 CDI / d (156.908) 2143 CCM 136 HP 12/2013 - 12/2019
GLA 200 CDI 4-matic (156.902) 2143 CCM 136 HP 12/2013 - 05/2019
GLA 180 CDI / d (156.912) 1461 CCM 109 HP 07/2014 - 05/2018
GLA 180 (156.942) 1595 CCM 122 HP 02/2015 - 12/2019

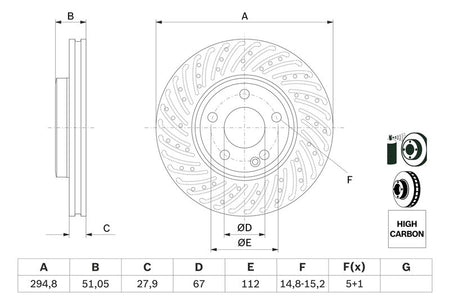

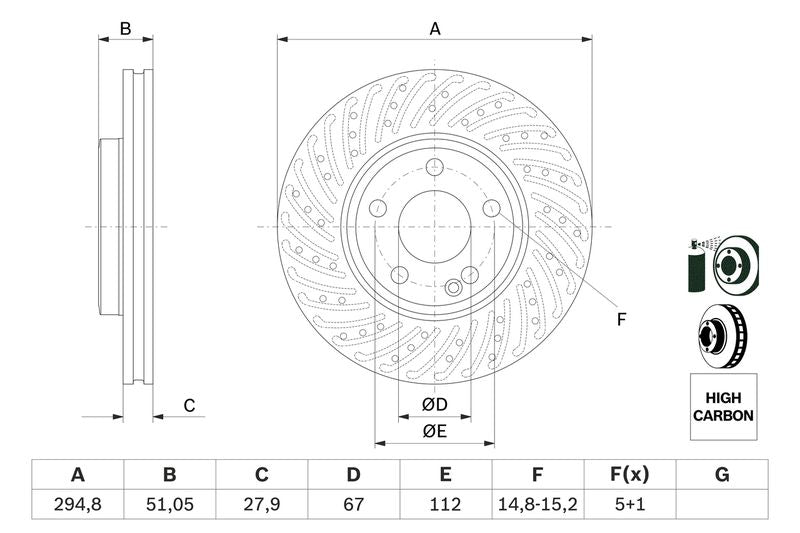

The Bosch 0986479A02 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 295
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26
Height [mm] : 51.2
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Perforated
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479A02
  • Barcode 4047025167970
  • MERCEDES-BENZ : A 246 421 25 12 246 421 25 12
  • APEC : DSK3209
  • APEC : SDK6840
  • BLUE PRINT : ADU174362
  • BORG & BECK : BBD5322
  • BREMBO : 09.B436.51
  • BREMBO : 09.B436.5S
  • DELPHI : BG4657C
  • Fahren : FBD6840
  • FEBI BILSTEIN : 44188
  • FTE : 9071213
  • FTE : 9081047
  • HELLA : 8DD 355 129-681
  • MEYLE : 083 521 0022/PD
  • MINTEX : MDC2539
  • NAPA : NBD5107
  • National : NBD2066
  • SKF : VKBD 80028 V1
  • TEXTAR : 92257503
  • TEXTAR : 92257505
  • TRW : DF6262S
  • VALEO : 673020
  • BOSCH : BD1689
  • BOSCH : E1 90R-02C0727/1463
