BOSCH

Bosch 0986479A03 Brake Disc

SKU: 0986479A03
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£47.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 180 (176.042) 1595 CCM 122 HP 09/2012 - 05/2018
A 200 (176.043) 1595 CCM 156 HP 06/2012 - 05/2018
A 180 CDI / d (176.012) 1461 CCM 109 HP 06/2012 - 05/2018
A 180 CDI (176.000) 1796 CCM 109 HP 06/2012 - 10/2014
A 200 CDI (176.001) 1796 CCM 136 HP 06/2012 - 10/2014
A 160 CDI / d (176.011) 1461 CCM 90 HP 06/2013 - 05/2018
A 200 CDI / d (176.008) 2143 CCM 136 HP 02/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 180 (246.242) 1595 CCM 122 HP 11/2011 - 12/2018
B 200 (246.243) 1595 CCM 156 HP 11/2011 - 12/2018
B 180 CDI (246.200) 1796 CCM 109 HP 11/2011 - 08/2014
B 200 CDI (246.201) 1796 CCM 136 HP 11/2011 - 08/2014
B 160 CDI / d (246.211) 1461 CCM 90 HP 05/2013 - 12/2018
B 180 CDI / d (246.212) 1461 CCM 109 HP 02/2013 - 12/2018
B 200 CDI / d (246.208) 2143 CCM 136 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 180 (117.342) 1595 CCM 122 HP 01/2013 - 03/2019
CLA 200 (117.343) 1595 CCM 156 HP 01/2013 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 180 (117.942) 1595 CCM 122 HP 01/2015 - 03/2019
CLA 200 (117.943) 1595 CCM 156 HP 01/2015 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 200 (156.943) 1595 CCM 156 HP 12/2013 - 12/2019
GLA 180 (156.942) 1595 CCM 122 HP 02/2015 - 12/2019

The Bosch 0986479A03 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 276 mm outer diameter, 8.9 mm brake disc thickness, 7.3 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

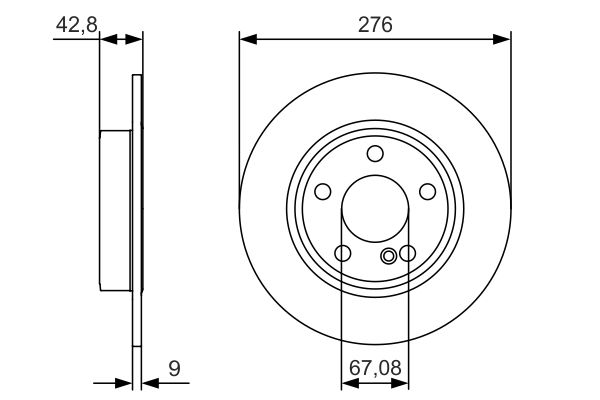

Function : Brake Disc
Outer Diameter [mm] : 276
Brake Disc Thickness [mm] : 8.9
Minimum thickness [mm] : 7.3
Height [mm] : 44.1
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : solid
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.8
  • Vendor BOSCH
  • SKU 0986479A03
  • Barcode 4047025168144
  • MERCEDES-BENZ : A 246 423 00 12 A 246 423 04 12 246 423 00 12 246 423 04 12
  • APEC : DSK2992
  • APEC : SDK6746
  • BLUE PRINT : ADU174329
  • BORG & BECK : BBD5269
  • BREMBO : 08.B347.40
  • BREMBO : 08.B347.41
  • BREMBO : 08.B347.4X
  • DELPHI : BG4555C
  • Fahren : FBD6746
  • FEBI BILSTEIN : 43816
  • FTE : 9072524
  • FTE : 9082096
  • HELLA : 8DD 355 119-431
  • MEYLE : 015 523 0015/PD
  • MINTEX : MDC2522
  • NAPA : NBD5143
  • National : NBD1888
  • SKF : VKBD 91065 S2
  • TEXTAR : 92241300
  • TEXTAR : 92241303
  • TRW : DF6376
  • VALEO : 673035
  • BOSCH : BD1690
