BOSCH

Bosch 0986479A06 Brake Disc

SKU: 0986479A06

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£59.48 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

2 Coupe (F22, F87)

Description	Cylinder Capacity	Horse Power	Year
228 i	1997 CCM	245 HP	07/2014 - 06/2016

2 Convertible (F23)

Description	Cylinder Capacity	Horse Power	Year
228 i	1997 CCM	245 HP	11/2014 - 06/2016
230 i	1998 CCM	252 HP	07/2016 - 06/2021

3 (F30, F80)

Description	Cylinder Capacity	Horse Power	Year
328 i	1997 CCM	245 HP	11/2011 - 10/2018
328 i xDrive	1997 CCM	245 HP	07/2012 - 08/2016

3 Gran Turismo (F34)

Description	Cylinder Capacity	Horse Power	Year
325 d	1995 CCM	211 HP	07/2013 - 06/2016
328 i	1997 CCM	245 HP	03/2013 - 06/2016
328 i xDrive	1997 CCM	245 HP	07/2013 - 06/2016
325 d	1995 CCM	218 HP	07/2013 - 06/2016
330 d xDrive	2993 CCM	258 HP	From 03/2014
330 d	2993 CCM	258 HP	From 03/2014

3 Touring (F31)

Description	Cylinder Capacity	Horse Power	Year
328 i	1997 CCM	245 HP	07/2012 - 06/2015
330 d	2993 CCM	258 HP	07/2012 - 06/2019
325 d	1995 CCM	218 HP	03/2013 - 02/2016
328 i xDrive	1997 CCM	245 HP	03/2013 - 06/2016
330 d xDrive	2993 CCM	258 HP	03/2013 - 06/2019

4 Coupe (F32, F82)

Description	Cylinder Capacity	Horse Power	Year
430 d	2993 CCM	258 HP	11/2013 - 06/2020
428 i	1997 CCM	245 HP	07/2013 - 02/2017
428 i xDrive	1997 CCM	245 HP	07/2013 - 02/2016
430 d xDrive	2993 CCM	258 HP	03/2014 - 06/2020
425 d	1995 CCM	218 HP	03/2014 - 02/2016

4 Convertible (F33, F83)

Description	Cylinder Capacity	Horse Power	Year
428 i	1997 CCM	245 HP	11/2013 - 02/2017
428 i xDrive	1997 CCM	245 HP	03/2014 - 02/2016
425 d	1995 CCM	218 HP	07/2014 - 02/2016
430 d	2993 CCM	258 HP	07/2014 - 07/2020
430 d	2993 CCM	286 HP	07/2014 - 07/2020

4 Gran Coupe (F36)

Description	Cylinder Capacity	Horse Power	Year
428 i	1997 CCM	245 HP	03/2014 - 06/2016
428 i xDrive	1997 CCM	245 HP	03/2014 - 02/2016
430 d	2993 CCM	258 HP	07/2014 - 12/2020
430 d xDrive	2993 CCM	258 HP	07/2014 - 12/2020
430 d	2993 CCM	286 HP	07/2014 - 12/2020
430 d xDrive	2993 CCM	286 HP	07/2014 - 12/2020

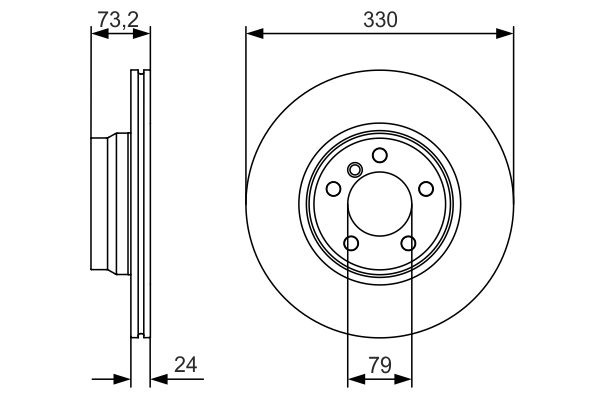

The Bosch 0986479A06 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 330

Brake Disc Thickness [mm] : 24

Minimum thickness [mm] : 22.4

Height [mm] : 73.2

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 79

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 16.75

APEC : DSK3100
APEC : SDK6931
BLUE PRINT : ADB114339
BORG & BECK : BBD6010S
BREMBO : 09.C116.11
BREMBO : 09.C116.1S
BREMBO : 09.C116.1X
DELPHI : BG4458C
Fahren : FBD6931
FEBI BILSTEIN : 43956
FTE : 9071063
FTE : 9081090
HELLA : 8DD 355 119-561
HELLA : 8DD 355 129-651
MEYLE : 383 521 0016/PD
MINTEX : MDC2534
NAPA : NBD5099
SKF : VKBD 80448 V1
TEXTAR : 92242005
TRW : DF8050
VALEO : 673396

Bosch 0986479A06 Brake Disc
