BOSCH

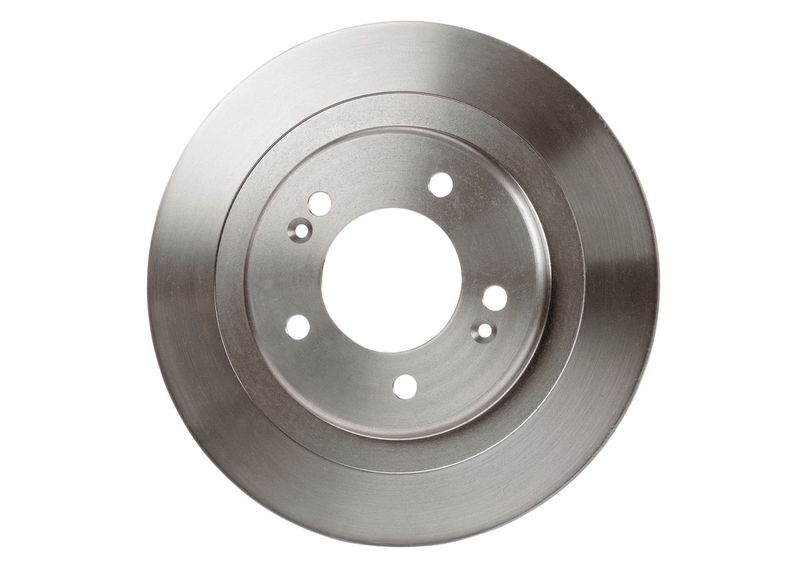

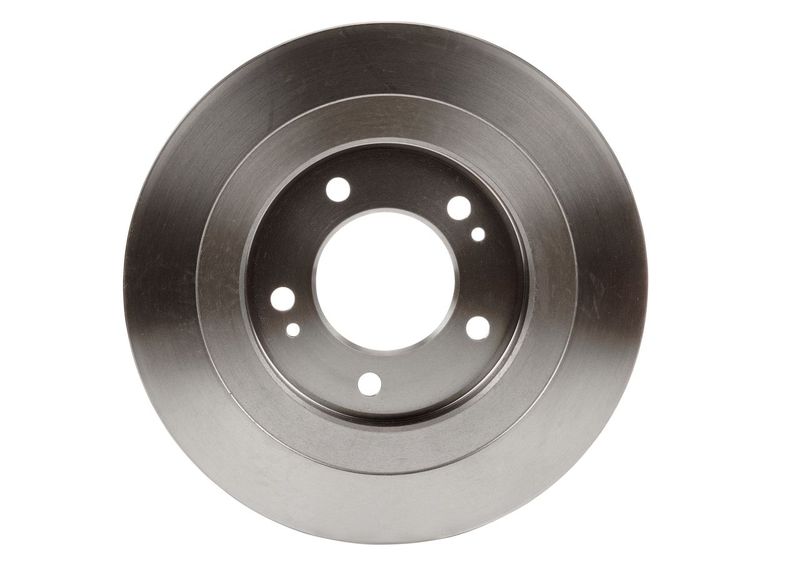

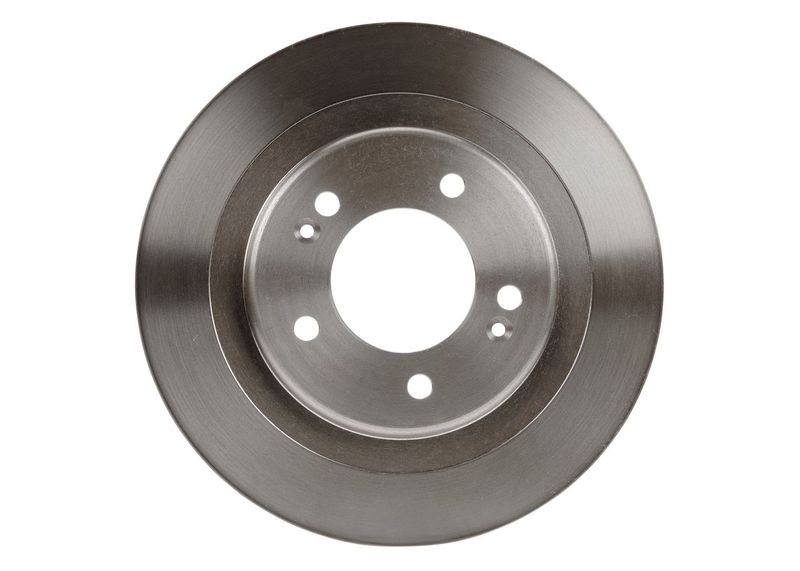

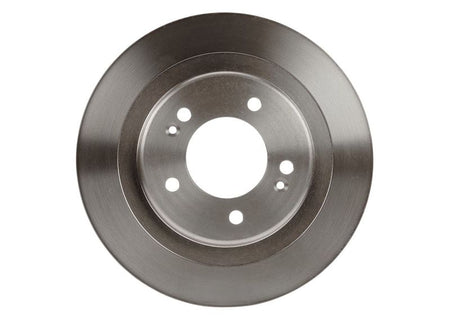

Bosch 0986479A13 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479A13

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£77.71 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HYUNDAI

i40 I CW (VF)

Description	Cylinder Capacity	Horse Power	Year
1.6 GDI	1591 CCM	135 HP	07/2011 - 05/2019
2.0 GDI	1999 CCM	177 HP	07/2011 - 05/2019
1.7 CRDi	1685 CCM	116 HP	07/2011 - 05/2019
1.7 CRDi	1685 CCM	136 HP	07/2011 - 05/2019
1.7 CRDi	1685 CCM	141 HP	01/2015 - 05/2019
2.0 GDi	1999 CCM	165 HP	12/2014 - 05/2019
1.6 CRDi	1598 CCM	136 HP	07/2018 - 05/2019
1.6 CRDi	1598 CCM	116 HP	07/2018 - 05/2019
2.0 CVVT	1999 CCM	177 HP	07/2011 - 05/2019

i40 I (VF)

Description	Cylinder Capacity	Horse Power	Year
1.6 GDI	1591 CCM	135 HP	03/2012 - 05/2019
2.0 GDI	1999 CCM	178 HP	03/2012 - 05/2019
1.7 CRDi	1685 CCM	116 HP	03/2012 - 05/2019
1.7 CRDi	1685 CCM	136 HP	03/2012 - 05/2019
2.0 GDi	1999 CCM	165 HP	12/2014 - 05/2019
1.7 CRDI	1685 CCM	141 HP	01/2015 - 05/2019
2.0 CVVT	1999 CCM	150 HP	10/2012 - 05/2019
2.0 GDI	1999 CCM	177 HP	03/2012 - 05/2019
1.6 CRDi	1598 CCM	116 HP	07/2018 - 05/2019
1.6 CRDi	1598 CCM	136 HP	07/2018 - 05/2019

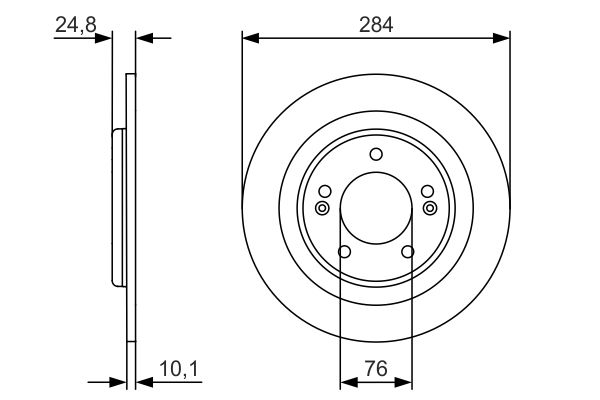

The Bosch 0986479A13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 284 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 284

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 8.4

Height [mm] : 24.9

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : solid

Centering Diameter [mm] : 76

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.5
