Bosch 0986479A17 Brake Disc

SKU: 0986479A17
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£74.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 350 CDI 4-matic (212.093) 2987 CCM 265 HP 03/2011 - 12/2015
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 350 CDI 4-matic (212.293) 2987 CCM 265 HP 07/2011 - 12/2013
SLC (R172)
Description Cylinder Capacity Horse Power Year
250 d (172.404) 2143 CCM 204 HP 01/2016 - 10/2017
180 (172.431) 1595 CCM 156 HP From 01/2016
200 (172.434) 1991 CCM 184 HP From 01/2016
300 (172.438) 1991 CCM 245 HP From 01/2016
AMG SLC 43 (172.466) 2996 CCM 367 HP From 01/2016
AMG SLC 43 (172.466) 2996 CCM 390 HP From 06/2018
SLK (R172)
Description Cylinder Capacity Horse Power Year
250 (172.447) 1796 CCM 204 HP From 02/2011
200 (172.448) 1796 CCM 184 HP From 02/2011
350 (172.457) 3498 CCM 306 HP From 02/2011
250 CDI / d (172.403) 2143 CCM 204 HP From 01/2012
300 (172.438) 1991 CCM 245 HP From 07/2015
200 (172.434) 1991 CCM 184 HP From 04/2015

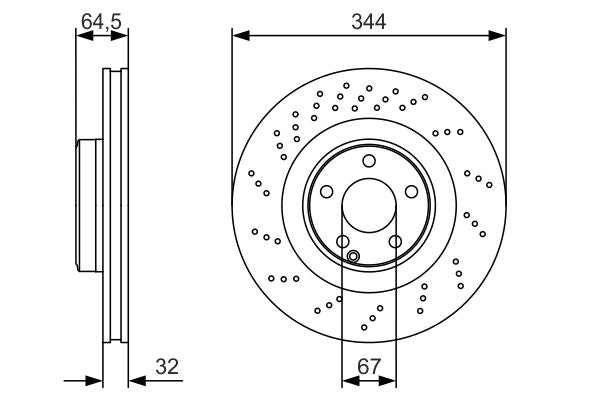

The Bosch 0986479A17 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 344 mm outer diameter, 32 mm brake disc thickness, 30 mm minimum thickness, and perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 344
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 30
Height [mm] : 64.6
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Perforated
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Oiled
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479A17
  • Barcode 4047025199797
  • MERCEDES-BENZ : A 000 421 16 12 A 172 421 02 12 000 421 16 12 172 421 02 12 421 161 207
  • APEC : DSK3213
  • BLUE PRINT : ADU174363
  • BORG & BECK : BBD5953S
  • BORG & BECK : BBD6102S
  • BREMBO : 09.B744.51
  • DELPHI : BG9205C
  • FEBI BILSTEIN : 37724
  • FEBI BILSTEIN : 44007
  • FEBI BILSTEIN : 44008
  • HELLA : 8DD 355 116-951
  • MEYLE : 083 521 0019/PD
  • MINTEX : MDC2251
  • NAPA : NBD5845
  • TEXTAR : 92224605
  • TRW : DF6674S
  • BOSCH : BD1704
  • BOSCH : E1 90R-02C0593/1811
