BOSCH

Bosch 0986479A23 Brake Disc

SKU: 0986479A23

Your selected vehicle

Out of stock

Out of Stock

£55.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

IVECO

DAILY IV Platform/Chassis

Description	Cylinder Capacity	Horse Power	Year
65C18	2998 CCM	176 HP	05/2006 - 08/2011

DAILY V Platform/Chassis

Description	Cylinder Capacity	Horse Power	Year
35C15, 35S15, 40C15, 45C15, 50C15, 60C15, 65C15, 70C15	2998 CCM	146 HP	09/2011 - 02/2014
35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C17	2998 CCM	170 HP	09/2011 - 02/2014
35C21, 35S21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21	2998 CCM	205 HP	09/2011 - 02/2014
NaturalPower 35S14, 35C14, 40C14, 50C14, 60C14, 65C14,...	2998 CCM	136 HP	09/2011 - 02/2014

DAILY V Van

Description	Cylinder Capacity	Horse Power	Year
35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C17	2998 CCM	170 HP	09/2011 - 02/2014
35C15 V, 40C15 V, 45C15 V, 50C15 V, 60C15 V,65C15 V	2998 CCM	146 HP	09/2011 - 02/2014
NaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14	2998 CCM	136 HP	09/2011 - 02/2014

DAILY VI Platform/Chassis

Description	Cylinder Capacity	Horse Power	Year
35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 60C5, 65C15,...	2998 CCM	146 HP	From 03/2014
35S17, 35C17, 40C17, 45S17,45C17, 50C17, 60C17, 65C17,...	2998 CCM	170 HP	From 03/2014
35S21, 35C21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21	2998 CCM	204 HP	From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C	2998 CCM	136 HP	From 03/2014
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15	2998 CCM	150 HP	From 04/2016
35S18, 35C18, 40C18, 45C18, 50C18, 60C18, 65C18, 70C18	2998 CCM	180 HP	From 04/2016

DAILY VI Bus

Description	Cylinder Capacity	Horse Power	Year
40C15, 50C15, 60C15	2998 CCM	146 HP	From 03/2014
40C17, 50C17, 60C17	2998 CCM	170 HP	From 03/2014
40C15, 50C15, 60C15	2998 CCM	150 HP	From 04/2016
40C18, 50C18, 60C18	2998 CCM	180 HP	From 04/2016
50C21, 60C21	2998 CCM	207 HP	From 07/2021
50C18, 60C18	2998 CCM	175 HP	From 07/2021
eDAILY 72C14E		190 HP	From 12/2022

DAILY VI Van

Description	Cylinder Capacity	Horse Power	Year
35S15, 35C15, 40C15, 45C15, 50C15, 65C15, 70C15	2998 CCM	146 HP	From 03/2014
35S17, 35C17, 40C17, 50C17, 55C17, 60C17, 65C17, 70C17	2998 CCM	170 HP	From 03/2014
35S21, 35C21, 40C21, 50C21	2998 CCM	204 HP	From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C	2998 CCM	136 HP	From 03/2014
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15	2998 CCM	150 HP	From 04/2016
35S18, 35C18, 40C18, 50C18, 60C18, 65C18, 70C18	2998 CCM	180 HP	From 04/2016
55S18, 55C18, 70S18, 70C18	2998 CCM	179 HP	From 01/2018

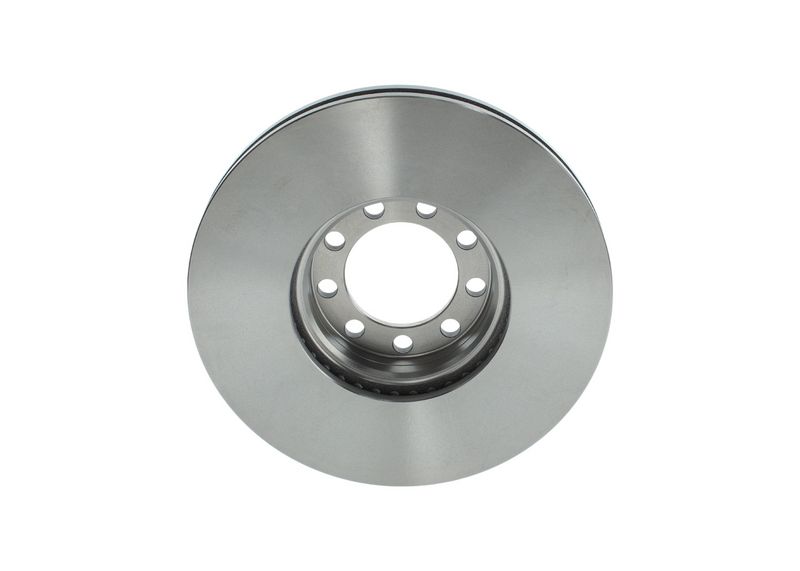

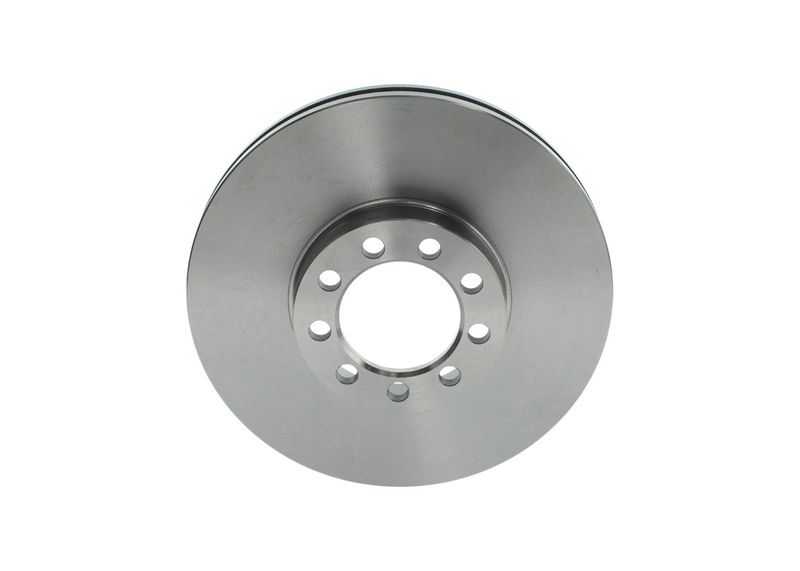

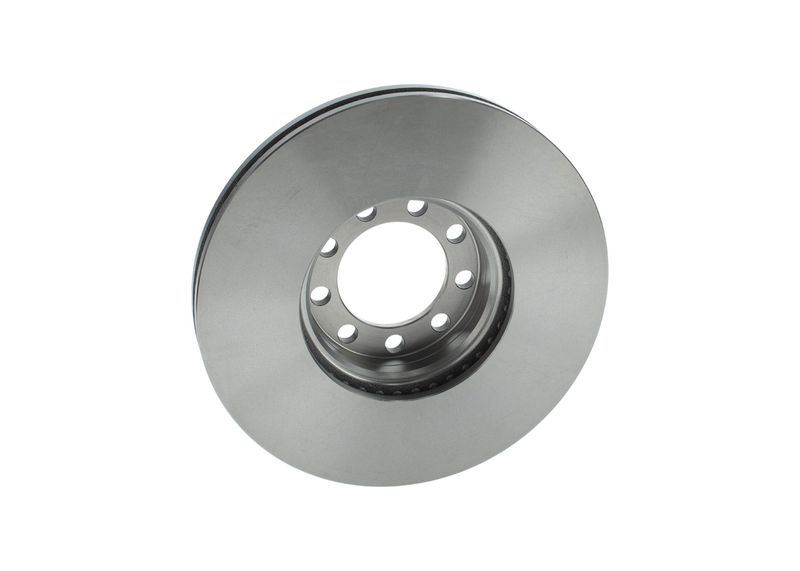

The Bosch 0986479A23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300.8 mm outer diameter, 30 mm brake disc thickness, 27 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

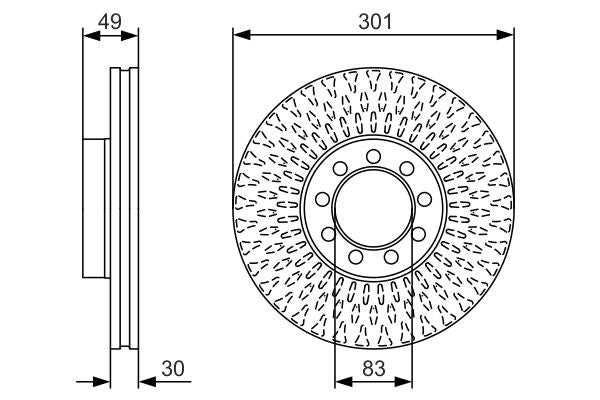

Outer Diameter [mm] : 300.8

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 27

Height [mm] : 59

Bolt Hole Circle Ø [mm] : 111

Brake Disc Type : Vented

Centering Diameter [mm] : 83

Number of Holes : 9

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.5

APEC : DSK2842
APEC : SDK7310
BORG & BECK : BBD5952S
BREMBO : 09.9762.10
DELPHI : BG9062
Fahren : FBD7310
FTE : 9071268
HELLA : 8DD 355 115-531
MEYLE : 215 521 0031
MINTEX : MDC1933
NAPA : NBD5810
SKF : VKBD 80778 V1
TEXTAR : 93177600
TEXTAR : 93177603
TRW : DF4994S
VALEO : 673243
