BOSCH

Bosch 0986479A26 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479A26

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£80.41 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
GL-CLASS (X164)
Description Cylinder Capacity Horse Power Year
GL 350 CDI 4-matic (164.823) 2987 CCM 265 HP 10/2010 - 08/2012
GL 450 4-matic (164.871) 4663 CCM 340 HP 09/2006 - 08/2012
GL 500 4-matic (164.886) 5461 CCM 388 HP 09/2006 - 12/2012
GL 420 CDI 4-matic (164.828) 3996 CCM 306 HP 09/2006 - 05/2009
GL 320 CDI 4-matic (164.822) 2987 CCM 224 HP 09/2006 - 05/2009
GL 350 CDI 4-matic (164.822) 2987 CCM 224 HP 05/2009 - 08/2012
GL 450 CDI 4-matic (164.828) 3996 CCM 306 HP 05/2009 - 08/2012
GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) 2987 CCM 211 HP 12/2009 - 08/2012
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 500 4-matic (164.172) 5461 CCM 388 HP 12/2007 - 12/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 500 4-matic (251.072, 251.172) 5461 CCM 388 HP 05/2007 - 12/2014

The Bosch 0986479A26 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 375 mm outer diameter, 32 mm brake disc thickness, 29.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

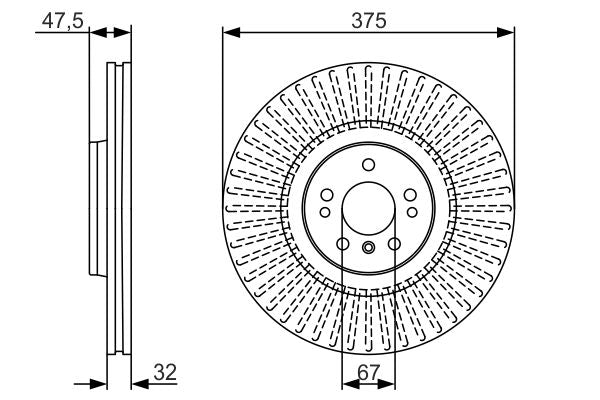

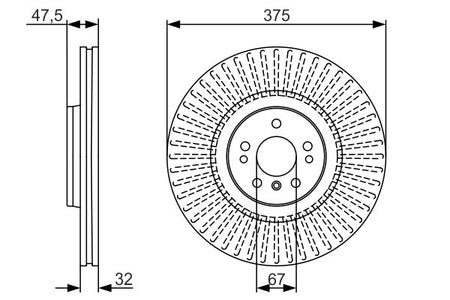

Function : Brake Disc
Outer Diameter [mm] : 375
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 29.4
Height [mm] : 54.6
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479A26
  • Barcode 4047025195034
  • MERCEDES-BENZ : A 164 421 06 12 A 164 421 15 12 164 421 06 12 164 421 15 12
  • APEC : DSK2876
  • BLUE PRINT : ADU174338
  • BORG & BECK : BBD5984S
  • BREMBO : 09.R105.11
  • DELPHI : BG9060C
  • FEBI BILSTEIN : 43997
  • FTE : 9071331
  • FTE : 9081273
  • HELLA : 8DD 355 128-941
  • MINTEX : MDC1917
  • TEXTAR : 92176603
  • TEXTAR : 92176605
  • TRW : DF6456S
  • BOSCH : BD1713
