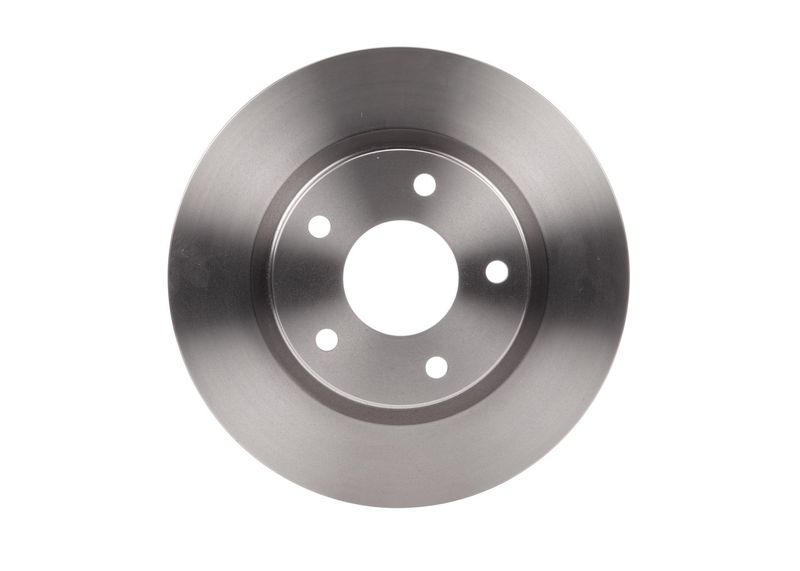

Bosch 0986479A28 Brake Disc - 1
Bosch 0986479A28 Brake Disc - 2

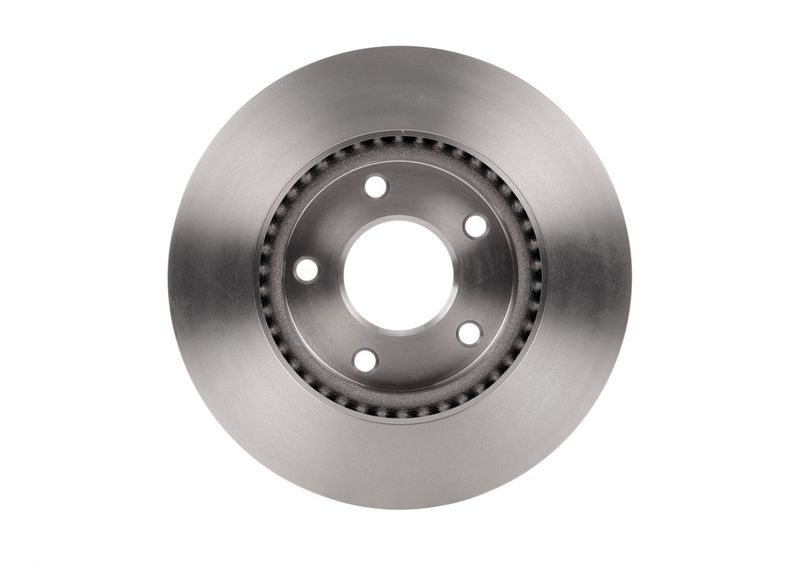

Bosch 0986479A28 Brake Disc - 3
Bosch 0986479A28 Brake Disc - 4
Bosch 0986479A28 Brake Disc - 5

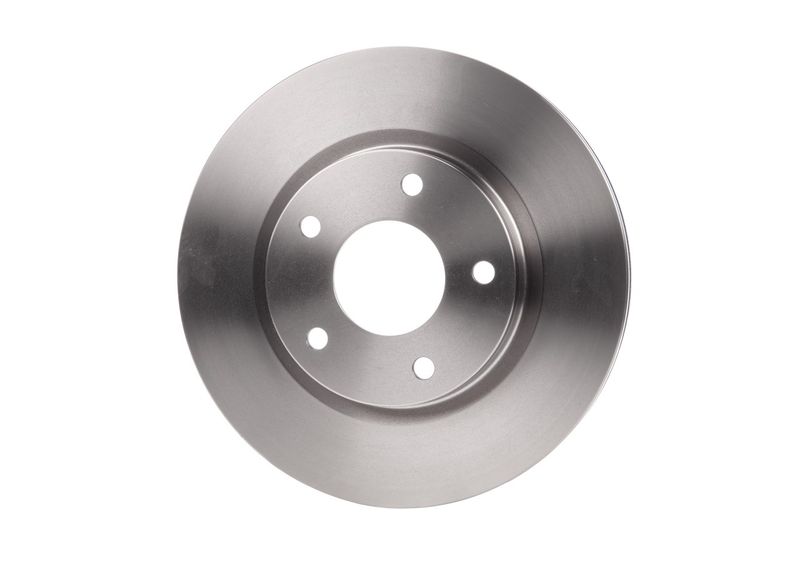

Bosch 0986479A28 Brake Disc - 6
Bosch 0986479A28 Brake Disc - 1
Bosch 0986479A28 Brake Disc - 2
Bosch 0986479A28 Brake Disc - 3
Bosch 0986479A28 Brake Disc - 4
Bosch 0986479A28 Brake Disc - 5
Bosch 0986479A28 Brake Disc - 6
BOSCH

Bosch 0986479A28 Brake Disc

SKU: 0986479A28
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£74.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
JUKE (F15)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 117 HP 06/2010 - 12/2019
1.5 dCi 1461 CCM 110 HP 06/2010 - 12/2019
1.6 1598 CCM 94 HP 05/2013 - 12/2019
1.2 DIG-T 1197 CCM 115 HP 05/2014 - 12/2019
1.6 1598 CCM 113 HP 07/2018 - 12/2019
1.6 CVTC 1598 CCM 98 HP 08/2014 - 12/2019
1.6 1598 CCM 116 HP 03/2016 - 12/2019
1.6 LPG 1598 CCM 109 HP 09/2018 - 12/2019
JUKE Van (F15)
Description Cylinder Capacity Horse Power Year
dCi 1461 CCM 110 HP 06/2010 - 12/2019
PULSAR Hatchback (C13)
Description Cylinder Capacity Horse Power Year
1.2 DIG-T 1197 CCM 115 HP From 10/2014
1.5 dCi 1461 CCM 110 HP From 10/2014
TIIDA Hatchback (C11)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 110 HP 09/2007 - 12/2011

The Bosch 0986479A28 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 279.6 mm outer diameter, 24 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

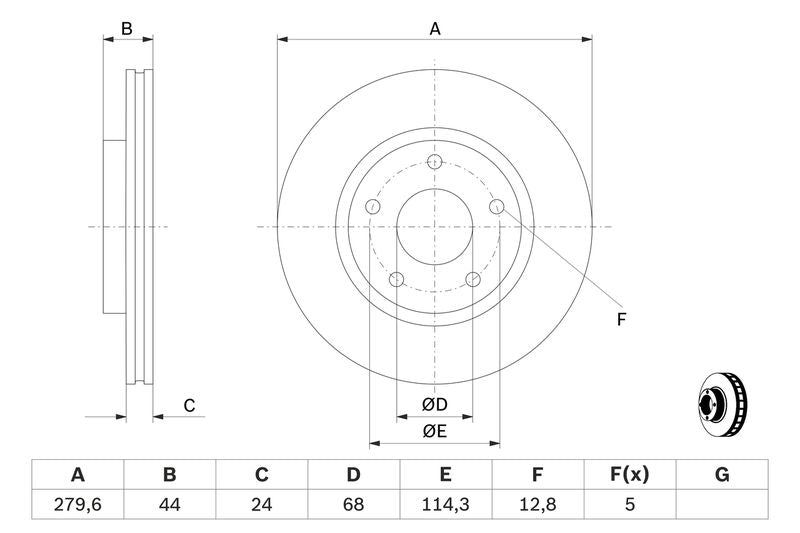

Function : Brake Disc
Outer Diameter [mm] : 279.6
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.8
  • Vendor BOSCH
  • SKU 0986479A28
  • Barcode 4047025199803
  • NISSAN : 402061KA2A 402061KA3A 402061KA3B 402063ST0A
  • APEC : DSK2862
  • APEC : SDK6303
  • BLUE PRINT : ADN143152
  • BORG & BECK : BBD5195
  • BREMBO : 09.B565.10
  • BREMBO : 09.B565.11
  • DELPHI : BG4282C
  • Fahren : FBD6303
  • FEBI BILSTEIN : 108396
  • FTE : 9072446
  • FTE : 9082103
  • HELLA : 8DD 355 117-321
  • MEYLE : 36-15 521 0053
  • MINTEX : MDC2280
  • NAPA : NBD5071
  • SKF : VKBD 80112 V2
  • TEXTAR : 92232203
  • TEXTAR : 92232205
  • TRW : DF6471
  • VALEO : 672766
  • BOSCH : BD1715
