Bosch 0986479A41 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479A41

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£51.23 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MITSUBISHI
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
1.6 MIVEC 1590 CCM 117 HP From 05/2010
1.8 (CY3A, CY6A) 1798 CCM 140 HP From 05/2010
1.8 DI-D 1798 CCM 116 HP From 05/2010
1.8 Flexfuel (CY3A, CY6A) 1798 CCM 140 HP From 03/2009
2.0 i (CY4A) 1998 CCM 154 HP From 04/2007
1.8 (CY3A, CY6A) 1798 CCM 143 HP From 02/2008
2.0 DI-D (CY8A) 1968 CCM 140 HP From 01/2008
2.0 (CY4A) 1998 CCM 150 HP From 01/2013
1.5 1499 CCM 109 HP From 06/2008
2.0 i Ralliart 4WD (CY4A) 1998 CCM 241 HP From 10/2008
LANCER VIII Sportback (CX_A)
Description Cylinder Capacity Horse Power Year
1.6 MIVEC 1590 CCM 117 HP From 05/2010
1.8 MIVEC (CX3A, CX6A) 1798 CCM 140 HP From 03/2009
1.8 DI-D 1798 CCM 116 HP From 05/2010
1.8 Flex (CX3A, CX6A) 1798 CCM 140 HP From 03/2009
1.8 (CX3A) 1798 CCM 143 HP From 06/2008
2.0 DI-D (CX8A) 1968 CCM 140 HP From 06/2008
1.5 1499 CCM 109 HP From 06/2008
1.8 DI-D (CX9A) 1798 CCM 150 HP From 06/2010
1.8 Bifuel (CX3A, CX6A) 1798 CCM 143 HP From 02/2010
1.5 Bifuel 1499 CCM 109 HP From 03/2010

The Bosch 0986479A41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 262 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

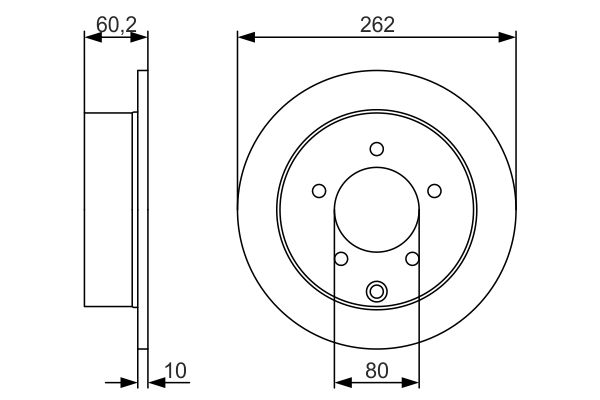

Outer Diameter [mm] : 262
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.4
Height [mm] : 60.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 80
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.6
  • Vendor BOSCH
  • SKU 0986479A41
  • Barcode 4047025195102
  • MITSUBISHI : MN116332 4615A119 4615A194
  • APEC : DSK2667
  • APEC : SDK6590
  • BLUE PRINT : ADC443120
  • BORG & BECK : BBD4753
  • BREMBO : 08.A114.71
  • BREMBO : 08.A114.7X
  • DELPHI : BG4198
  • FEBI BILSTEIN : 31280
  • FTE : 9072358
  • HELLA : 8DD 355 119-181
  • MEYLE : 32-15 523 0008
  • MINTEX : MDC2234
  • NAPA : NBD5793
  • SKF : VKBD 90680 S2
  • TEXTAR : 92227403
  • TRW : DF4973
  • BOSCH : BD1728
  • BOSCH : E1 90 R -02C0372/0148
