BOSCH

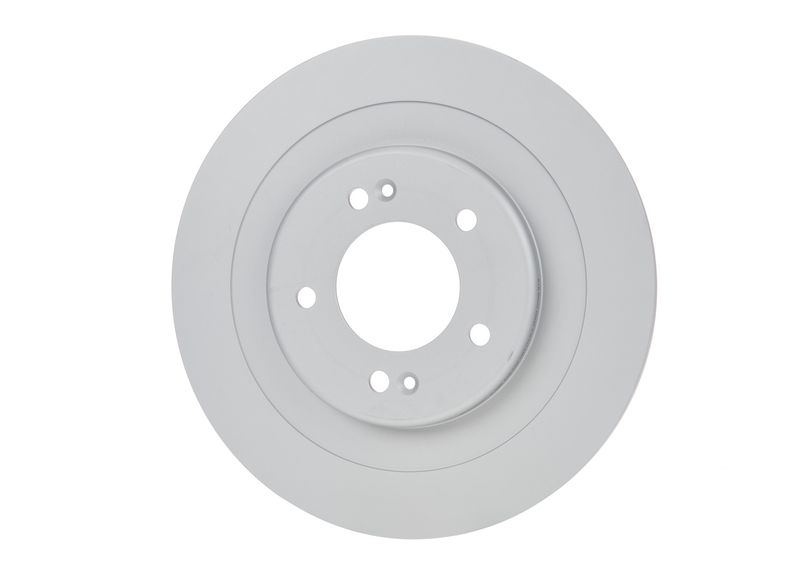

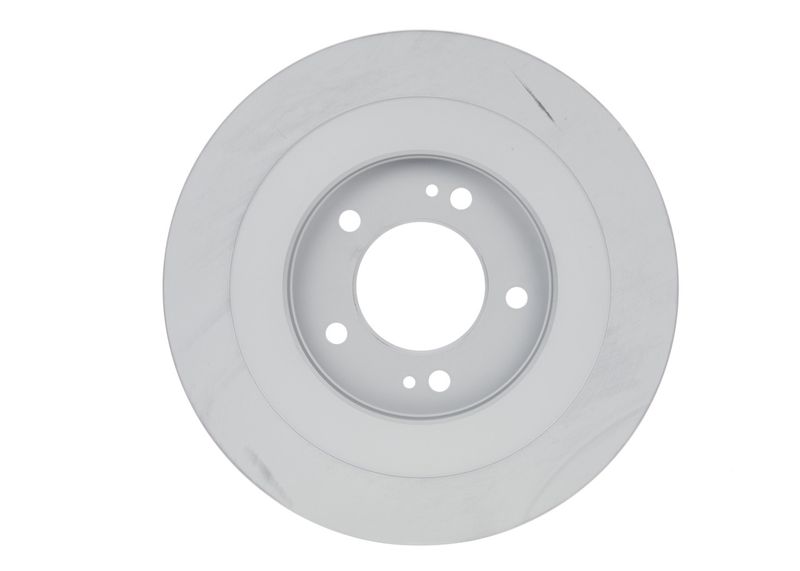

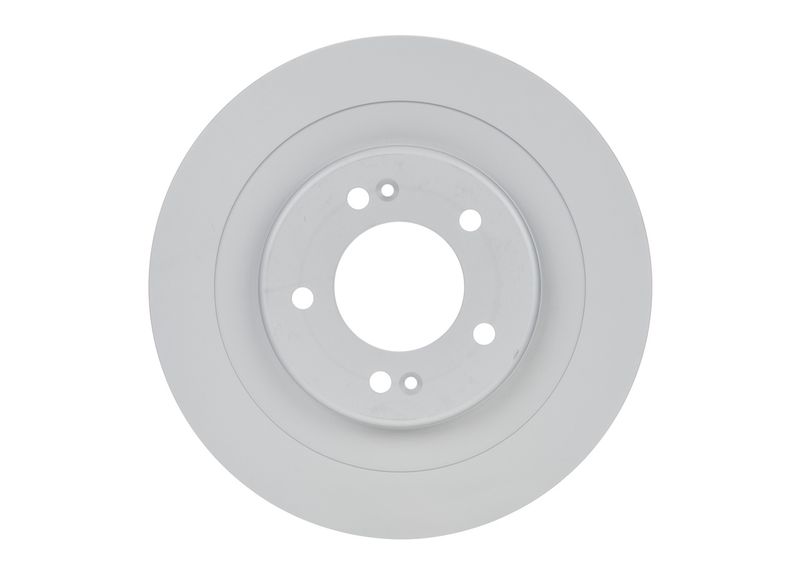

Bosch 0986479A46 Brake Disc

SKU: 0986479A46
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£55.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
i40 I CW (VF)
Description Cylinder Capacity Horse Power Year
1.6 GDI 1591 CCM 135 HP 07/2011 - 05/2019
2.0 GDI 1999 CCM 177 HP 07/2011 - 05/2019
1.7 CRDi 1685 CCM 116 HP 07/2011 - 05/2019
1.7 CRDi 1685 CCM 136 HP 07/2011 - 05/2019
1.7 CRDi 1685 CCM 141 HP 01/2015 - 05/2019
2.0 GDi 1999 CCM 165 HP 12/2014 - 05/2019
1.6 CRDi 1598 CCM 136 HP 07/2018 - 05/2019
1.6 CRDi 1598 CCM 116 HP 07/2018 - 05/2019
2.0 CVVT 1999 CCM 177 HP 07/2011 - 05/2019
i40 I (VF)
Description Cylinder Capacity Horse Power Year
1.6 GDI 1591 CCM 135 HP 03/2012 - 05/2019
2.0 GDI 1999 CCM 178 HP 03/2012 - 05/2019
1.7 CRDi 1685 CCM 116 HP 03/2012 - 05/2019
1.7 CRDi 1685 CCM 136 HP 03/2012 - 05/2019
2.0 GDi 1999 CCM 165 HP 12/2014 - 05/2019
1.7 CRDI 1685 CCM 141 HP 01/2015 - 05/2019
2.0 CVVT 1999 CCM 150 HP 10/2012 - 05/2019
2.0 GDI 1999 CCM 177 HP 03/2012 - 05/2019
1.6 CRDi 1598 CCM 116 HP 07/2018 - 05/2019
1.6 CRDi 1598 CCM 136 HP 07/2018 - 05/2019

The Bosch 0986479A46 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.4
Height [mm] : 24.7
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 76
Number of Holes : 5
Surface : Coated
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.5
  • Vendor BOSCH
  • SKU 0986479A46
  • Barcode 4047025195126
  • HYUNDAI : 58411 3Z700
  • APEC : DSK2923
  • APEC : SDK6702
  • BLUE PRINT : ADG043181
  • BORG & BECK : BBD5231
  • BREMBO : 08.C248.10
  • BREMBO : 08.C248.11
  • DELPHI : BG4688C
  • Fahren : FBD6702
  • FEBI BILSTEIN : 108563
  • FTE : 9072790
  • FTE : 9082284
  • HELLA : 8DD 355 118-241
  • MEYLE : 37-15 523 0035
  • MEYLE : 37-15 523 0035/PD
  • MINTEX : MDC2361
  • NAPA : NBD5818
  • SKF : VKBD 91146 S2
  • TEXTAR : 92239203
  • VALEO : 672974
  • BOSCH : BD1733
