BOSCH

Bosch 0986479A49 Brake Disc

SKU: 0986479A49
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£51.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 105 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 04/2016
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 12/2014 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024

The Bosch 0986479A49 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 288 mm outer diameter, 33 mm brake disc thickness, 30 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

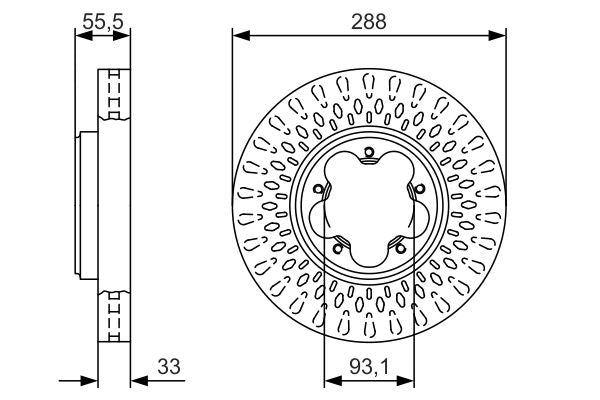

Function : Brake Disc
Outer Diameter [mm] : 288
Brake Disc Thickness [mm] : 33
Minimum thickness [mm] : 30
Height [mm] : 55.5
Bolt Hole Circle Ø [mm] : 111.5
Brake Disc Type : Vented
Centering Diameter [mm] : 93.1
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
  • Vendor BOSCH
  • SKU 0986479A49
  • Barcode 4047025362702
  • FORD : BK211125BB BK211125BC 1763885 1842994 1867728 2110008 2110010 2256036
  • APEC : DSK2975
  • APEC : SDK6307
  • BLUE PRINT : ADF124350
  • BORG & BECK : BBD6066S
  • BREMBO : 09.C240.10
  • DELPHI : BG9150
  • Fahren : FBD6307
  • FEBI BILSTEIN : 104495
  • FTE : 9071218
  • FTE : 9081077
  • HELLA : 8DD 355 120-111
  • MEYLE : 715 521 0039/PD
  • MINTEX : MDC2551
  • NAPA : NBD5319
  • National : NBD1795
  • SKF : VKBD 80123 V1
  • TEXTAR : 93260603
  • TRW : DF6514S
  • VALEO : 672837
  • BOSCH : BD2121
  • BOSCH : E1 90R-02C0448/1545
