BOSCH

Bosch 0986479A50 Brake Disc

SKU: 0986479A50

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£52.89 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TOURNEO CUSTOM V362 Bus (F3)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	09/2012 - 12/2015
2.2 TDCi	2198 CCM	125 HP	09/2012 - 12/2015
2.2 TDCi	2198 CCM	155 HP	09/2012 - 12/2015
2.0 EcoBlue	1995 CCM	105 HP	12/2015 - 12/2023
2.0 EcoBlue	1995 CCM	130 HP	12/2015 - 12/2023
2.0 EcoBlue	1995 CCM	170 HP	12/2015 - 12/2023

TRANSIT CUSTOM V362 Bus (F3)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	09/2012 - 06/2016
2.2 TDCi	2198 CCM	125 HP	09/2012 - 12/2015
2.2 TDCi	2198 CCM	155 HP	09/2012 - 12/2015
2.0 EcoBlue	1995 CCM	105 HP	12/2015 - 12/2023

TRANSIT CUSTOM V362 Van (FY, FZ)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	09/2012 - 06/2016
2.2 TDCi	2198 CCM	125 HP	09/2012 - 04/2016
2.2 TDCi	2198 CCM	155 HP	09/2012 - 12/2015
2.0 EcoBlue	1995 CCM	105 HP	12/2015 - 12/2023
2.0 EcoBlue	1995 CCM	130 HP	12/2015 - 12/2023
2.0 EcoBlue	1995 CCM	170 HP	12/2015 - 12/2023

TRANSIT V363 Platform/Chassis (FED, FFD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	155 HP	08/2013 - 12/2018
2.0 EcoBlue	1995 CCM	105 HP	From 03/2016
2.0 EcoBlue	1995 CCM	130 HP	From 03/2016

TRANSIT V363 Bus (FAD, FBD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	155 HP	12/2014 - 12/2018
2.0 EcoBlue	1995 CCM	105 HP	From 03/2016
2.0 EcoBlue	1995 CCM	130 HP	From 03/2016
2.0 EcoBlue	1995 CCM	170 HP	03/2016 - 06/2024

TRANSIT V363 Van (FCD, FDD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	155 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.0 EcoBlue	1995 CCM	130 HP	From 03/2016
2.0 EcoBlue	1995 CCM	105 HP	From 03/2016
2.0 EcoBlue	1995 CCM	170 HP	03/2016 - 06/2024

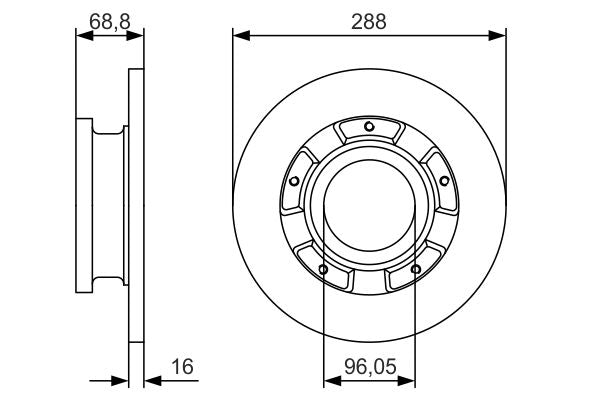

The Bosch 0986479A50 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 288 mm outer diameter, 16 mm brake disc thickness, 13 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 288

Brake Disc Thickness [mm] : 16

Minimum thickness [mm] : 13

Height [mm] : 68.8

Bolt Hole Circle Ø [mm] : 160

Brake Disc Type : solid

Centering Diameter [mm] : 96.05

Number of Holes : 5

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with ABS sensor ring

fulfils ECE standard : ECE-R90

APEC : DSK2977
APEC : SDK6736
BLUE PRINT : ADF124349
BORG & BECK : BBD6067S
BREMBO : 08.C242.20
BREMBO : 08.D505.20
DELPHI : BG4673
Fahren : FBD6736
FEBI BILSTEIN : 104494
FTE : 9071405
FTE : 9081335
HELLA : 8DD 355 120-181
MEYLE : 715 523 0024/PD
MINTEX : MDC2552
NAPA : NBD5447
SKF : VKBD 90258 S1
TEXTAR : 93260700
TEXTAR : 93260703
TRW : DF6510S
TRW : DF6558S
VALEO : 672967

Bosch 0986479A50 Brake Disc
