BOSCH

Bosch 0986479A51 Brake Disc

SKU: 0986479A51

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£60.65 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

IVECO

DAILY IV Platform/Chassis

Description	Cylinder Capacity	Horse Power	Year
29L10	2287 CCM	95 HP	05/2006 - 08/2011
29L12	2287 CCM	116 HP	05/2006 - 08/2011
29L14	2287 CCM	136 HP	05/2006 - 08/2011
35C10, 35S10	2287 CCM	95 HP	05/2006 - 08/2011
35C12, 35S12	2287 CCM	116 HP	05/2006 - 08/2011
35C18, 35S18	2998 CCM	176 HP	05/2006 - 08/2011
35C14, 35S14, 35S14 /P	2287 CCM	136 HP	05/2006 - 08/2011

DAILY IV Bus

Description	Cylinder Capacity	Horse Power	Year
35S14, 35S14 /P	2287 CCM	136 HP	05/2006 - 08/2011

DAILY IV Van

Description	Cylinder Capacity	Horse Power	Year
29L10 V	2287 CCM	95 HP	05/2006 - 08/2011
29L14 C, 29L14 C/P, 29L14 V, 29L14 V/P	2287 CCM	136 HP	05/2006 - 08/2011
29L12 V, 29L12 V/P	2287 CCM	116 HP	05/2006 - 08/2011
35C10, 35S10	2287 CCM	95 HP	05/2006 - 08/2011
35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P	2287 CCM	116 HP	05/2006 - 08/2011
35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P	2998 CCM	176 HP	05/2006 - 08/2011
35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,...	2287 CCM	136 HP	05/2006 - 08/2011

DAILY V Platform/Chassis

Description	Cylinder Capacity	Horse Power	Year
26L11, 29L11, 29S11, 35C11D, 35S11, 40C11	2287 CCM	106 HP	09/2011 - 02/2014
29S13, 29L13, 29L13D, 35S13, 35C13D, 40C13	2287 CCM	126 HP	09/2011 - 02/2014
35C15, 35S15, 40C15, 45C15, 50C15, 60C15, 65C15, 70C15	2998 CCM	146 HP	09/2011 - 02/2014
35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C17	2998 CCM	170 HP	09/2011 - 02/2014
35C21, 35S21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21	2998 CCM	205 HP	09/2011 - 02/2014
29L15, 35S15, 35C15, 40C15, 50C15	2287 CCM	146 HP	09/2011 - 02/2014
NaturalPower 35S14, 35C14, 40C14, 50C14, 60C14, 65C14,...	2998 CCM	136 HP	09/2011 - 02/2014

DAILY V Van

Description	Cylinder Capacity	Horse Power	Year
35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C17	2998 CCM	170 HP	09/2011 - 02/2014
29S11, 29L11, 35C11, 35S11, 40C11	2287 CCM	106 HP	09/2011 - 02/2014
29S13, 29L13, 35C13, 35S13, 40C13, 40S13	2287 CCM	126 HP	09/2011 - 02/2014
29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V	2287 CCM	146 HP	09/2011 - 02/2014
35C21 V, 35S21 V, 40C21 V, 45C21 V, 50C21 V	2998 CCM	204 HP	09/2011 - 02/2014
35S60E Electric		82 HP	09/2011 - 02/2014
NaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14	2998 CCM	136 HP	09/2011 - 02/2014

The Bosch 0986479A51 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 296 mm outer diameter, 16 mm brake disc thickness, 13 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

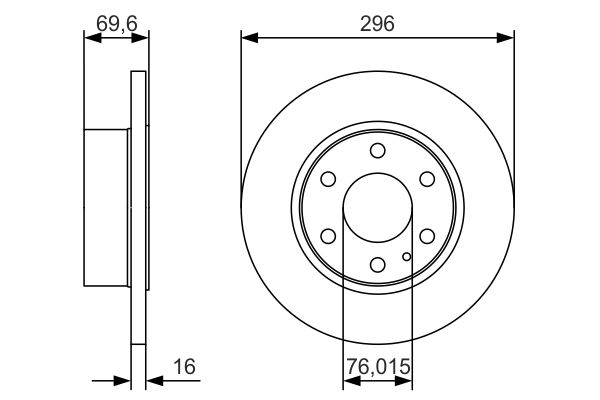

Function : Brake Disc

Outer Diameter [mm] : 296

Brake Disc Thickness [mm] : 16

Minimum thickness [mm] : 13

Height [mm] : 69.6

Bolt Hole Circle Ø [mm] : 125

Brake Disc Type : solid

Centering Diameter [mm] : 76.02

Number of Holes : 6

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.6

Bosch 0986479A51 Brake Disc
