BOSCH

Bosch 0986479A59 Brake Disc

SKU: 0986479A59
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£38.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 250 (176.044) 1991 CCM 211 HP 06/2012 - 05/2018
A 250 4-matic (176.046) 1991 CCM 211 HP 06/2013 - 05/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 250 4-matic (117.346) 1991 CCM 211 HP 07/2013 - 03/2019
CLA 250 (117.344) 1991 CCM 211 HP 01/2013 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 250 (117.944) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 250 4-matic (117.951) 1991 CCM 218 HP 07/2015 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 250 (156.944) 1991 CCM 211 HP 12/2013 - 12/2019
INFINITI
Q30
Description Cylinder Capacity Horse Power Year
2.0 T AWD 1991 CCM 211 HP From 11/2015
2.2 D 2143 CCM 170 HP From 11/2015
2.2 D AWD 2143 CCM 170 HP From 11/2015
2.0 T 1991 CCM 211 HP From 11/2015
QX30
Description Cylinder Capacity Horse Power Year
2.2 D AWD 2143 CCM 170 HP From 04/2016
2.0 AWD 1991 CCM 211 HP From 09/2016

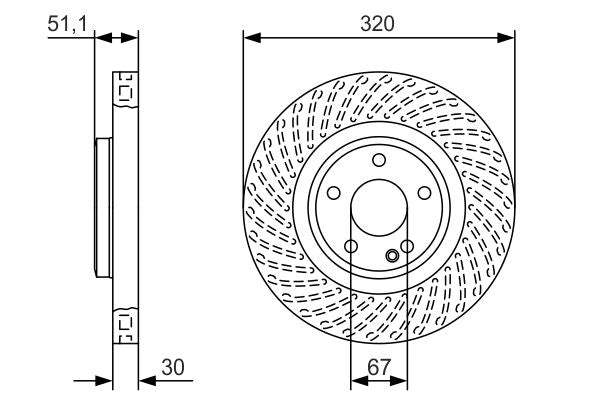

The Bosch 0986479A59 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 30 mm brake disc thickness, 27.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 27.4
Height [mm] : 51.1
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479A59
  • Barcode 4047025362788
  • MERCEDES-BENZ : A 246 421 26 12 246 421 26 12
  • INFINITI : 402065DH0A
  • APEC : DSK3229
  • BLUE PRINT : ADN143184
  • BORG & BECK : BBD5324
  • BREMBO : 09.B807.41
  • DELPHI : BG4659C
  • DELPHI : BG9347C
  • FEBI BILSTEIN : 170756
  • FTE : 9071201
  • HELLA : 8DD 355 119-701
  • MEYLE : 083 521 0020/PD
  • MINTEX : MDC2548
  • National : NBD2162
  • SKF : VKBD 81225 V1
  • TEXTAR : 92258003
  • TRW : DF6631
  • VALEO : 673684
  • BOSCH : BD2130
  • BOSCH : E1 90R-02C0074/1567
