BOSCH

Bosch 0986479A60 Brake Disc

SKU: 0986479A60
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£64.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 250 (176.044) 1991 CCM 211 HP 06/2012 - 05/2018
A 220 CDI (176.003) 2143 CCM 170 HP 09/2012 - 05/2018
A 250 4-matic (176.046) 1991 CCM 211 HP 06/2013 - 05/2018
A 220 CDI 4-matic (176.005) 2143 CCM 170 HP 02/2014 - 05/2018
A 220 CDI (176.003) 2143 CCM 163 HP 01/2014 - 05/2018
A 220 4-matic (176.047) 1991 CCM 184 HP 05/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 220 4-matic (246.247) 1991 CCM 184 HP 05/2013 - 12/2018
B 250 (246.244) 1991 CCM 211 HP 05/2012 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 170 HP 11/2011 - 12/2018
B 250 4-matic (246.246) 1991 CCM 211 HP 08/2014 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 177 HP 08/2014 - 12/2018
B 220 CDI / d 4-matic (246.205) 2143 CCM 177 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 250 4-matic (117.346) 1991 CCM 211 HP 07/2013 - 03/2019
CLA 250 (117.344) 1991 CCM 211 HP 01/2013 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 170 HP 01/2013 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 163 HP 01/2013 - 03/2019
CLA 220 CDI 4-matic (117.305) 2143 CCM 170 HP 07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 163 HP 08/2014 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 177 HP 09/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 177 HP 09/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 250 (117.944) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 250 4-matic (117.946) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 163 HP 01/2015 - 03/2019
CLA 250 4-matic (117.951) 1991 CCM 218 HP 07/2015 - 03/2019
CLA 220 4-matic (117.947) 1991 CCM 184 HP 04/2016 - 03/2019
CLA 220 d (117.903) 2143 CCM 170 HP 07/2018 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 220 CDI (156.903) 2143 CCM 170 HP 12/2013 - 05/2019
GLA 220 CDI / d (156.903) 2143 CCM 163 HP 12/2013 - 05/2019
GLA 220 CDI 4-matic (156.905) 2143 CCM 170 HP 12/2013 - 12/2019
GLA 220 CDI / d 4-matic (156.905) 2143 CCM 163 HP 12/2013 - 12/2019
GLA 250 (156.944) 1991 CCM 211 HP 12/2013 - 12/2019
GLA 220 d (156.903) 2143 CCM 177 HP 07/2015 - 05/2019
GLA 220 d 4-matic (156.905) 2143 CCM 177 HP 07/2015 - 12/2019

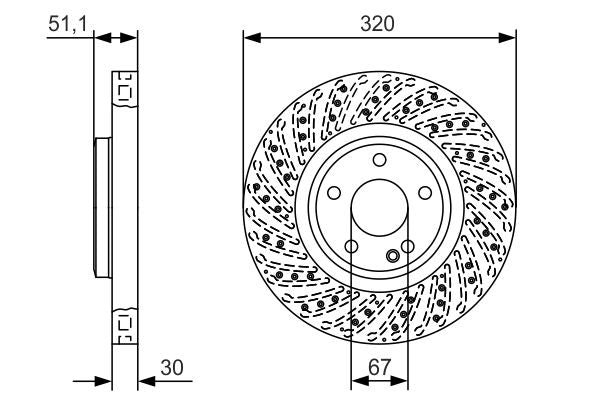

The Bosch 0986479A60 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 30 mm brake disc thickness, 28 mm minimum thickness, and perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 28
Height [mm] : 51.1
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Perforated
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479A60
  • Barcode 4047025362795
  • MERCEDES-BENZ : A 246 421 27 12 A 246 421 27 12 07 246 421 27 12 246 421 27 12 07
  • APEC : DSK3280
  • APEC : SDK6936
  • BLUE PRINT : ADU174395
  • BORG & BECK : BBD5355
  • BREMBO : 09.B807.51
  • DELPHI : BG4658C
  • Fahren : FBD6936
  • FEBI BILSTEIN : 107501
  • FTE : 9071215
  • FTE : 9081117
  • HELLA : 8DD 355 120-351
  • MEYLE : 083 521 0021/PD
  • MINTEX : MDC2569
  • NAPA : NBD5488
  • National : NBD2074
  • SKF : VKBD 81120 V1
  • TEXTAR : 92262105
  • TRW : DF6633S
  • VALEO : 673283
  • BOSCH : BD2131
  • BOSCH : E1 90R-02C0593/1822
