BOSCH

Bosch 0986479A62 Brake Disc

SKU: 0986479A62
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£79.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE150_, ZWE150R) 1798 CCM 136 HP 09/2010 - 09/2012
AURIS (_E18_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE180_, NDE180R) 1364 CCM 90 HP 10/2012 - 12/2018
1.6 (ZRE181_, ZRE185_, ZRE185R, ZRE181R) 1598 CCM 132 HP 10/2012 - 12/2018
1.3 Dual-VVTi (NRE180_, NRE180R) 1329 CCM 99 HP 10/2012 - 12/2018
1.8 Hybrid (ZWE186_, ZWE186R) 1798 CCM 136 HP 10/2012 - 12/2018
1.2 (NRE185_, NRE185R) 1197 CCM 116 HP 03/2015 - 12/2018
1.6 D4-D (WWE185_) 1598 CCM 112 HP 04/2015 - 12/2018
AURIS VAN Hatchback Van (_E18_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE180_) 1364 CCM 90 HP 03/2013 - 12/2018
AURIS Estate (_E18_)
Description Cylinder Capacity Horse Power Year
1.3 Dual-VVTi (NRE180_) 1329 CCM 99 HP 07/2013 - 12/2018
1.6 (ZRE185_) 1598 CCM 132 HP 07/2013 - 12/2018
1.4 D-4D (NDE180_) 1364 CCM 90 HP 07/2013 - 12/2018
1.8 Hybrid (ZWE186_, ZWE186R, ZWE186H) 1798 CCM 136 HP 07/2013 - 12/2018
1.2 (NRE185_, NRE185R, NRE185H) 1197 CCM 116 HP 03/2015 - 12/2018
1.6 D4-D (WWE185_) 1598 CCM 112 HP 04/2015 - 12/2018
COROLLA Saloon (_E18_, ZRE1_)
Description Cylinder Capacity Horse Power Year
1.3 Dual-VVTi (NRE180_) 1329 CCM 99 HP 06/2013 - 12/2018
1.4 D-4D (NDE180_, NDE170_) 1364 CCM 90 HP 06/2013 - 12/2018
1.6 (ZRE181_) 1598 CCM 132 HP 06/2013 - 12/2018
1.8 VVTi (ZRE172, ZRE182) 1798 CCM 140 HP 06/2013 - 08/2019
1.6 (ZRE171, ZRE181) 1598 CCM 122 HP 06/2013 - 12/2018

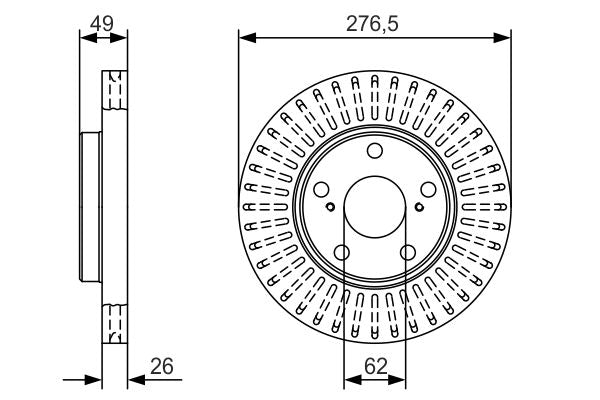

The Bosch 0986479A62 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 277 mm outer diameter, 26 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 277
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 23
Height [mm] : 49.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.6
  • Vendor BOSCH
  • SKU 0986479A62
  • Barcode 4047025355162
  • TOYOTA : 43512 02330
  • APEC : DSK3067
  • APEC : SDK6785
  • BLUE PRINT : ADT343240
  • BORG & BECK : BBD5330
  • BREMBO : 09.C648.11
  • DELPHI : BG4211C
  • DELPHI : BG4711C
  • FEBI BILSTEIN : 108406
  • FTE : 9072573
  • FTE : 9082251
  • HELLA : 8DD 355 119-661
  • MEYLE : 30-15 521 0117
  • MEYLE : 30-15 521 0117/PD
  • MINTEX : MDC2544
  • NAPA : NBD5150
  • National : NBD1879
  • SKF : VKBD 80160 V2
  • TEXTAR : 92257703
  • TRW : DF4917
  • TRW : DF6679
  • VALEO : 672996
  • VALEO : 673311
  • BOSCH : BD2133
  • BOSCH : E1 90R-02C0349/1342
