BOSCH

Bosch 0986479A65 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479A65

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£57.22 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
LAND CRUISER PRADO (_J15_)
Description Cylinder Capacity Horse Power Year
4.0 V6 VVT-i (GRJ150_, GRJ125_, GRJ150) 3956 CCM 282 HP From 08/2009
3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R) 2982 CCM 190 HP From 08/2009
2.7 (TRJ150_, TRJ155_, TRJ150R, TRJ150W) 2694 CCM 163 HP From 08/2009
3.0 D-4D (KDJ150_, KDJ150, KDJ155) 2982 CCM 173 HP From 08/2009
4.0 V6 VVTi (GRJ150_, GRJ150R, GRJ150W) 3956 CCM 249 HP From 11/2012
4.0 V6 Dual VVTi (GRJ150_) 3956 CCM 279 HP From 08/2009
4.0 V6 VVTi (GRJ150) 3956 CCM 275 HP From 08/2009
2.8 D-4D (GDJ150_, GDJ155_, GDJ150, GDJ151) 2755 CCM 177 HP From 06/2015
3.5 (GRJ152_) 3456 CCM 280 HP From 09/2015
2.8 D-4D (GDJ150, GDJ155) 2755 CCM 200 HP From 10/2018
2.8 D-4D (GDJ155, GDJ150) 2755 CCM 204 HP From 07/2020
2.8 D-4D 2755 CCM 230 HP From 03/2024
LAND CRUISER VAN (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D4d 4WD (KDJ155, KDJ150) 2982 CCM 190 HP From 01/2011

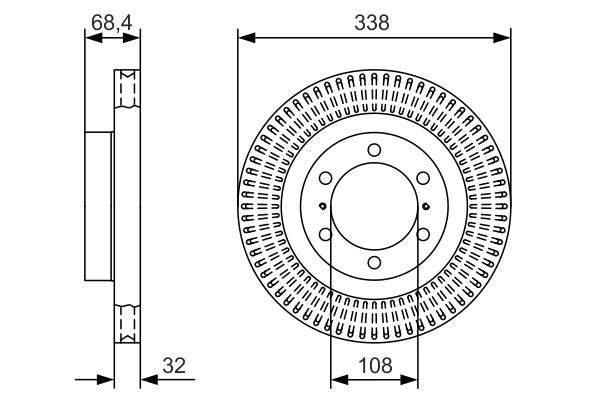

The Bosch 0986479A65 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 338 mm outer diameter, 32 mm brake disc thickness, 29 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 338
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 29
Height [mm] : 68.4
Bolt Hole Circle Ø [mm] : 139.7
Brake Disc Type : Vented
Centering Diameter [mm] : 108
Number of Holes : 6
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479A65
  • Barcode 4047025362825
  • TOYOTA : 43512 60190 43512 60191
  • LEXUS : 4351260190 4351260191
  • APEC : DSK2841
  • BLUE PRINT : ADT343282
  • BORG & BECK : BBD5942S
  • BREMBO : 09.B634.10
  • BREMBO : 09.B634.11
  • BREMBO : 09.B634.1X
  • DELPHI : BG9200C
  • FEBI BILSTEIN : 108458
  • HELLA : 8DD 355 129-861
  • MEYLE : 30-15 521 0127/PD
  • MINTEX : MDC2273
  • NAPA : NBD5809
  • National : NBD1766
  • SKF : VKBD 81069 V1
  • TEXTAR : 92223903
  • TRW : DF7880S
  • VALEO : 673236
  • BOSCH : BD2136
  • BOSCH : E1 90R-02C0074/1643
